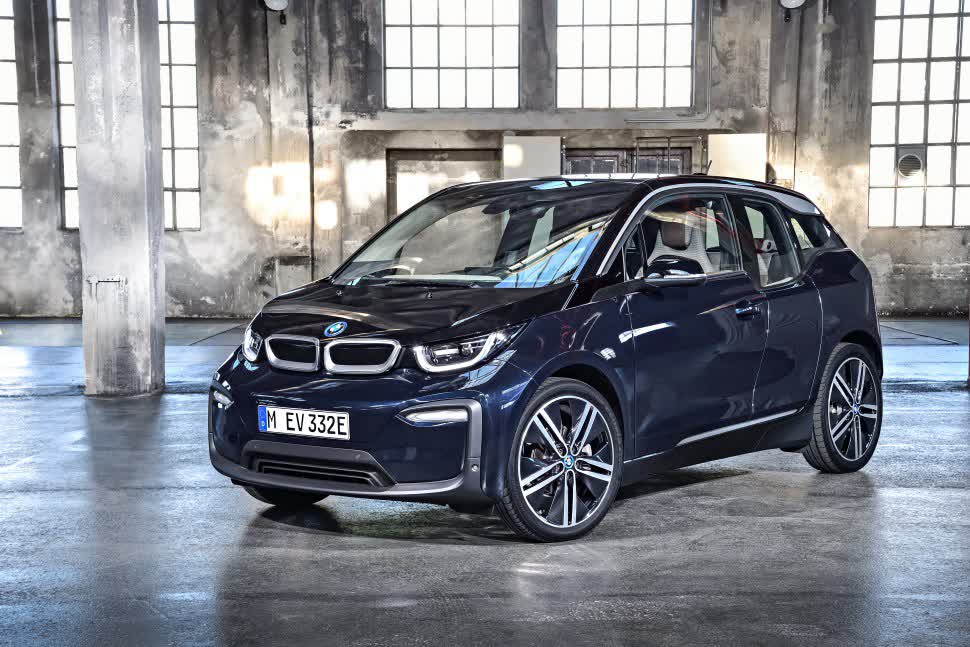

Everything you need to know about specifications and performance - BMW i3 2017 - 33.2 kWh (170 Hp) Range Extender
Overview:
What is the engine capacity of a BMW i3 2017?
The engine capacity of the BMW i3 2017 is 647.
BMW i3 2017 How many horsepower?
The engine power of the BMW i3 2017 is 38 Hp @ 5000 rpm..
What is the BMW i3 2017 engine?
BMW i3 2017 engine is W20K06U0. (Click to see other cars using the same engine)
How powerful is the electrical system in the BMW i3 2017?
The power of the electrical system in the BMW i3 2017 is 170 Hp @ 4800 rpm. hp.
How much gasoline does a BMW i3 2017 consume?
The BMW i3 2017 consumes 0.6 liters of gasoline per 100 km
General:
Brand: BMW
Model: i3
Generation: l01, facelift 2017
Modification (Engine): 33.2 kWh (170 Hp) Range Extender
Start of production: November, 2017
End of production: November, 2018
Powertrain Architecture:Plug-In Hybrid Electric Vehicles (PHEVs)
Body type:Hatchback
Seats: 4
Doors: 5
Engine:
Power: 38 hp @ 5000 rpm.
Power per litre: 58.7 hp/l
Torque: 56 nm @ 4500 rpm.
Engine Model/Code:W20K06U0
Engine displacement: 647
Number of cylinders: 2
Engine configuration: Inline
Number of valves per cylinder: 4
Engine aspiration: Naturally aspirated Engine
Engine oil capacity: 2.6 l
Engine layout: Rear, Transverse
Cylinder Bore: 79 mm
Piston Stroke: 66 mm
Compression ratio: 10.6:1
Performance:
Fuel Type: Petrol / electricity
Fuel consumption (economy) - combined (NEDC): 0.6 l/100 km
Fuel consumption (economy) - combined: 0.6 l/100 km
Emission standard: Euro 6
Acceleration 0 - 100 km/h: 8.1 sec
Acceleration 0 - 62 mph: 8.1 sec
Maximum speed: 150 km/h
Weight-to-power ratio: 8 kg/Hp, 124.5 Hp/tonne
Weight-to-torque ratio: 5.5 kg/Nm, 183.2 Nm/tonne
Acceleration 0 - 60 mph: 7.7 sec
Electric system:
Net (usable) battery capacity: 27.2 kWh
Gross battery capacity: 33.2 kWh
Battery technology: Lithium-ion (Li-Ion)
Battery location: Below the floor
System power: 170 hp @ 4800 rpm.
System torque: 250 nm
All-electric range: 190-200 km
Electric motor power: 170 hp @ 4800 rpm.
Electric motor Torque: 250 nm @ 0 rpm.
Average Energy consumption: 11.5-11.9 kWh/100 km
Electric motor location: Rear axle, Transverse
All-electric range (WLTP): 190-200 km
Battery weight: 270 kg
Electric motor model/code: IB1P23M0
Battery voltage: 353 V
Average Energy consumption (NEDC): 11.5-11.9 kWh/100 km
All-electric range (NEDC): 225-235 km
Maximum revolutions of the electric motor: 12000 rpm.
Recuperation output: 50 kW
Space:
Kerb Weight (kg): 1365
Max. weight (kg): 1760
Max load (kg): 395
Trunk (boot) space - maximum: 1100 l
Trunk (boot) space - minimum: 260 l
Fuel tank capacity: 9 l
dimensions:
Length: 4011 mm
Width: 1775 mm
Height: 1598 mm
wheelbase: 2570 mm
Front overhang: 715 mm
Rear overhang: 726 mm
Ride height (ground clearance): 139 mm
Minimum turning circle (turning diameter): 9.86 m
Powertrain, Suspension and Brakes:
Drivetrain Architecture: The Internal combustion Engine (ICE) drives the generator only, with no mechanical connection to the drive. An electric motor drives the rear wheels.
Drive wheel: Rear wheel drive
Number of gears and type of gearbox: 1 gears, automatic transmission
Front brakes: Ventilated discs
Rear brakes: Ventilated discs
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Electric Steering
Tires size: Front wheel tires: 155/70 R19; 155/60 R20
Wheel rims size: Front wheel rims: 5J x 19; 5J x 20
Front suspension: Independent type McPherson
Rear suspension: Independent multi-link suspension
