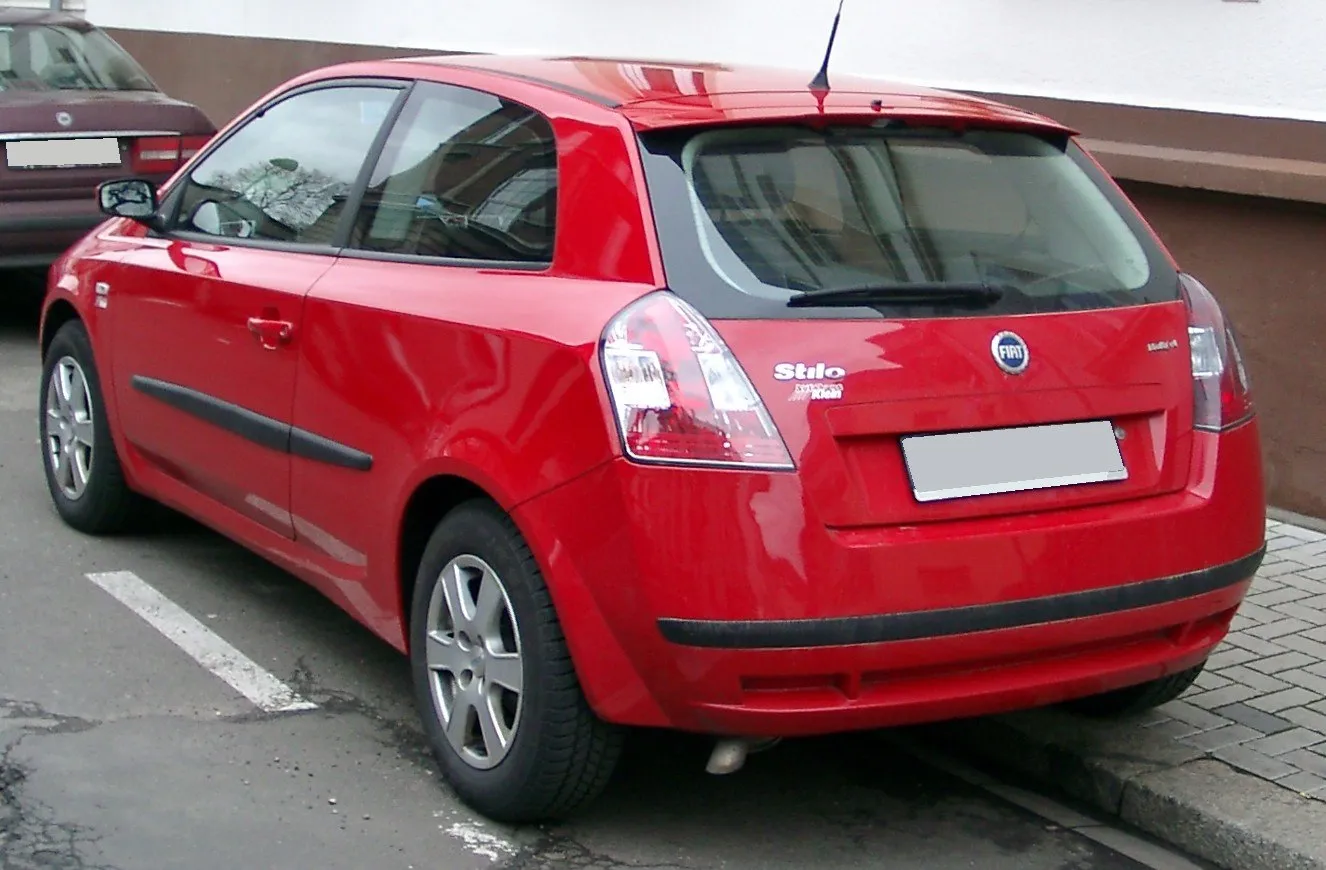

Everything you need to know about specifications and performance - Fiat Stilo 2003 - 1.4 i 16V (95 Hp)

gray symbol cars image

Overview:

What is the engine capacity of a Fiat Stilo 2003?
The engine capacity of the Fiat Stilo 2003 is 1368.

Fiat Stilo 2003 How many horsepower?
The engine power of the Fiat Stilo 2003 is 95 Hp @ 5800 rpm..

What is the Fiat Stilo 2003 engine?
Fiat Stilo 2003 engine is 843A1000. (Click to see other cars using the same engine)

How much gasoline does a Fiat Stilo 2003 consume?
The Fiat Stilo 2003 consumes 6.5 liters of gasoline per 100 km

General:

Brand: Fiat
Model: Stilo
Generation: 3-door, facelift 2003
Modification (Engine): 1.4 i 16V (95 Hp)
Start of production: 2003
End of production: 2005
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 3

Engine:

Power: 95 hp @ 5800 rpm.
Power per litre: 69.4 hp/l
Torque: 128 nm @ 4500 rpm.
Engine Model/Code:843A1000
Engine displacement: 1368
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 2.8 l
Coolant: 5.3 l
Engine layout: Front, Transverse
Cylinder Bore: 72 mm
Piston Stroke: 84 mm
Compression ratio: 11.2:1

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 8.2 l/100 km
Fuel consumption (economy) - extra urban: 5.5 l/100 km
Fuel consumption (economy) - combined: 6.5 l/100 km
Acceleration 0 - 100 km/h: 12 sec
Acceleration 0 - 62 mph: 12 sec
Maximum speed: 180 km/h
Weight-to-power ratio: 11.5 kg/Hp, 87.2 Hp/tonne
Weight-to-torque ratio: 8.5 kg/Nm, 117.4 Nm/tonne
Acceleration 0 - 60 mph: 11.4 sec

Space:

Kerb Weight (kg): 1090
Max. weight (kg): 1650
Max load (kg): 560
Trunk (boot) space - maximum: 1000 l
Trunk (boot) space - minimum: 305 l
Fuel tank capacity: 58 l

dimensions:

Length: 4180 mm
Width: 1785 mm
Height: 1475 mm
wheelbase: 2600 mm
Front track: 1515 mm
Rear (Back) track: 1510 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 6 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Tires size: 195/65 R15
Wheel rims size: 6.5J x 15
Front suspension: Spring Strut
Rear suspension: Coil Spring
