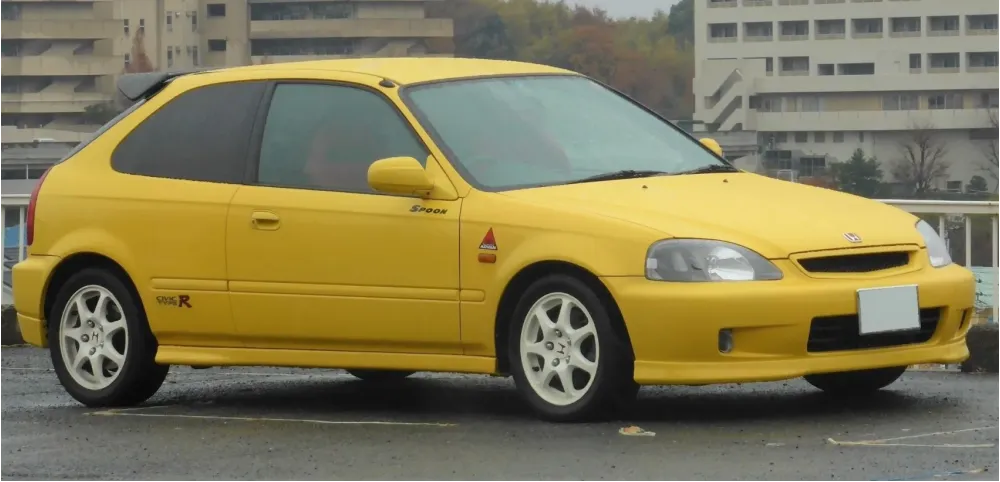

Honda Civic Type R EK9, facelift 1998 1.6 (185 Hp)
Overall Rating
Honda Civic Type R:
The Honda Civic Type R is a series of hot hatchback and sports sedan models based on the Civic, developed and produced by Honda since September 1997. The first Civic Type R was the third model to receive Honda's Type R badge. Type R versions of the Civic typically feature a lightened and stiffened body, specially tuned engine, and upgraded brakes and chassis, and are offered only in five- or six-speed manual transmission. Like other Type R models, red is used in the background of the Honda badge to distinguish it from other models....(Read more on Wikipedia)
EK9, facelift 1998 Overview:
Honda Civic Type R (EK9, facelift 1998). With 160 Nm of torque, it offers ample pulling power. Weighing only 1050 kg, it’s quite light. Front‑wheel drive delivers efficiency and easy handling. Acceleration is good (0–100 km/h in 6.6 s). The top speed reaches 225 km/h. A compact car with a rear door that swings upward to provide access to the cargo area. Seating for 4 makes it ideal for daily use.
1.6 (185 Hp) Verdict:
Performance Verdict
The legendary B16B engine delivers an exhilarating, high-revving performance, characterized by its aggressive VTEC engagement and impressive power-to-weight ratio, making it a true driver's car with incredible responsiveness.
Fuel Economy
Fuel economy is secondary to performance; the B16B consumes significant fuel when driven spiritedly, though it can be reasonable during relaxed cruising, it's not designed for efficiency.
Pros and Cons:
Pros:
- • Iconic B16B VTEC engine with incredible power delivery
- • Superb handling and chassis dynamics for a FWD car
- • Lightweight design contributes to agility
- • Raw and engaging driving experience
- • Strong aftermarket support and tuning potential
- • Classic JDM appeal and strong enthusiast following
Cons:
- • Very stiff ride quality, not ideal for daily commuting
- • High interior noise levels, especially at speed
- • Lacks modern safety features and crash protection
- • High fuel consumption when driven hard
- • Prone to theft due to desirability
- • Limited practicality and comfort for long journeys
Specifications:
Specifications are compared to those of the previous generation(EK9: 1997 - 1998).
| General: | |
|---|---|
| Brand: | Honda |
| Model: | Civic Type R |
| Generation: | EK9, facelift 1998 |
| Modification (Engine): | 1.6 (185 Hp) |
| Start of production: | 1998 |
| End of production: | 2000 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Hatchback |
| Seats: | 4 |
| Doors: | 3 |
| Engine: | |
|---|---|
| Power: | 185 Hp @ 8200 rpm. |
| Power per litre: | 116 Hp/l |
| Torque: | 160 Nm @ 7500 rpm. |
| Engine Model/Code: | B16B [Same engine] More details about the engine B16B |
| Engine displacement: | 1595 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC, VTEC |
| Engine oil capacity: | 4 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 81 mm mm |
| Piston Stroke: | 77.4 mm mm |
| Compression ratio: | 10.8:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Acceleration 0 - 100 km/h: | 6.6 sec |
| Acceleration 0 - 62 mph: | 6.6 sec |
| Maximum speed: | 225 km/h |
| Weight-to-power ratio: | 5.7 kg/Hp, 176.2 Hp/tonne |
| Weight-to-torque ratio: | 6.6 kg/Nm, 152.4 Nm/tonne |
| Acceleration 0 - 60 mph: | 6.3 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1050 |
| Fuel tank capacity: | 45 l |
| Size: | |
|---|---|
| Length: | 4185 mm mm [5mm more] |
| Width: | 1695 mm mm [Same width.] |
| Height: | 1360 mm mm [Same height.] |
| Wheelbase: | 2620 mm mm [Same wheelbase.] |
| Front track: | 1480 mm |
| Rear (Back) track: | 1480 mm |
| Ride height (ground clearance): | 135 mm |
| Minimum turning circle (turning diameter): | 10.8 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs, 262 mm [Best for performance and cooling.] |
| Rear brakes | Disc, 239 mm [above average] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/55 R15 |
| Wheel rims size | 6J x 15 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
