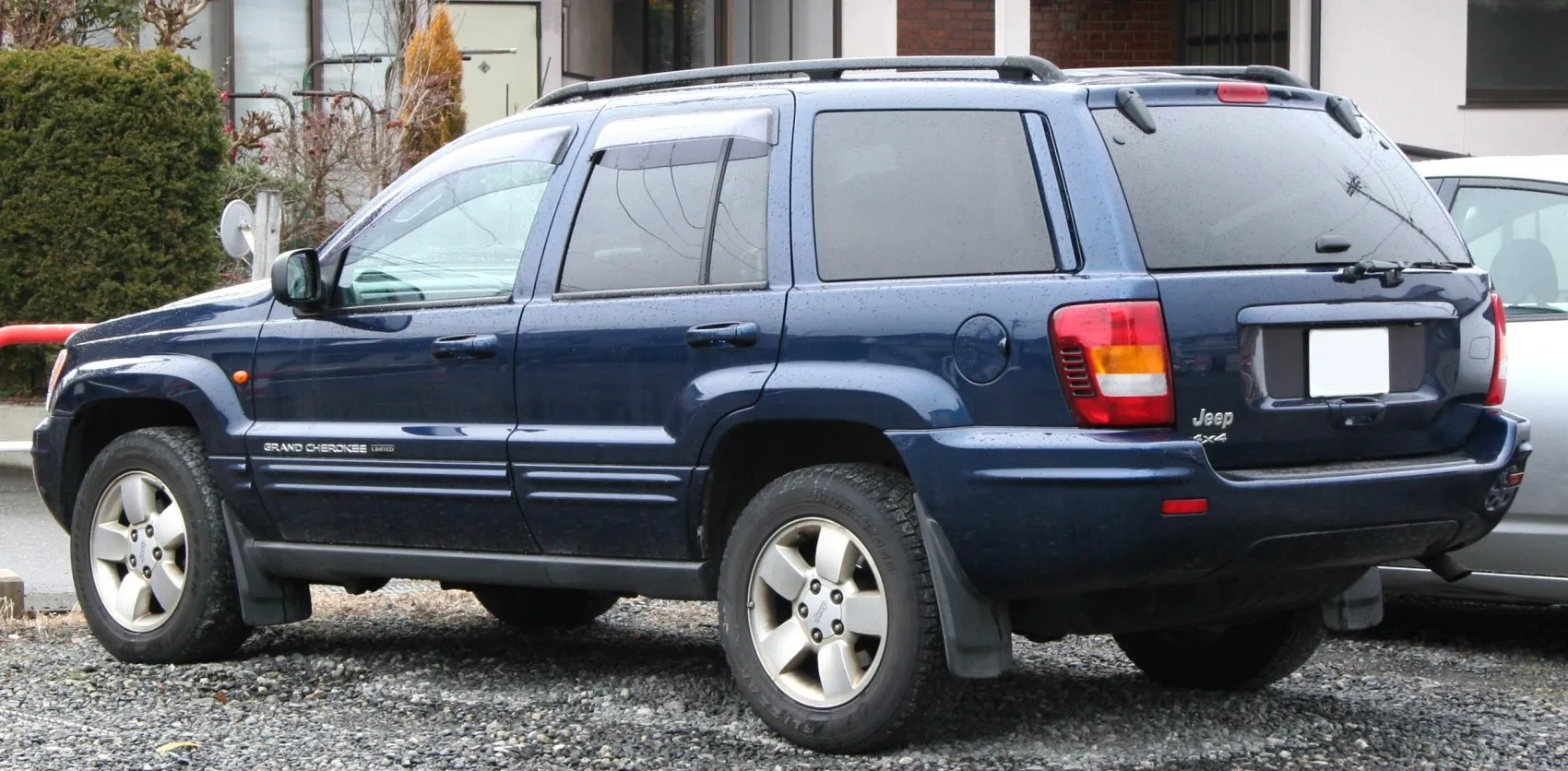

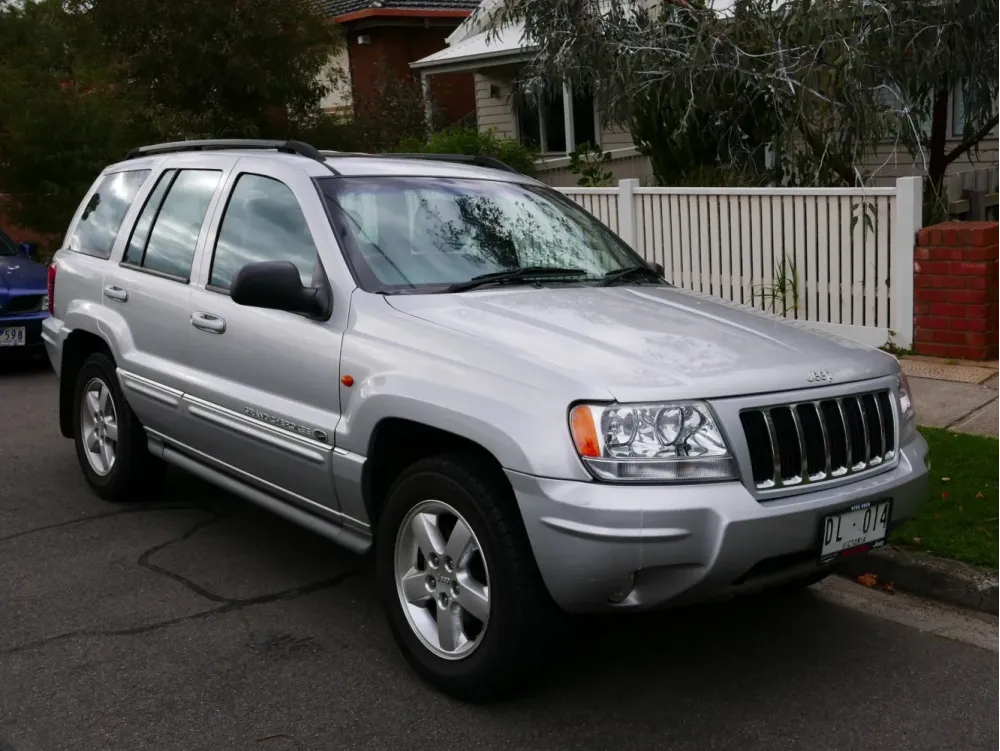

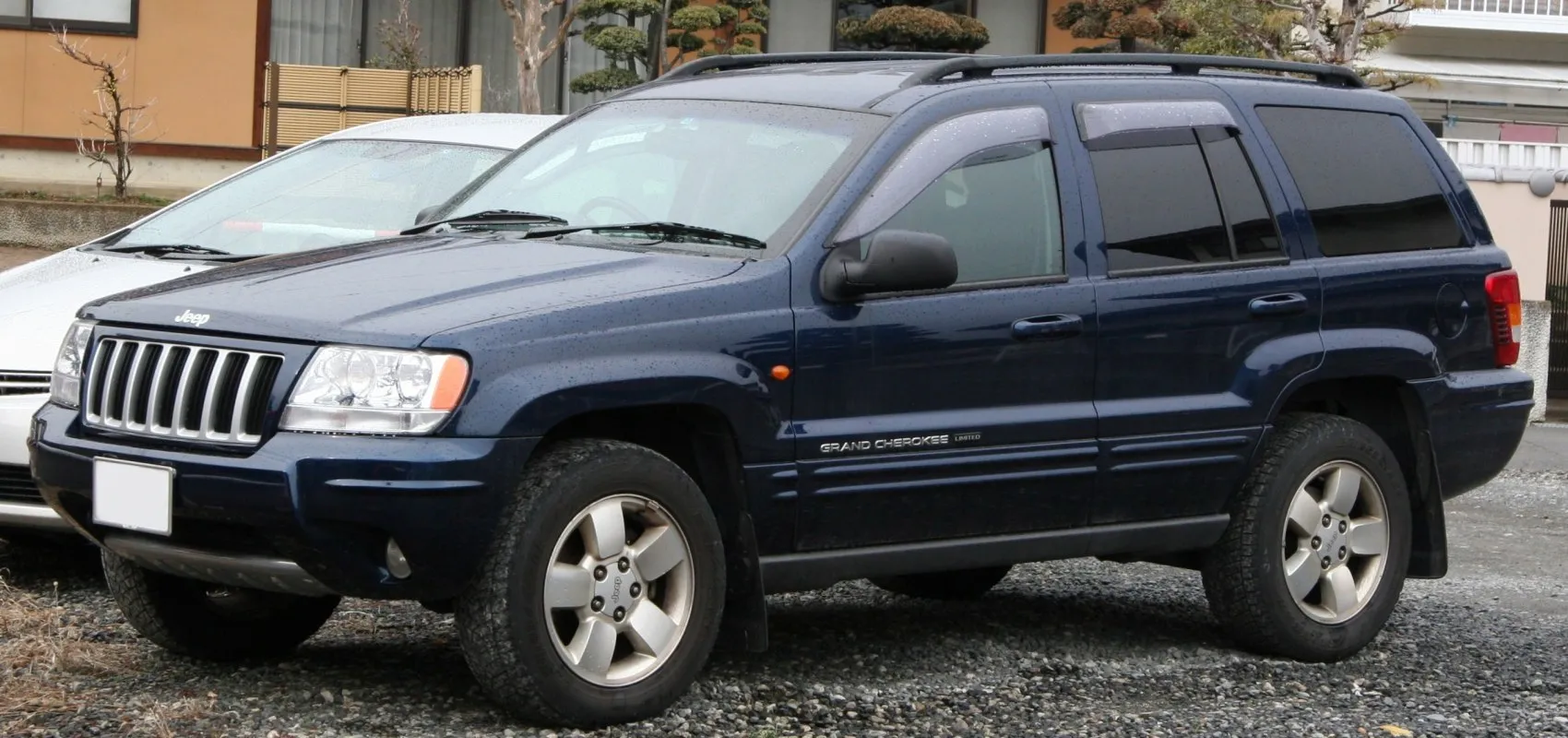

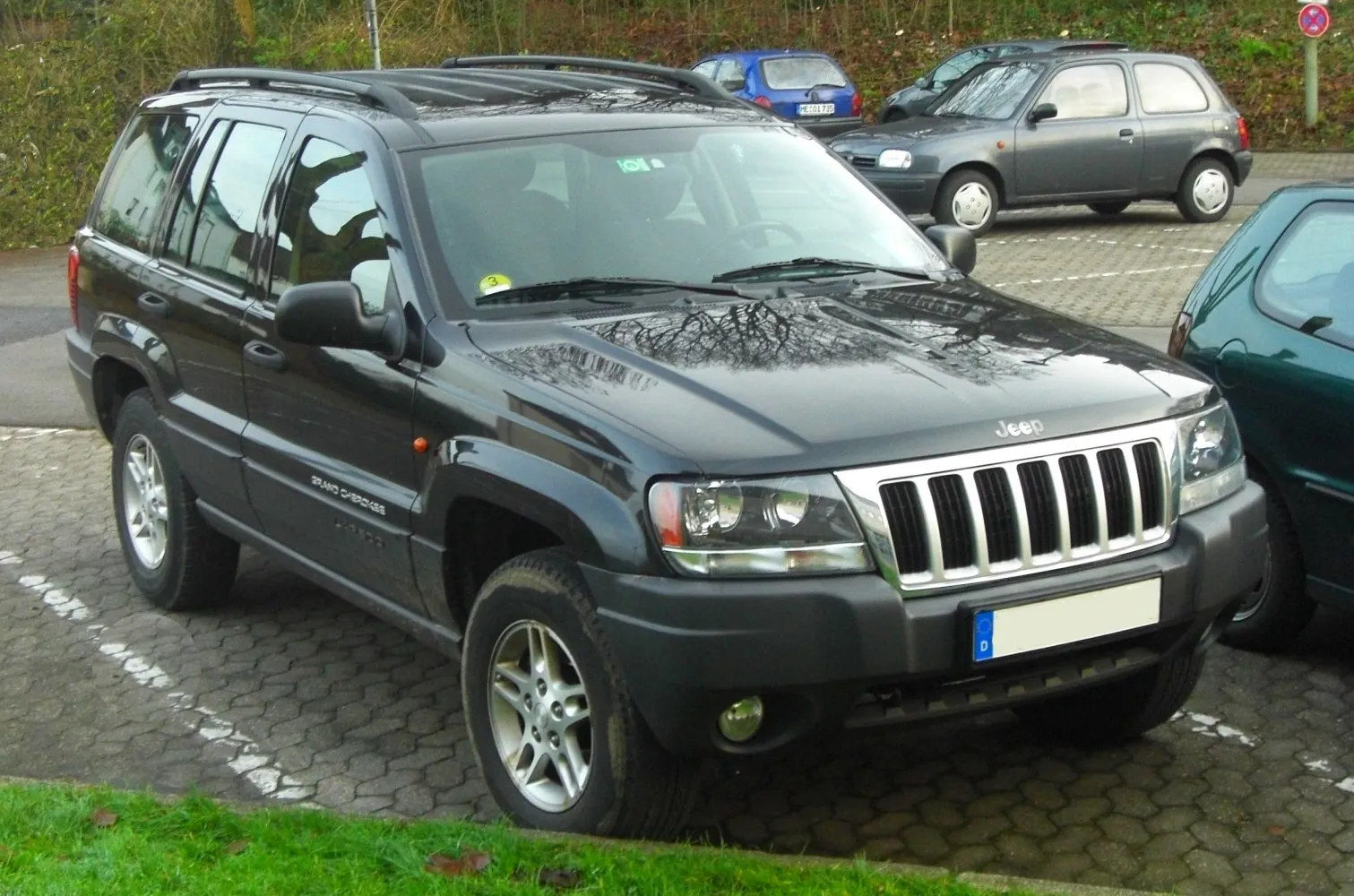

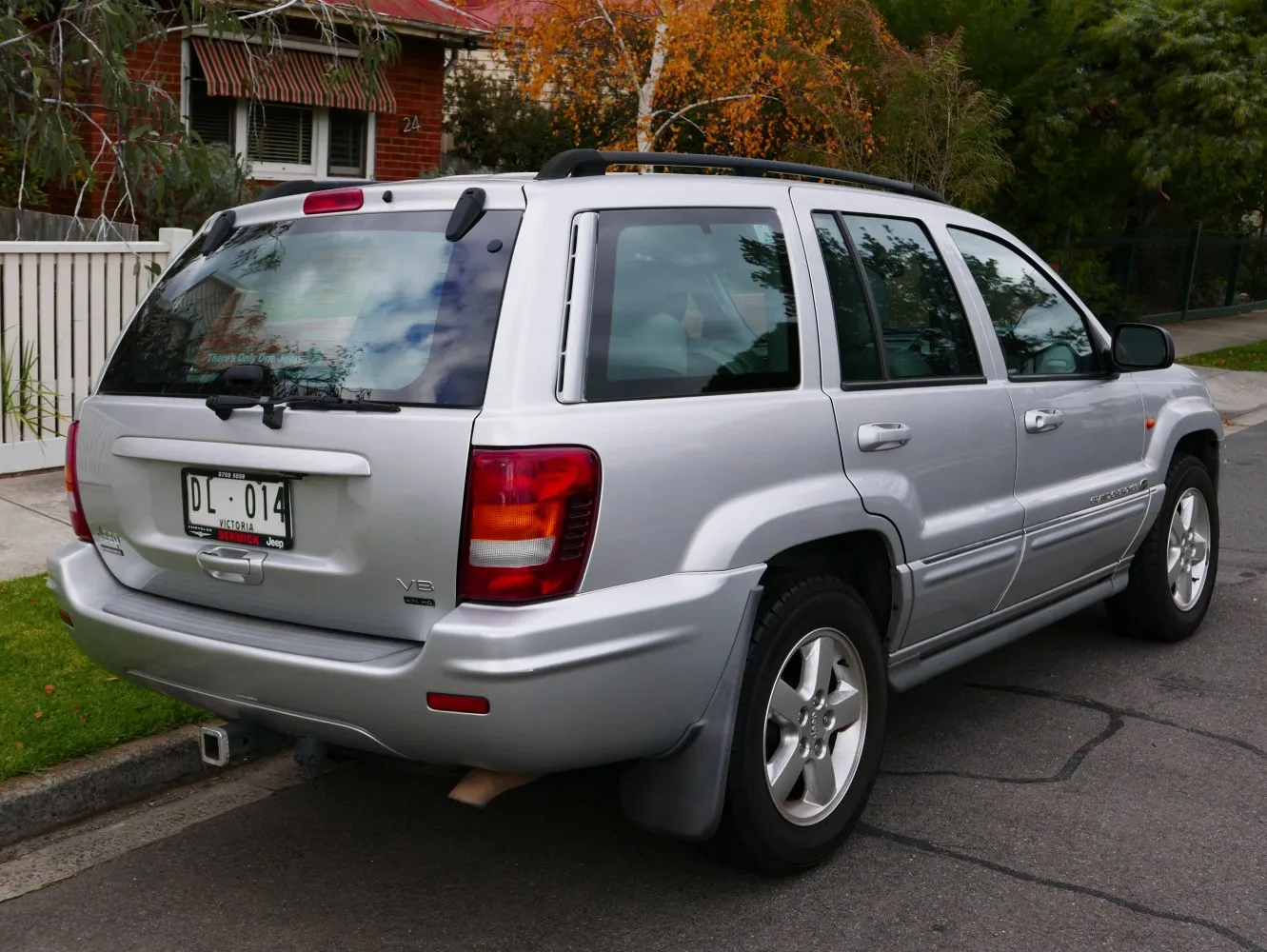

Jeep Grand Cherokee II (WJ, facelift 2003) 4.0 (195 Hp) 4x4 Automatic
Jeep Grand Cherokee:
The Jeep Grand Cherokee is a range of mid-sized sport utility vehicles produced by American manufacturer Jeep. At its introduction, while most SUVs were still manufactured with body-on-frame construction, the Grand Cherokee has used a unibody chassis from the start.
The Grand Cherokee's origins date back to 1983, when American Motors Corporation was designing a successor to the Jeep Cherokee. Three outside designers—Larry Shinoda, Alain Clenet, and Giorgetto Giugiaro—were also under contract with AMC to create and build a clay model of the Cherokee XJ replacement, then known as the "XJC" project. However, the basic design for the Cherokee's replacement was well underway by AMC's in-house designers and the 1989 Jeep Concept 1 show car foretold the basic design....(Read more on Wikipedia)
II (WJ, facelift 2003) Overview:
Jeep Grand Cherokee (II (WJ, facelift 2003)). With 312 Nm of torque, it offers ample pulling power. With a weight of 1809 kg, it falls in the mid‑range. All‑wheel drive provides excellent grip, ideal for off‑road use. A sport utility vehicle offering higher ground clearance and versatile cargo space. Seating for 5 makes it ideal for daily use.
Pros and Cons:
Pros:
- • High-performance engine delivering 265 hp.
- • Rear-wheel drive layout for enhanced handling and balance.
- • Ventilated disc brakes for reliable cooling and stopping power.
- • Generous trunk capacity of 1104 Liters.
Cons:
- • Relatively high fuel consumption: 13.8 L/100 km combined.
- • Previous generation model; may lack the latest driver-assist technologies.
Specifications:
Specifications are compared to those of the previous generation(II (WJ): 2002 - 2003).
| General: |
| Brand: | Jeep |
|---|
| Model: | Grand Cherokee |
|---|
| Generation: | II (WJ, facelift 2003) |
|---|
| Modification (Engine): | 4.0 (195 Hp) 4x4 Automatic |
|---|
| Start of production: | 2003 |
|---|
| End of production: | 2004 |
|---|
| Powertrain Architecture: | Internal Combustion engine |
|---|
| Body type: | SUV |
|---|
| Seats: | 5 |
|---|
| Doors: | 5 |
|---|
| Engine: |
| Power: | 195 Hp @ 4600 rpm. Same horsepower |
|---|
| Power per litre: | 49.3 Hp/l [3mm less] |
|---|
| Torque: | 312 Nm @ 3000 rpm. |
|---|
| Engine Model/Code: | ERH More details about the engine ERH |
|---|
| Engine displacement: | 3956 |
|---|
| Number of cylinders: | 6 |
|---|
| Engine configuration: | Inline |
|---|
| Number of valves per cylinder: | 2 |
|---|
| Fuel injection system: | Multi-port manifold injection |
|---|
| Engine aspiration: | Naturally aspirated engine |
|---|
| Valvetrain: | OHV |
|---|
| Engine oil capacity: | 5.7 l |
|---|
| Coolant: | 14 l |
|---|
| Engine layout: | Front, Longitudinal |
|---|
| Cylinder Bore: | 98.4 mm mm |
|---|
| Piston Stroke: | 86.7 mm mm |
|---|
| Compression ratio: | 8.7:1 |
|---|
| Performance: |
| Fuel Type: | Petrol (Gasoline) |
|---|
| Fuel consumption (economy) - urban: | 14.7 l/100 km |
|---|
| Fuel consumption (economy) - extra urban: | 11.2 l/100 km |
|---|
| Fuel consumption (economy) - urban (EPA): | 14.7 l/100 km |
|---|
| Fuel consumption (economy) - extra urban (EPA): | 11.2 l/100 km |
|---|
| Fuel consumption (economy) - combined (EPA): | 13.1 l/100 km |
|---|
| Fuel consumption (economy) - combined: | 13.1 l/100 km |
|---|
| Weight-to-power ratio: | 9.3 kg/Hp, 107.8 Hp/tonne |
|---|
| Weight-to-torque ratio: | 5.8 kg/Nm, 172.5 Nm/tonne |
|---|
| Space: |
| Kerb Weight: | 1809 |
|---|
| Max. weight: | 2449 |
|---|
| Max. roof load: | 68 kg |
|---|
| Max load: | 640 |
|---|
| Trunk (boot) space - maximum: | 2047 l |
|---|
| Trunk (boot) space - minimum: | 1104 l |
|---|
| Permitted trailer load with brakes (12%): | 2268 kg |
|---|
| Fuel tank capacity: | 78 l |
|---|
| Size: |
| Ramp-over (brakeover) angle: | 22.6° |
|---|
| Length: | 4610 mm mm [3mm less] |
|---|
| Width: | 1836 mm mm [Same width.] |
|---|
| Height: | 1786 mm mm [24mm more] |
|---|
| Wheelbase: | 2690 mm mm [1mm less] |
|---|
| Front track: | 1511 mm |
|---|
| Rear (Back) track: | 1511 mm |
|---|
| Front overhang: | 815 mm |
|---|
| Rear overhang: | 1105 mm |
|---|
| Ride height (ground clearance): | 221 mm |
|---|
| Minimum turning circle (turning diameter): | 11.4 m [above average] |
|---|
| Approach angle: | 36.7° |
|---|
| Departure angle: | 28.6° |
|---|
| Powertrain: |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary. |
|---|
| Drive wheel | All wheel drive (4x4) |
|---|
| Number of gears | 5 |
|---|
| Transmission type | Automatic |
|---|
| Front brakes | Ventilated discs, 305 mm [Best for performance and cooling.] |
|---|
| Rear brakes | Disc, 305 mm [above average] |
|---|
| Assisting systems | ABS (Anti-lock braking system) |
|---|
| Steering type | Cone worm with recirculation balls |
|---|
| Power steering | Hydraulic Steering |
|---|
| Tires size | 225/75 R16; 245/70 R16 |
|---|
| Wheel rims size | 7J x 16 |
|---|
| Front suspension | Coil spring, Rigid axle suspension, Transverse stabilizer |
|---|
| Rear suspension | Rigid axle suspension, Transverse stabilizer, Trailing arm, Coil spring |
|---|
