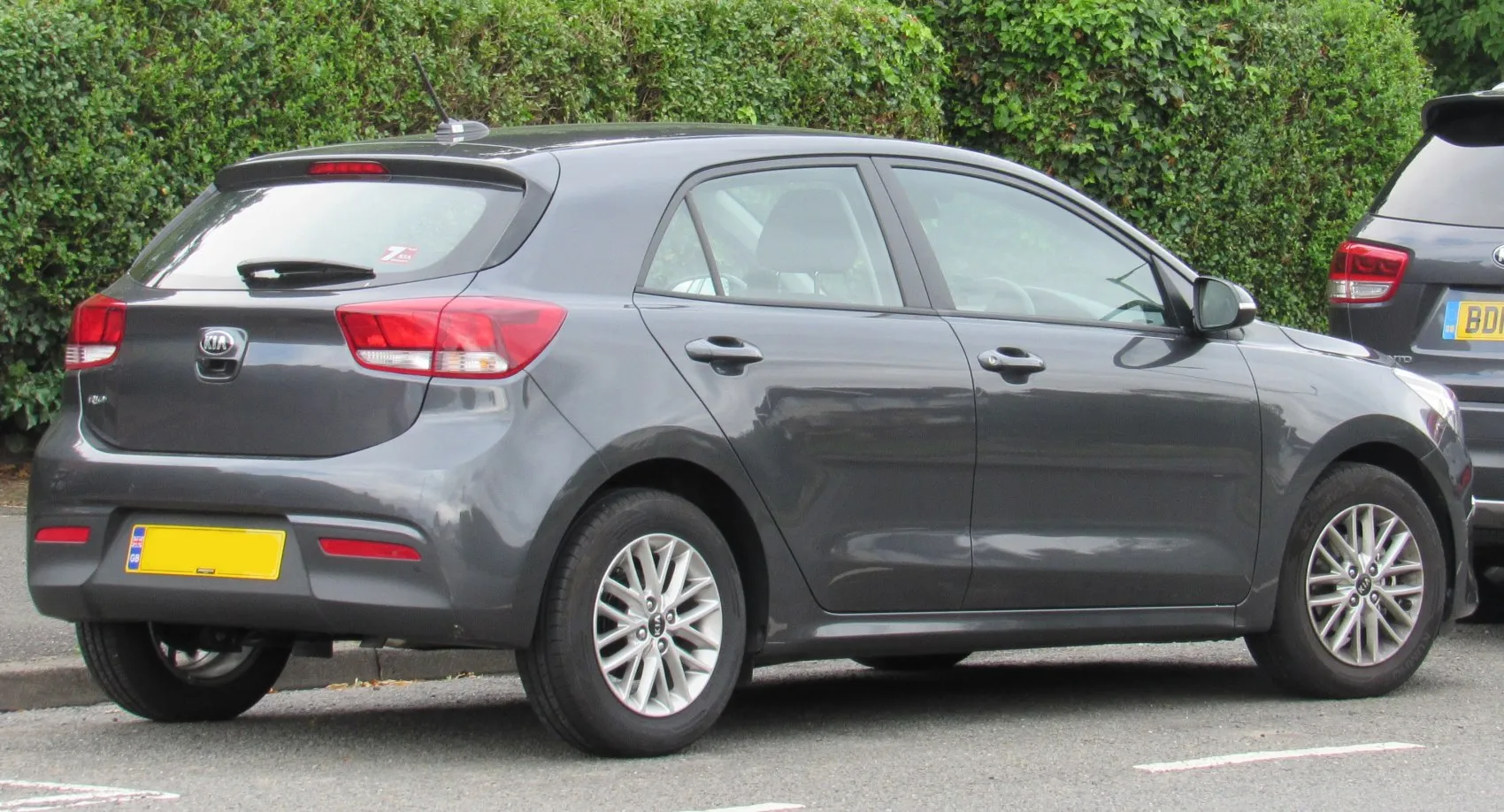

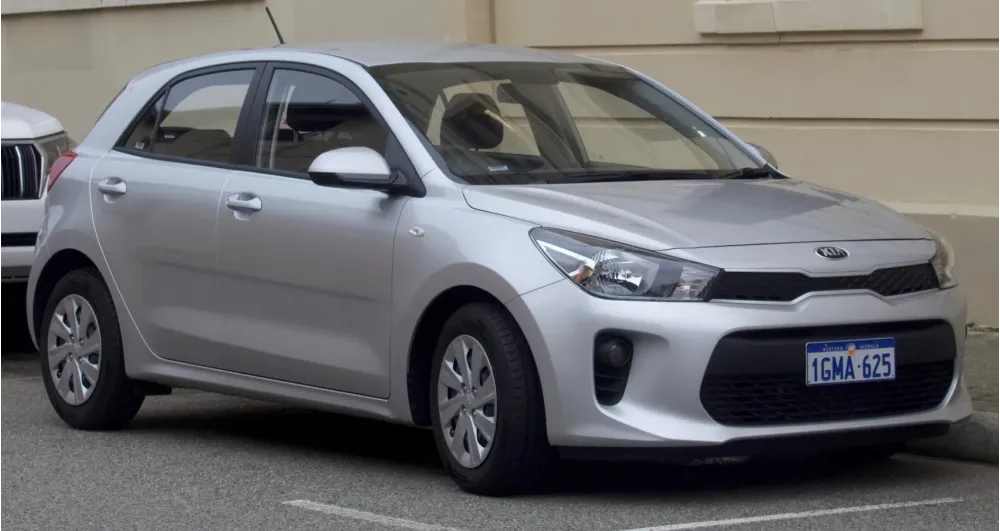

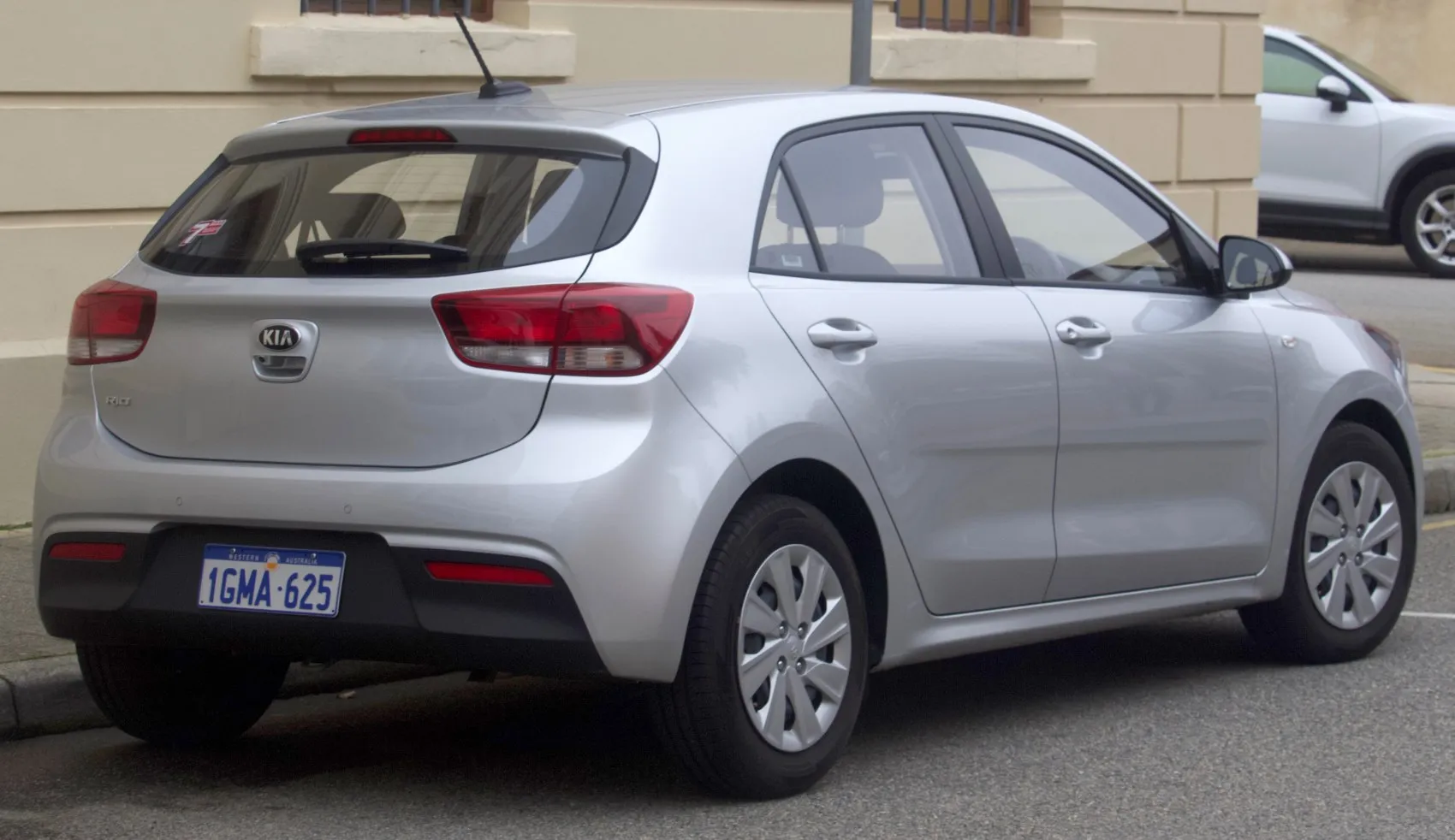

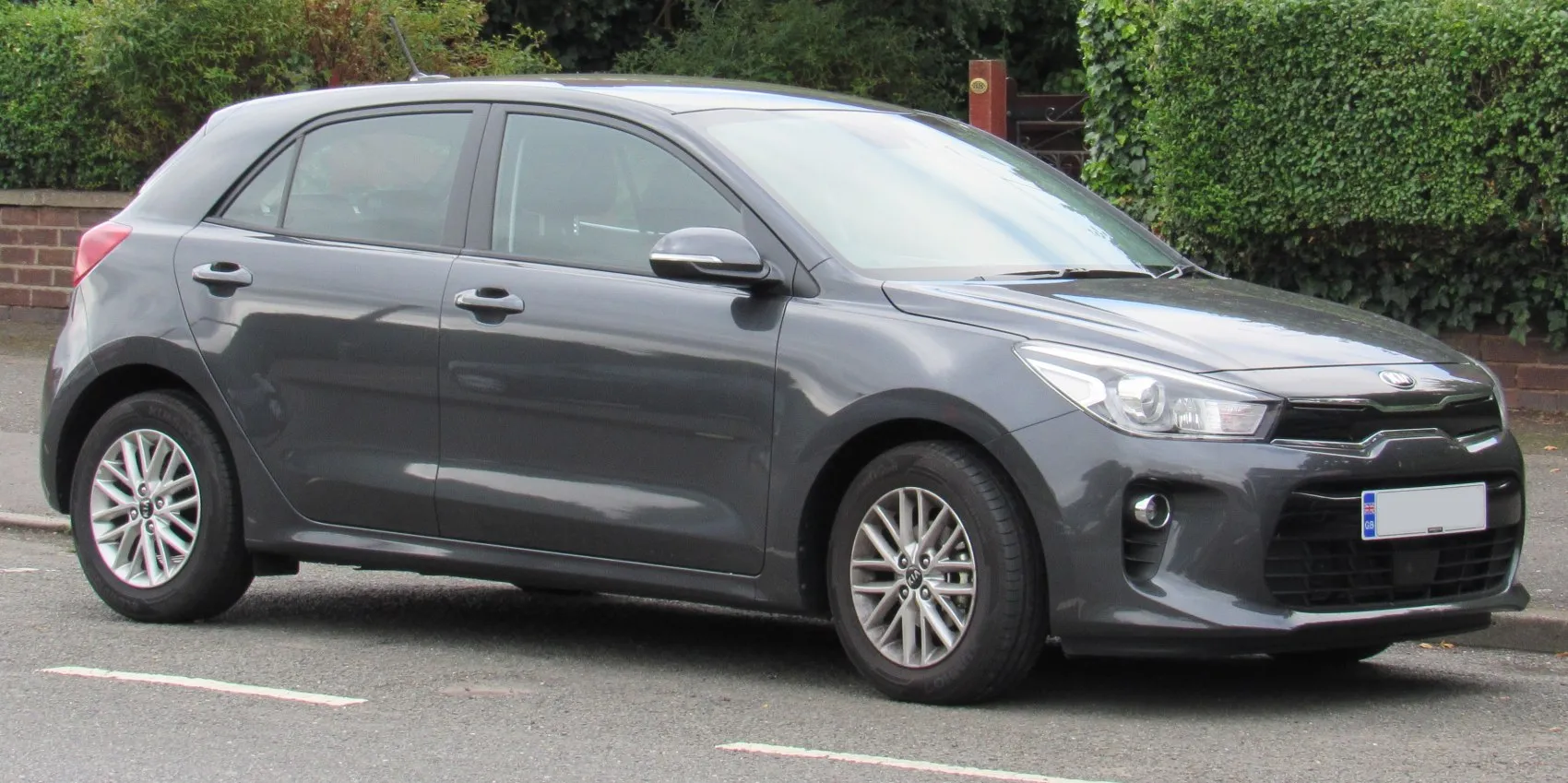

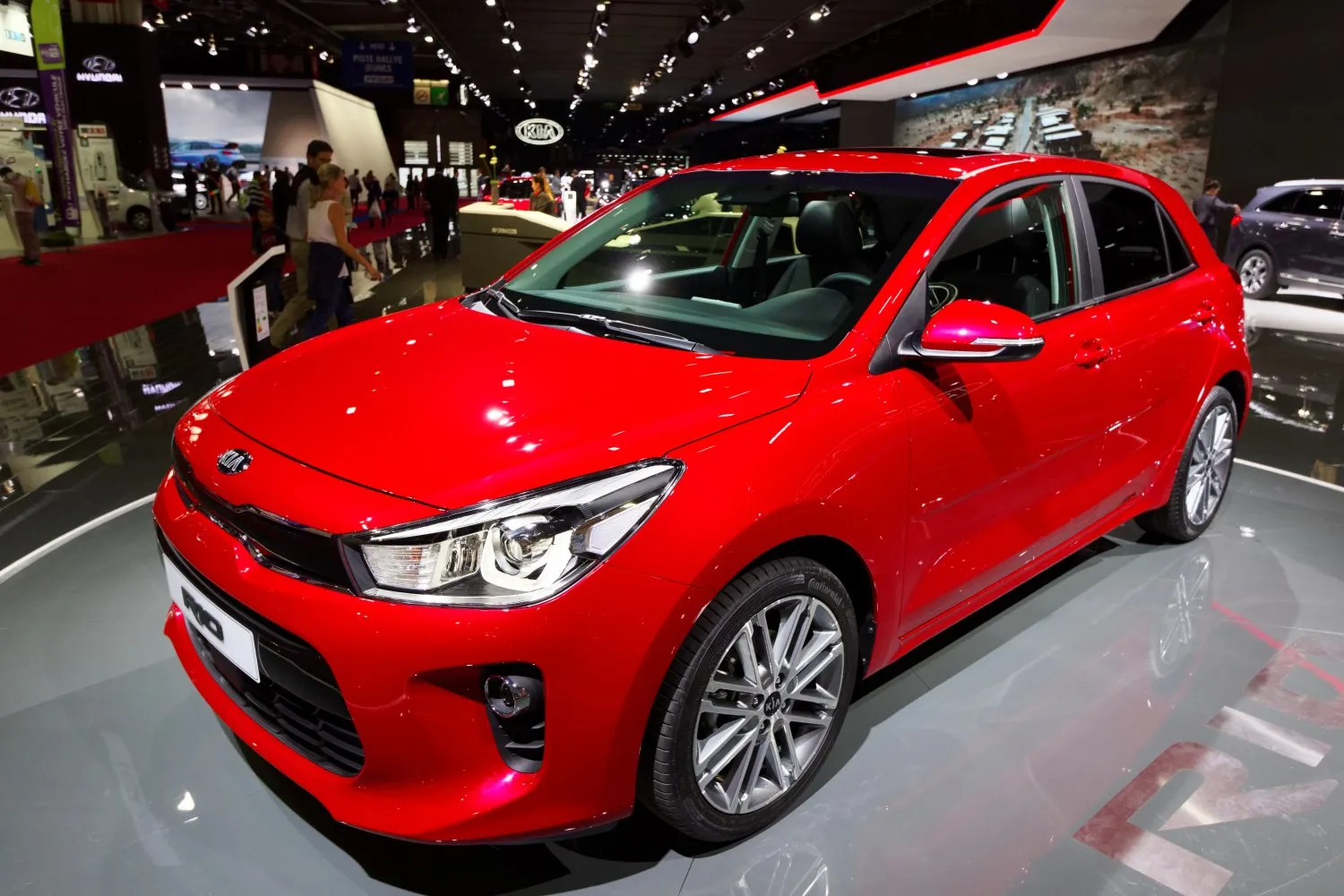

Kia Rio IV Hatchback (YB) 1.4 CRDi (90 Hp)
Overall Rating
Kia Rio:
The Kia Rio is a subcompact car manufactured by Kia from 1999 to 2023. Body styles have included a three and five-door hatchback and four-door sedan, equipped with inline-four gasoline and diesel engines, and front-wheel drive.
The Rio replaced the first generation Pride—a rebadged version of the Ford Festiva—and the Avella, a subcompact sold as a Ford in some markets. A second generation was introduced in 2005 in Europe and in 2006 in North America, sharing its platform with the Hyundai Accent, a subcompact manufactured by its sister Hyundai Motor Company in South Korea....(Read more on Wikipedia)
IV Hatchback (YB) Overview:
Kia Rio (IV Hatchback (YB)). With 240 Nm of torque, it offers ample pulling power. Weighing only 1235 kg, it’s quite light. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 12 s). The top speed reaches 175 km/h. A compact car with a rear door that swings upward to provide access to the cargo area. Seating for 5 makes it ideal for daily use.
1.4 CRDi (90 Hp) Verdict:
Performance Verdict
A more capable diesel option than the 77 Hp variant, offering improved acceleration and better highway cruising ability.
Fuel Economy
Excellent fuel efficiency, maintaining the diesel's economical nature while providing a slight boost in performance.
Pros and Cons:
Pros:
- • Stylish design
- • Good fuel economy across the range
- • Spacious interior for its class
- • High safety rating with optional pack
- • Long warranty
Cons:
- • Some engines can feel underpowered
- • Ride can be firm on larger wheels
- • Interior materials can feel basic on lower trims
- • Automatic transmission impacts performance/economy
Specifications:
Specifications are compared to those of the previous generation(IV Hatchback (YB, facelift 2020): August, 2020 - ).
| General: | |
|---|---|
| Brand: | Kia |
| Model: | Rio |
| Generation: | IV Hatchback (YB) |
| Modification (Engine): | 1.4 CRDi (90 Hp) |
| Start of production: | February, 2017 |
| End of production: | May, 2018 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Hatchback |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Engine systems: | Particulate filter |
| Power: | 90 Hp @ 4000 rpm. Same horsepower |
| Power per litre: | 64.5 Hp/l [Same length.] |
| Torque: | 240 Nm @ 1500-2500 rpm. |
| Engine Model/Code: | D4FC More details about the engine D4FC |
| Engine displacement: | 1396 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Diesel Commonrail |
| Engine aspiration: | Turbocharger, Intercooler |
| Engine oil capacity: | 5.3 l |
| Coolant: | 6.4 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 75 mm |
| Piston Stroke: | 79 mm |
| Compression ratio: | 16:1 |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Fuel consumption (economy) - combined: | 3.7-3.8 l/100 km |
| Emission standard: | Euro 6 b |
| Acceleration 0 - 100 km/h: | 12 sec |
| Acceleration 0 - 62 mph: | 12 sec |
| Maximum speed: | 175 km/h |
| Weight-to-power ratio: | 13.7 kg/Hp, 72.9 Hp/tonne |
| Weight-to-torque ratio: | 5.1 kg/Nm, 194.3 Nm/tonne |
| Acceleration 0 - 60 mph: | 11.4 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1235 |
| Max. weight: | 1680 |
| Max load: | 445 |
| Trunk (boot) space - maximum: | 980 l |
| Trunk (boot) space - minimum: | 325 l |
| Permitted trailer load with brakes (12%): | 1110 kg |
| Fuel tank capacity: | 45 l |
| Permitted trailer load without brakes: | 450 kg |
| Size: | |
|---|---|
| Length: | 4065 mm [Same length.] |
| Width: | 1725 mm [Same width.] |
| Height: | 1450 mm [Same height.] |
| Wheelbase: | 2580 mm [Same wheelbase.] |
| Front track: | 1518 mm |
| Rear (Back) track: | 1524 mm |
| Front overhang: | 830 mm |
| Rear overhang: | 655 mm |
| Ride height (ground clearance): | 135 mm |
| Minimum turning circle (turning diameter): | 10.2 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 6 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Drum [bad for performance and cooling.] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 185/65 R15; 195/55 R16; 205/45 R17 |
| Wheel rims size | 15; 16; 17 |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Semi-independent, coil spring, Elastic beam |
