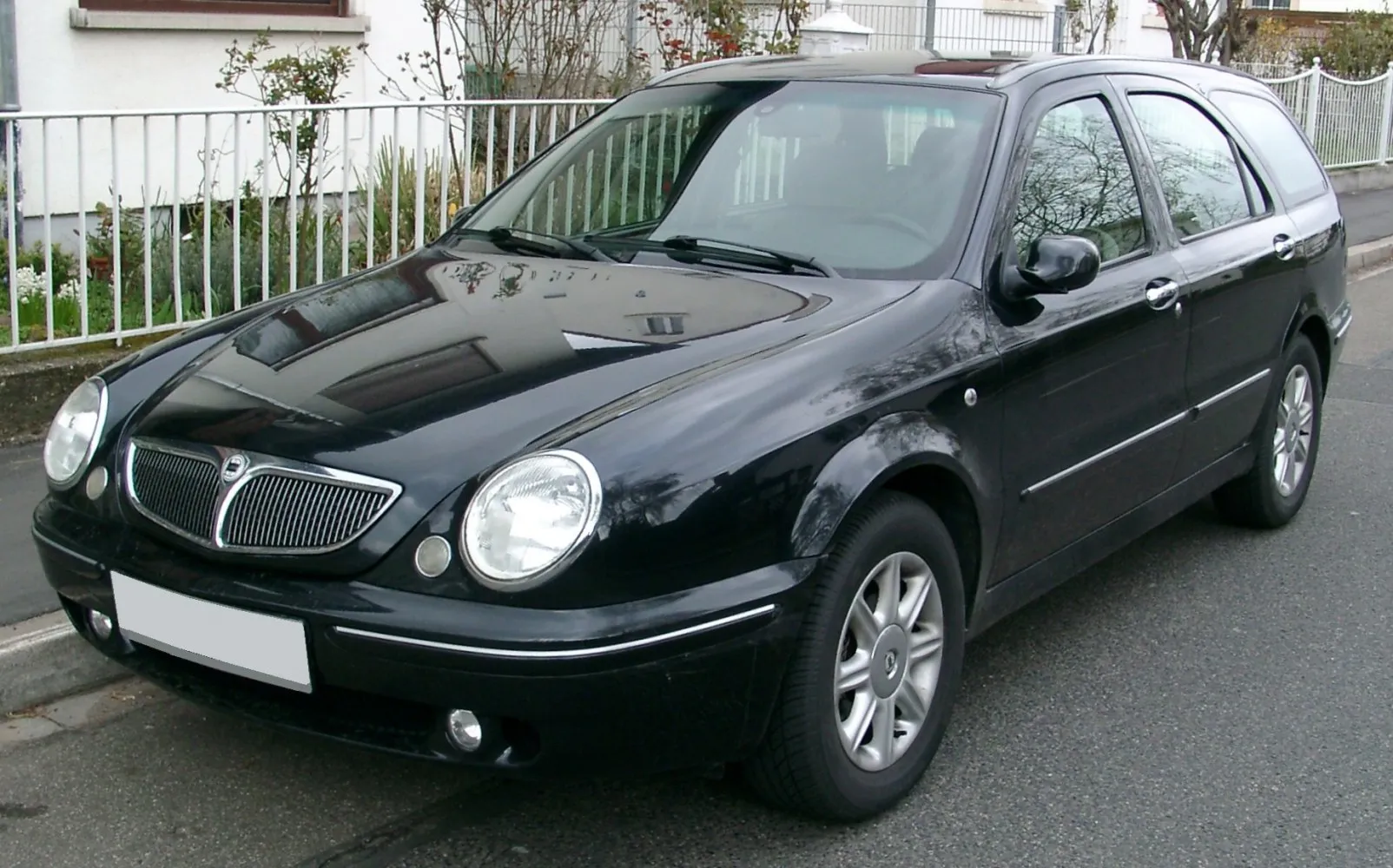

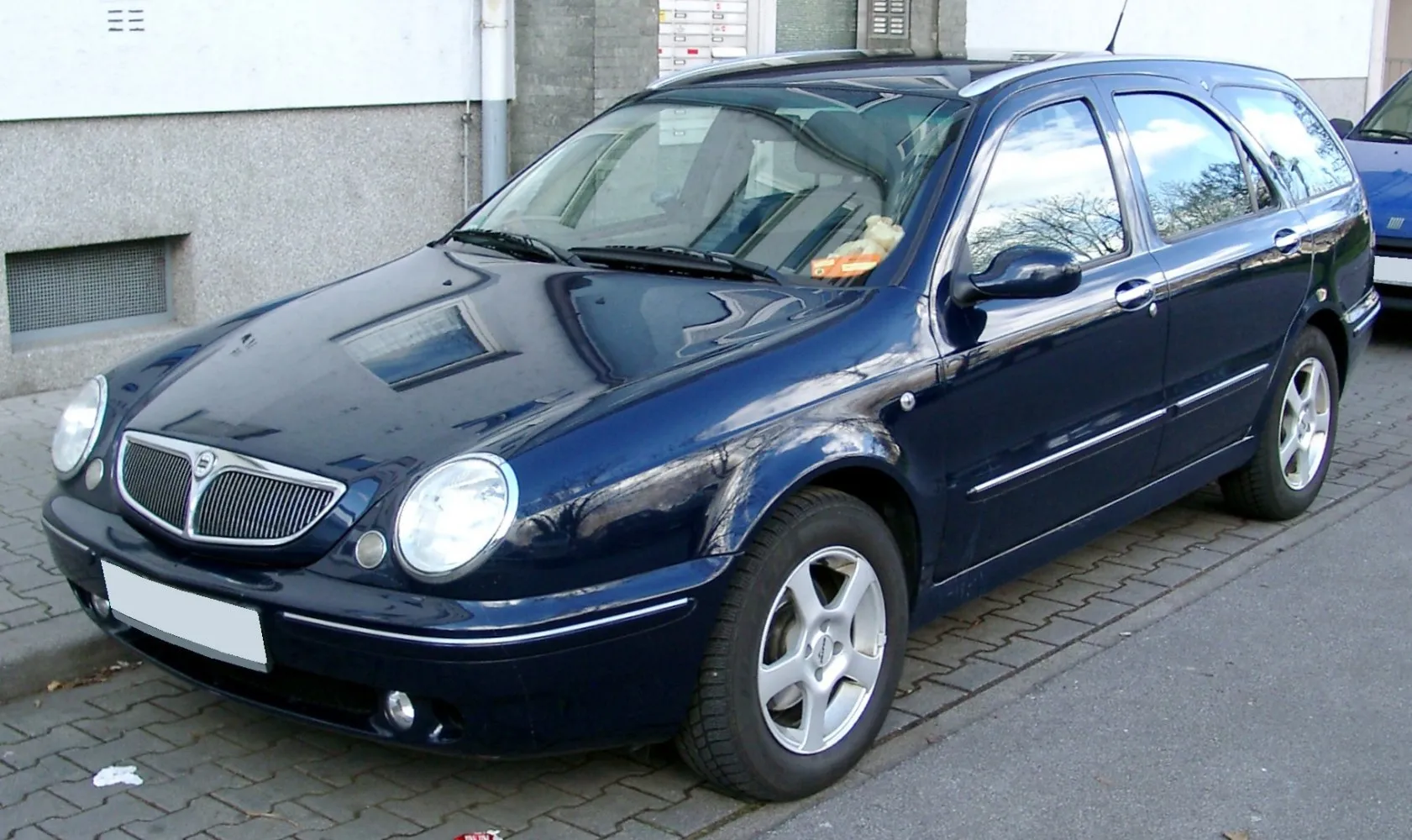

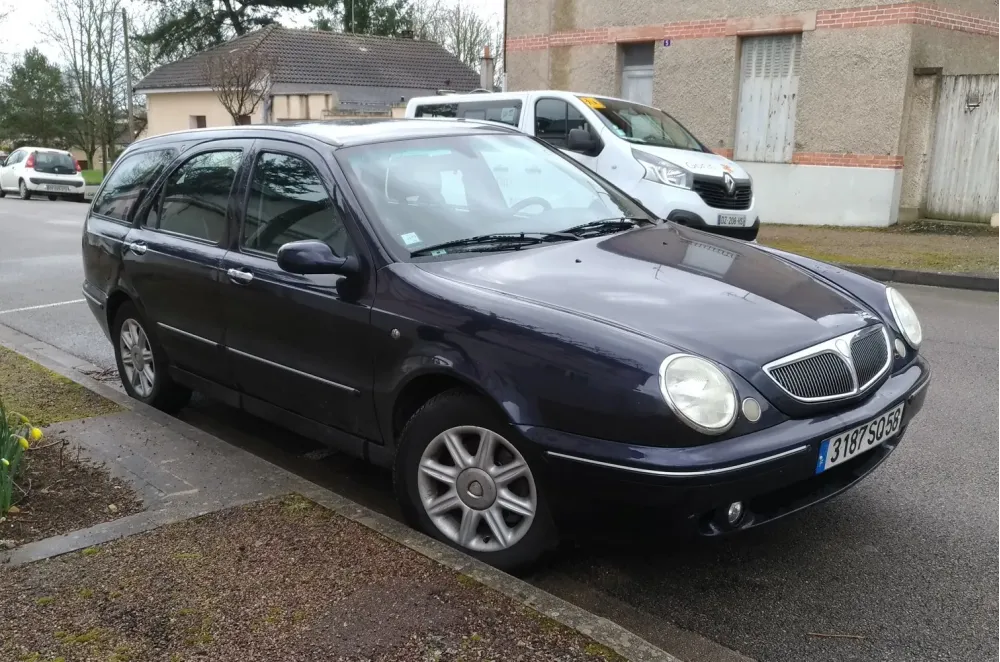

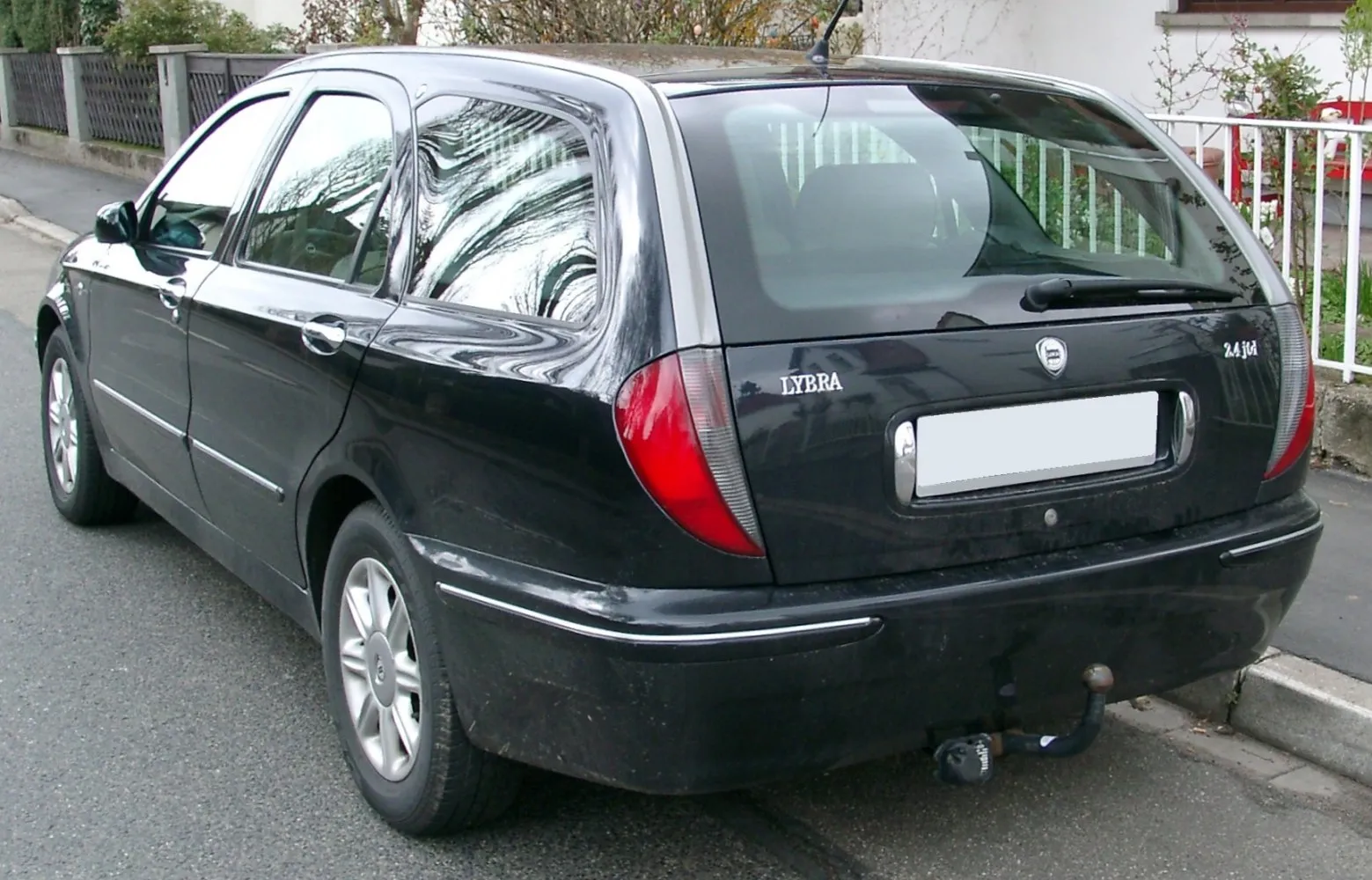

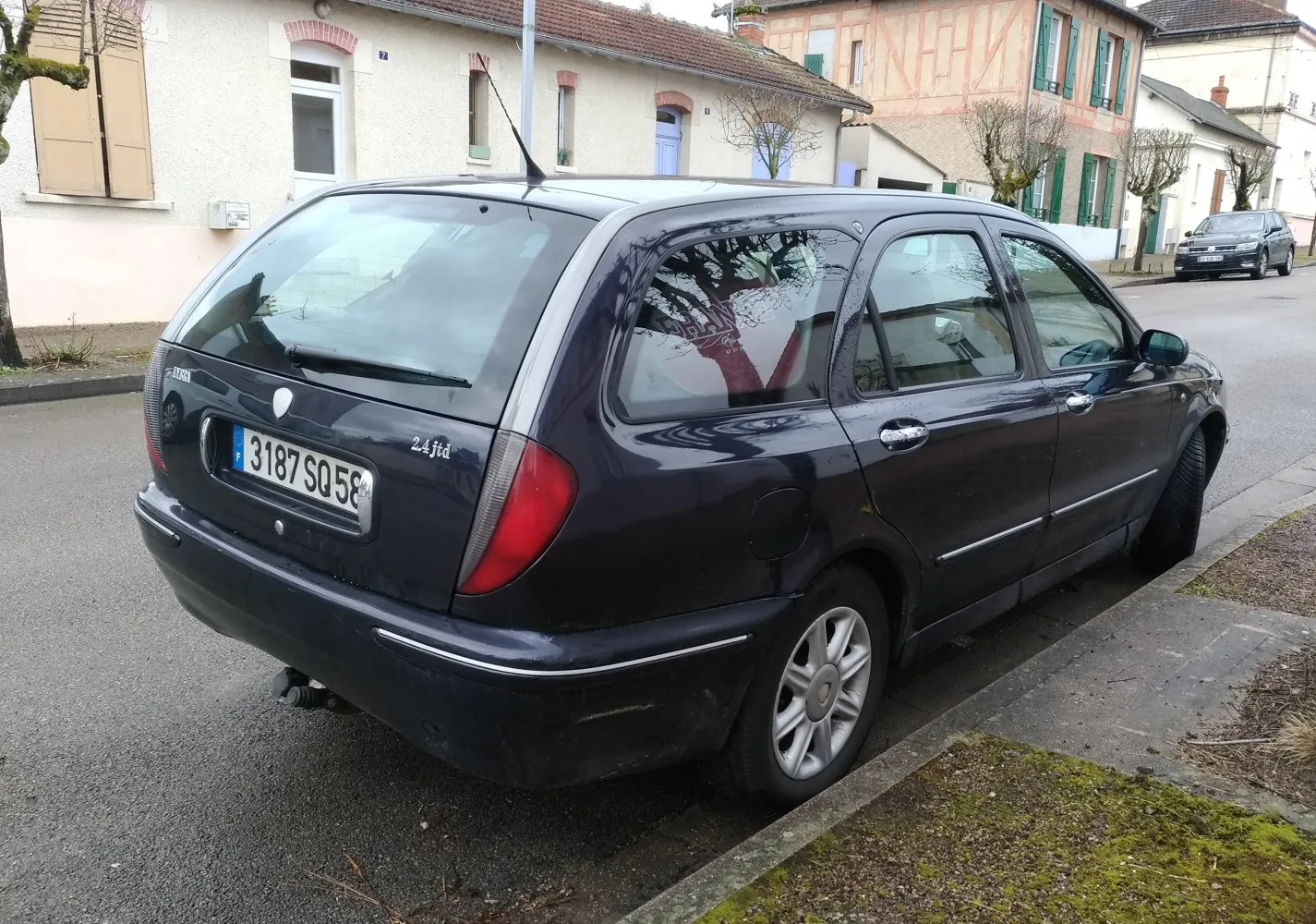

Lancia Lybra SW (839) 2.4 JTD (140 Hp)
Overall Rating
Lancia Lybra:
The Lancia Lybra is a compact executive car manufactured and marketed by Italian automaker Lancia between 1998 and 2005, based on the Alfa Romeo 156 floorpan, and replacing the Dedra in Lancia's range. Like the Dedra, the Lybra was available as a Berlina or a Station Wagon. A total of 164,660 cars were made.
The late 1990s were a dark period for the Italian group Fiat and its automotive subsidiaries. Losses were mounting, and the group's management, led by Italian-American financier Mr. Fresco, former second-in-command at General Electric, was determined to divest from the automotive division....(Read more on Wikipedia)
SW (839) Overview:
Lancia Lybra (SW (839)). With 304 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~9.2 l/100km). With a weight of 1335 kg, it falls in the mid‑range. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 9.7 s). The top speed reaches 205 km/h. A car with an extended rear cargo area, combining passenger comfort with increased storage. Seating for 5 makes it ideal for daily use.
2.4 JTD (140 Hp) Verdict:
Performance Verdict
A robust diesel engine delivering strong power and torque, excellent for effortless highway cruising and overtaking.
Fuel Economy
Very good fuel efficiency for its displacement and power, making it a solid choice for long-distance economy.
Pros and Cons:
Pros:
- • Exceptional ride comfort and refined interior for its class.
- • Distinctive and elegant Italian styling.
- • Strong and economical JTD diesel engines.
- • Well-equipped for its price point, especially on the used market.
- • Spacious and practical estate body style.
Cons:
- • Petrol engines can be thirsty compared to diesel counterparts.
- • Lancia's limited brand appeal affects resale value.
- • Some electronic and minor reliability issues reported.
- • Lack of Euro NCAP safety rating.
- • Finding parts and specialist mechanics can be challenging in some regions.
Specifications:
Specifications are compared to those of the previous generation(839: 1999 - 2000).
| General: | |
|---|---|
| Brand: | Lancia |
| Model: | Lybra |
| Generation: | SW (839) |
| Modification (Engine): | 2.4 JTD (140 Hp) |
| Start of production: | 2000 |
| End of production: | 2002 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Station wagon (estate) |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 140 Hp @ 4000 rpm. Same horsepower |
| Power per litre: | 58.7 Hp/l [Same length.] |
| Torque: | 304 Nm @ 1800 rpm. |
| Engine Model/Code: | 839A6000 More details about the engine 839A6000 |
| Engine displacement: | 2387 |
| Number of cylinders: | 5 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Diesel Commonrail |
| Engine aspiration: | Turbocharger, Intercooler |
| Valvetrain: | SOHC |
| Engine oil capacity: | 5.5 l |
| Coolant: | 7.4 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 82 mm mm |
| Piston Stroke: | 90.4 mm mm |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Fuel consumption (economy) - urban: | 9.2 l/100 km |
| Fuel consumption (economy) - extra urban: | 5.5 l/100 km |
| Fuel consumption (economy) - combined (NEDC): | 6.9 l/100 km |
| Fuel consumption (economy) - urban (NEDC): | 9.2 l/100 km |
| Fuel consumption (economy) - extra urban (NEDC): | 5.5 l/100 km |
| Fuel consumption (economy) - combined: | 6.9 l/100 km |
| Emission standard: | Euro 3 |
| Acceleration 0 - 100 km/h: | 9.7 sec |
| Acceleration 0 - 62 mph: | 9.7 sec |
| Maximum speed: | 205 km/h |
| Weight-to-power ratio: | 9.5 kg/Hp, 104.9 Hp/tonne |
| Weight-to-torque ratio: | 4.4 kg/Nm, 227.7 Nm/tonne |
| Acceleration 0 - 60 mph: | 9.2 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1335 |
| Max. weight: | 1935 |
| Max load: | 600 |
| Trunk (boot) space - maximum: | 1300 l |
| Trunk (boot) space - minimum: | 420 l |
| Permitted trailer load with brakes (12%): | 1400 kg |
| Fuel tank capacity: | 60 l |
| Permitted trailer load without brakes: | 400 kg |
| Permitted towbar download: | 75 kg |
| Permitted trailer load with brakes (8%): | 1500 kg |
| Size: | |
|---|---|
| Length: | 4466 mm mm [Same length.] |
| Width: | 1743 mm mm [Same width.] |
| Height: | 1470 mm mm [8mm more] |
| Wheelbase: | 2593 mm mm [Same wheelbase.] |
| Front track: | 1517 mm |
| Rear (Back) track: | 1476 mm |
| Front overhang: | 926 mm |
| Rear overhang: | 947 mm |
| Minimum turning circle (turning diameter): | 10.9 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs, 284 mm [Best for performance and cooling.] |
| Rear brakes | Disc, 251 mm [above average] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R15 |
| Wheel rims size | 6J x 15 |
| Front suspension | Independent type McPherson, Transverse stabilizer |
| Rear suspension | Wishbone, Transverse stabilizer, Trailing arm |
