Everything you need to know about specifications and performance - Mazda 323 1994 - 1.5 i 16V (88 Hp)

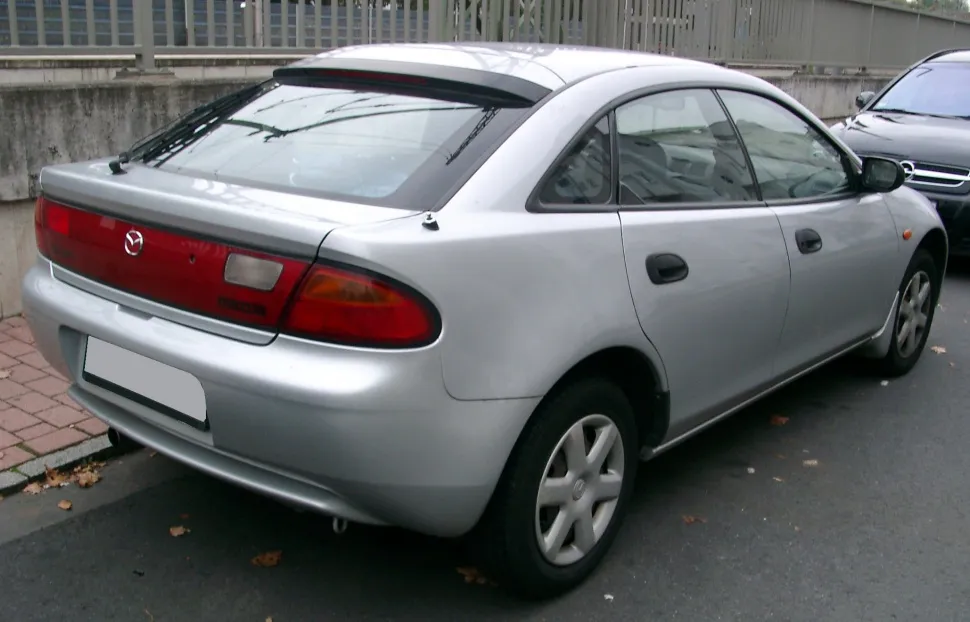

Full specifications and technical details 1994 Mazda 323 F V (BA) 1.5 i 16V (88 Hp)

Overview:

What is the engine capacity of a Mazda 323 1994?
The engine capacity of the Mazda 323 1994 is 1489.

Mazda 323 1994 How many horsepower?
The engine power of the Mazda 323 1994 is 88 Hp @ 5500 rpm..

What is the Mazda 323 1994 engine?
Mazda 323 1994 engine is Z5-DE. (Click to see other cars using the same engine)

How much gasoline does a Mazda 323 1994 consume?
The Mazda 323 1994 consumes 7.2 liters of gasoline per 100 km

What is the recommended oil for a Mazda 323 1994 engine?
The recommended oil for a Mazda 323 1994 car engine is 5W-30.

What type of camshaft transmission system is used in a Mazda 323 1994 engine?
belt is used to transmit motion.

General:

Brand: Mazda
Model: 323
Generation: F V (BA)
Modification (Engine): 1.5 i 16V (88 Hp)
Start of production: 1994
End of production: 1998
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 5

Engine:

Power: 88 hp @ 5500 rpm.
Power per litre: 59.1 hp/l
Torque: 132 nm @ 4000 rpm.
Engine Model/Code:Z5-DE
Engine displacement: 1489
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 3.5 l
Coolant: 5 l
Engine layout: Front, Transverse
Cylinder Bore: 75.3 mm
Piston Stroke: 83.6 mm
Compression ratio: 9.4:1
recommended engine oil: 5W-30
euro standards: EURO 3
engine lifespan (km): ~300 000
weight (kg): 128.7
timing drive: belt

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 9 l/100 km
Fuel consumption (economy) - extra urban: 5.5 l/100 km
Fuel consumption (economy) - combined: 7.2 l/100 km
Acceleration 0 - 100 km/h: 12 sec
Acceleration 0 - 62 mph: 12 sec
Maximum speed: 175 km/h
Weight-to-power ratio: 12.7 kg/Hp, 78.9 Hp/tonne
Weight-to-torque ratio: 8.4 kg/Nm, 118.4 Nm/tonne
Acceleration 0 - 60 mph: 11.4 sec

Space:

Kerb Weight (kg): 1115
Max. weight (kg): 1580
Max load (kg): 465
Trunk (boot) space - minimum: 346 l
Fuel tank capacity: 55 l

dimensions:

Length: 4245 mm
Width: 1695 mm
Height: 1355 mm
wheelbase: 2605 mm
Front track: 1460 mm
Rear (Back) track: 1460 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Drum
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 175/70 R13
Wheel rims size: 13
Front suspension: Independent type McPherson
Rear suspension: Spring Strut
