Everything you need to know about specifications and performance - Nissan Skyline 2014 - 3.5 V6 (364 Hp) Hybrid Automatic

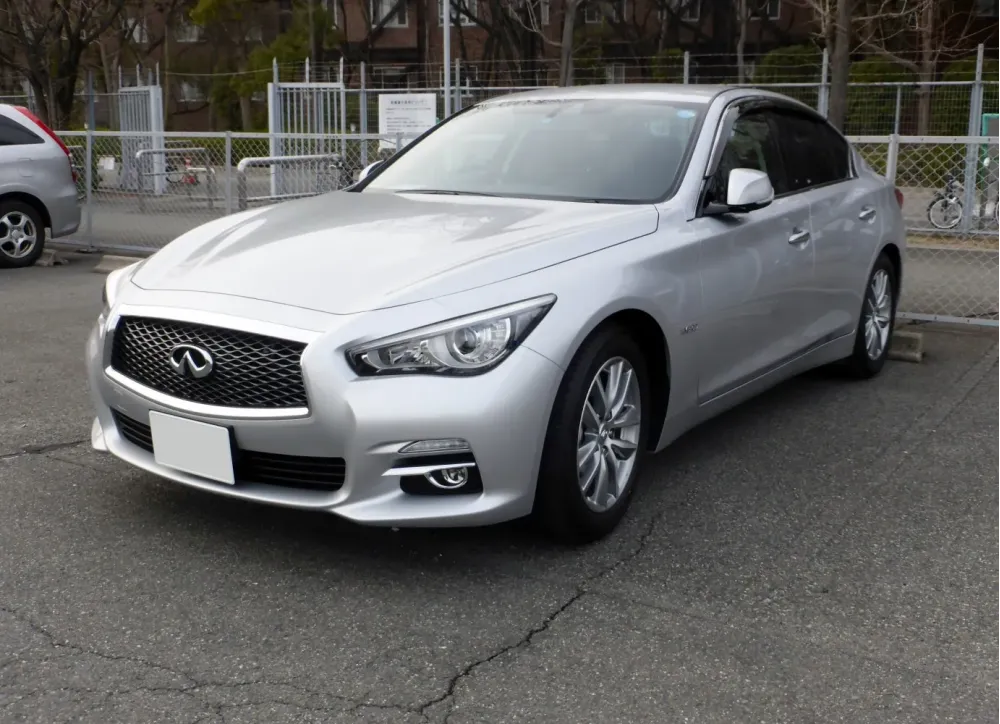

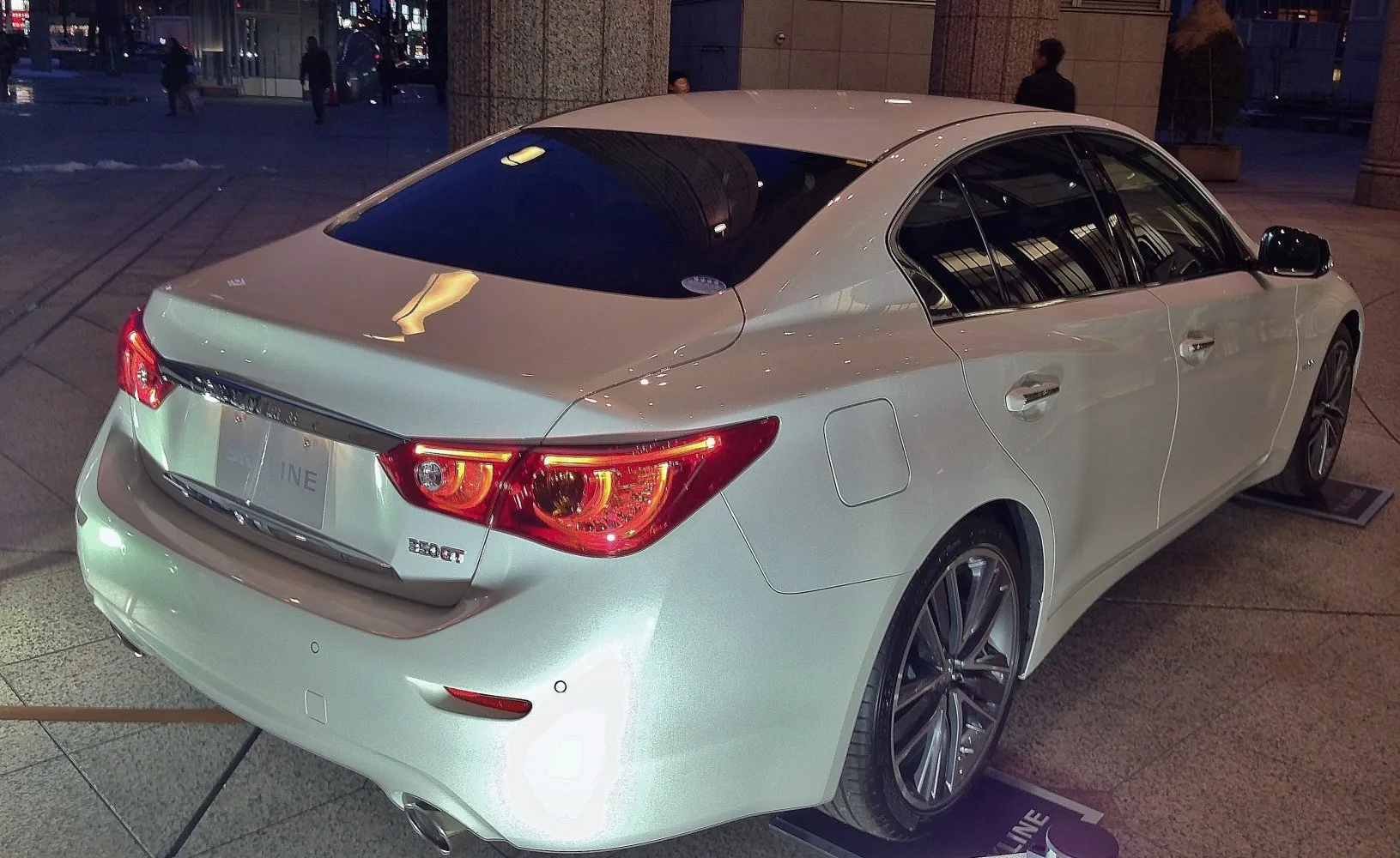

Full specifications and technical details 2014 Nissan Skyline XIII (HV37) 3.5 V6 (364 Hp) Hybrid Automatic

Overview:

What is the engine capacity of a Nissan Skyline 2014?
The engine capacity of the Nissan Skyline 2014 is 3498.

Nissan Skyline 2014 How many horsepower?
The engine power of the Nissan Skyline 2014 is 306 Hp @ 6800 rpm..

What is the Nissan Skyline 2014 engine?
Nissan Skyline 2014 engine is VQ35HR. (Click to see other cars using the same engine)

How powerful is the electrical system in the Nissan Skyline 2014?
The power of the electrical system in the Nissan Skyline 2014 is 364 Hp @ 6500 rpm. hp.

How much gasoline does a Nissan Skyline 2014 consume?
The Nissan Skyline 2014 consumes 5.4 liters of gasoline per 100 km

What is the recommended oil for a Nissan Skyline 2014 engine?
The recommended oil for a Nissan Skyline 2014 car engine is 5W-30, 5W-40.

What type of camshaft transmission system is used in a Nissan Skyline 2014 engine?
chain is used to transmit motion.

General:

Brand: Nissan

Model: Skyline

Generation: XIII (HV37)

Modification (Engine): 3.5 V6 (364 Hp) Hybrid Automatic

Start of production: February, 2014

End of production: 2017

Powertrain Architecture: FHEV (Full Hybrid Electric Vehicle)

Body type:Sedan

Seats: 5

Doors: 4

Engine:

Power: 306 hp @ 6800 rpm.

Power per litre: 87.5 hp/l

Torque: 350 nm @ 5000 rpm.

Engine Model/Code:VQ35HR

Engine displacement: 3498

Number of cylinders: 6

Engine configuration: V-engine

Number of valves per cylinder: 4

Fuel injection system: Multi-port manifold injection

Engine aspiration: Naturally aspirated Engine

Valvetrain: DOHC

Engine oil capacity: 4.9 l

Coolant: 9.8 l

Engine layout: Front, Longitudinal

Cylinder Bore: 95.5 mm

Piston Stroke: 81.4 mm

Compression ratio: 10.6:1

recommended engine oil: 5W-30, 5W-40

euro standards: EURO 4/5

engine lifespan (km): ~400 000

weight (kg): 190

timing drive: chain

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)

Fuel consumption (economy) - combined: 5.4 l/100 km

Weight-to-power ratio: 4.8 kg/Hp, 206.8 Hp/tonne

Weight-to-torque ratio: 3.1 kg/Nm, 323.9 Nm/tonne

Electric system:

Gross battery capacity: 1.4 kWh

Battery technology: Lithium-ion (Li-Ion)

Battery location: Behind the back wall of the passenger cabin

System power: 364 hp @ 6500 rpm.

System torque: 570 nm @ 2000 rpm.

Electric motor power: 68 hp @ 1770-2000 rpm.

Electric motor Torque: 290 nm @ 1770 rpm.

Electric motor location: Between the combustion Engine and the transmission

Electric motor model/code: HM34

Space:

Kerb Weight (kg): 1760

Max. weight (kg): 2035

Max load (kg): 275

Fuel tank capacity: 75 l

dimensions:

Length: 4790 mm

Width: 1820 mm

Height: 1440 mm

wheelbase: 2850 mm

Front track: 1545 mm

Rear (Back) track: 1570 mm

Ride height (ground clearance): 130 mm

Minimum turning circle (turning diameter): 11.2 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) and electric motor drive the rear wheels of the car with the ability to work in full electric or mixed mode.

Drive wheel: Rear wheel drive

Number of gears and type of gearbox: 7 gears, automatic transmission

Front brakes: Ventilated discs

Rear brakes: Ventilated discs

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Tires size: 225/55 R17

Wheel rims size: 17

Front suspension: Double wishbone

Rear suspension: Independent multi-link suspension
