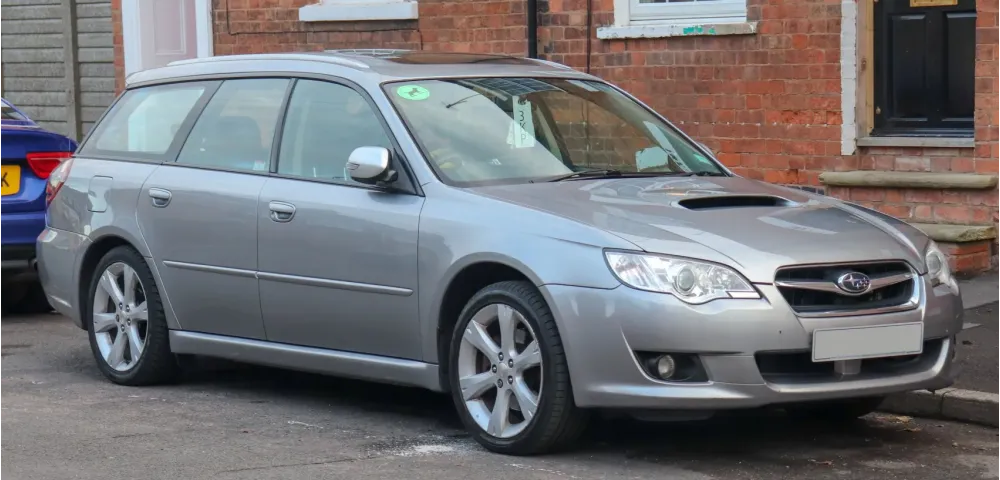

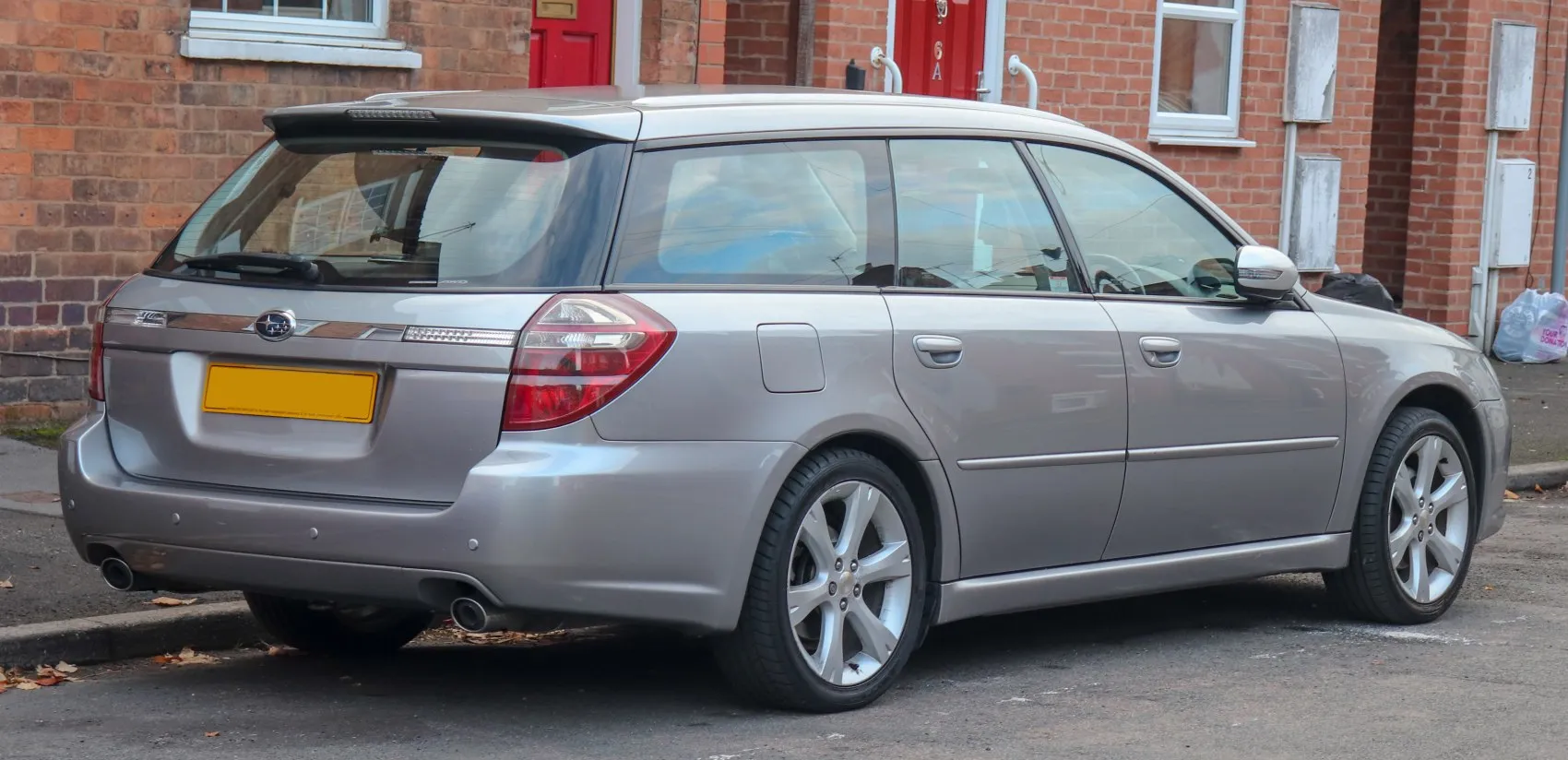

Subaru Legacy IV Station Wagon (facelift 2006) 3.0R spec.B (245 Hp) AWD
Overall Rating
Subaru Legacy:
The Subaru Legacy is a mid-size car built by Japanese automobile manufacturer Subaru from 1989 to 2025. The maker's flagship car, it is unique in its class for offering all-wheel drive as a standard feature, and Subaru's traditional boxer engine.
In 1996, a variant of the Legacy with heightened suspension called the Legacy Outback was introduced to compete in the burgeoning sport-utility vehicle class, and proved to be a sales success for Subaru. The Outback line was split into its own model in 2008, known as the Subaru Outback....(Read more on Wikipedia)
IV Station Wagon (facelift 2006) Overview:
Subaru Legacy (IV Station Wagon (facelift 2006)). With 297 Nm of torque, it offers ample pulling power. With a weight of 1635 kg, it falls in the mid‑range. All‑wheel drive provides excellent grip, ideal for off‑road use. Acceleration is good (0–100 km/h in 7 s). The top speed reaches 233 km/h. A car with an extended rear cargo area, combining passenger comfort with increased storage. Seating for 5 makes it ideal for daily use.
3.0R spec.B (245 Hp) AWD Verdict:
Performance Verdict
The flagship performance model, offering exhilarating acceleration and strong power delivery from its naturally aspirated Boxer-6. A true driver's car with the manual gearbox.
Fuel Economy
As expected for a high-performance 3.0L engine, fuel consumption is on the higher side, especially in urban driving, but acceptable for its power output.
Pros and Cons:
Pros:
- • Excellent Symmetrical All-Wheel Drive system for all-weather capability.
- • Reliable Boxer engines, especially the naturally aspirated variants.
- • Spacious and practical station wagon body style.
- • Comfortable ride quality for long journeys.
- • Engaging driving dynamics, particularly with the 3.0R spec.B.
- • Strong resale value for well-maintained examples.
Cons:
- • Fuel economy can be high, especially with the 3.0L engine and in urban settings.
- • Interior design, while functional, can feel dated compared to some European rivals.
- • Some parts, particularly for the 3.0R, can be more expensive.
- • Limited ground clearance (150mm) for a vehicle with AWD capabilities.
- • Automatic transmissions can feel less engaging than manual options.
Specifications:
Specifications are compared to those of the previous generation(IV: 2005 - 2006).
| General: | |
|---|---|
| Brand: | Subaru |
| Model: | Legacy |
| Generation: | IV Station Wagon (facelift 2006) |
| Modification (Engine): | 3.0R spec.B (245 Hp) AWD |
| Start of production: | 2006 |
| End of production: | 2009 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Station wagon (estate) |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 245 Hp @ 6600 rpm. Same horsepower |
| Power per litre: | 81.7 Hp/l [130mm more] |
| Torque: | 297 Nm @ 4200 rpm. |
| Engine Model/Code: | EZ30D More details about the engine EZ30D |
| Engine displacement: | 3000 |
| Number of cylinders: | 6 |
| Engine configuration: | Boxer |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC |
| Engine oil capacity: | 5.5 l |
| Coolant: | 7.2 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 89.2 mm mm |
| Piston Stroke: | 80 mm mm |
| Compression ratio: | 10.7:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 17.8 l/100 km |
| Fuel consumption (economy) - extra urban: | 9.1 l/100 km |
| Fuel consumption (economy) - combined: | 12.3 l/100 km |
| Emission standard: | Euro 4 |
| Acceleration 0 - 100 km/h: | 7 sec |
| Acceleration 0 - 62 mph: | 7 sec |
| Maximum speed: | 233 km/h |
| Weight-to-power ratio: | 6.7 kg/Hp, 149.8 Hp/tonne |
| Weight-to-torque ratio: | 5.5 kg/Nm, 181.7 Nm/tonne |
| Acceleration 0 - 60 mph: | 6.7 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1635 |
| Max. weight: | 2050 |
| Max. roof load: | 100 kg |
| Max load: | 415 |
| Trunk (boot) space - maximum: | 1649 l |
| Trunk (boot) space - minimum: | 459 l |
| Permitted trailer load with brakes (12%): | 2000 kg |
| Fuel tank capacity: | 64 l |
| Permitted trailer load without brakes: | 750 kg |
| Permitted towbar download: | 82 kg |
| Size: | |
|---|---|
| Length: | 4795 mm mm [130mm more] |
| Width: | 1730 mm mm [Same width.] |
| Height: | 1475 mm mm [50mm more] |
| Wheelbase: | 2670 mm mm [Same wheelbase.] |
| Front track: | 1495 mm |
| Rear (Back) track: | 1485 mm |
| Ride height (ground clearance): | 150 mm |
| Minimum turning circle (turning diameter): | 11.6 m [above average] |
| Powertrain: | |
|---|---|
| Drive wheel | All wheel drive (4x4) |
| Number of gears | 6 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc [above average] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 215/45 R17 |
| Wheel rims size | 7.0J x 17 |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
