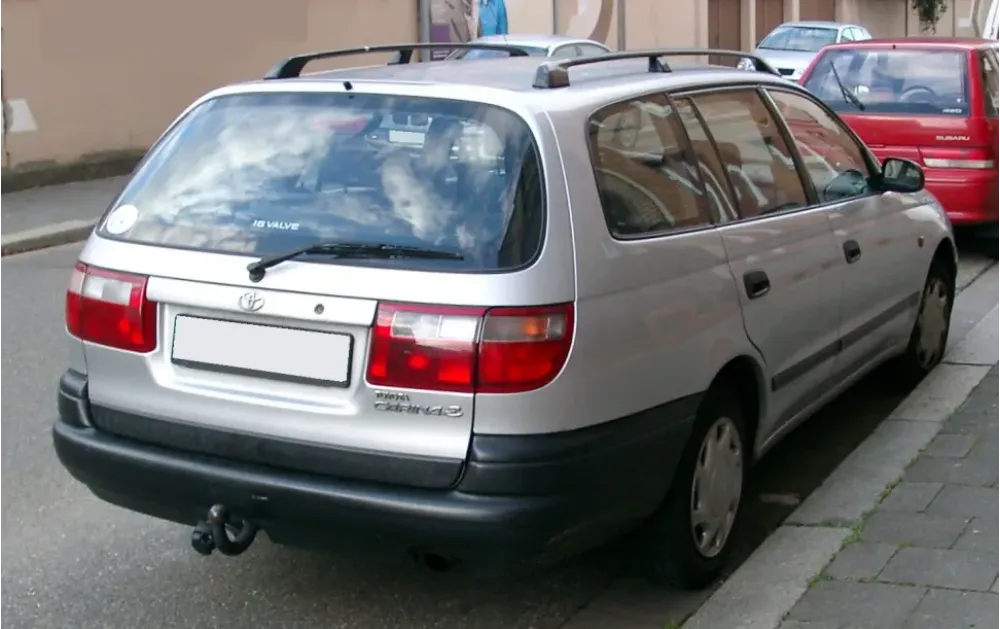

Toyota Carina E Wagon (T19) 1.8i 16V (107 Hp)
Overall Rating
Toyota Carina:
The Toyota Carina is an automobile which was manufactured by Toyota from December 1970 to December 2001. It was introduced as a sedan counterpart of the Celica, with which it originally shared a platform. Later, it was realigned to the Corona platform, but retained its performance image, with distinctive bodywork and interior — aimed at the youth market and remaining exclusive to Japanese Toyota dealerships Toyota Store. It was replaced in Japan by the Toyota Allion in 2001 and succeeded in Europe by the Toyota Avensis....(Read more on Wikipedia)
E Wagon (T19) Overview:
Toyota Carina (E Wagon (T19)). With 150 Nm of torque, it offers ample pulling power. Weighing only 1248 kg, it’s quite light. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 12.6 s). The top speed reaches 185 km/h. A car with an extended rear cargo area, combining passenger comfort with increased storage. Seating for 5 makes it ideal for daily use.
1.8i 16V (107 Hp) Verdict:
Performance Verdict
Offers adequate performance for daily driving and light loads, though not particularly spirited. Acceleration is acceptable for a family wagon.
Fuel Economy
Reasonable fuel consumption for a petrol engine of its size and era, making it a balanced choice for mixed driving.
Pros and Cons:
Pros:
- • Excellent reliability and durability, typical of Toyota vehicles of this era.
- • Spacious and practical wagon body style with a large boot capacity.
- • Comfortable ride quality, well-suited for long journeys.
- • Good fuel economy from the diesel and smaller petrol engines.
Cons:
- • Safety rating (2 stars Euro NCAP) is below modern standards.
- • Design is somewhat conservative and lacks excitement.
- • Performance can be uninspiring with the lower-powered engines.
- • Interior plastics, while durable, can feel basic compared to some rivals.
Specifications:
Specifications are compared to those of the previous generation(E Hatch (T19): 1994 - 1998).
| General: | |
|---|---|
| Brand: | Toyota |
| Model: | Carina |
| Generation: | E Wagon (T19) |
| Modification (Engine): | 1.8i 16V (107 Hp) |
| Start of production: | 1995 |
| End of production: | 1998 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Station wagon (estate) |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 107 Hp @ 5600 rpm. Same horsepower |
| Power per litre: | 60.7 Hp/l [15mm more] |
| Torque: | 150 Nm @ 2600 rpm. |
| Engine Model/Code: | 7A-FE More details about the engine 7A-FE |
| Engine displacement: | 1762 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC |
| Engine oil capacity: | 3.7 l |
| Coolant: | 5.6 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 81 mm mm |
| Piston Stroke: | 85.5 mm mm |
| Compression ratio: | 9.8:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - combined: | 7.2 l/100 km |
| Acceleration 0 - 100 km/h: | 12.6 sec |
| Acceleration 0 - 62 mph: | 12.6 sec |
| Maximum speed: | 185 km/h |
| Weight-to-power ratio: | 11.7 kg/Hp, 85.7 Hp/tonne |
| Weight-to-torque ratio: | 8.3 kg/Nm, 120.2 Nm/tonne |
| Acceleration 0 - 60 mph: | 12 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1248 |
| Max. weight: | 1720 |
| Max load: | 472 |
| Trunk (boot) space - maximum: | 1248 l |
| Trunk (boot) space - minimum: | 860 l |
| Fuel tank capacity: | 60 l |
| Size: | |
|---|---|
| Length: | 4545 mm mm [15mm more] |
| Width: | 1695 mm mm [Same width.] |
| Height: | 1470 mm mm [60mm more] |
| Wheelbase: | 2580 mm mm [Same wheelbase.] |
| Front track: | 1465 mm |
| Rear (Back) track: | 1445 mm |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Drum [bad for performance and cooling.] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 185/65 R14 H |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
