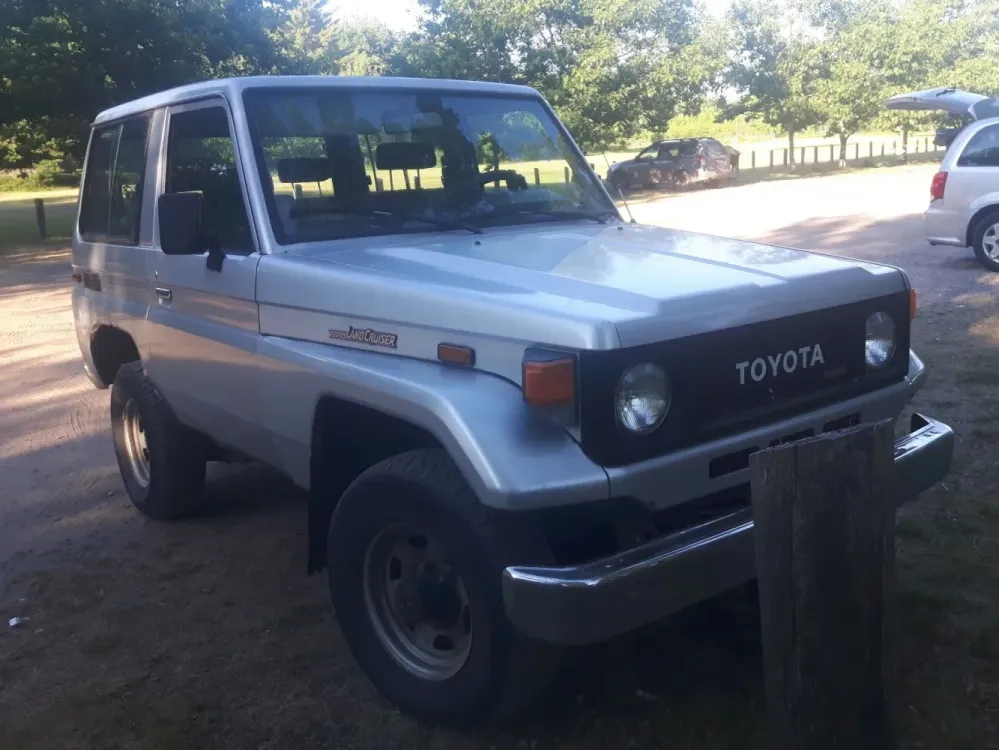

Toyota Land Cruiser J77 2.4 TD (LJ77) (90 Hp) 4WD
Overall Rating
Toyota Land Cruiser:
The Toyota Land Cruiser , also sometimes spelt as LandCruiser, is a series of four-wheel drive vehicles produced by the Japanese automobile manufacturer Toyota. It is Toyota's longest running series of models. As of 2019, the sales of the Land Cruiser totalled more than 10 million units worldwide.
Production of the first generation of the Land Cruiser began in 1951. The Land Cruiser has been produced in convertible, hardtop, station wagon and cab chassis body styles. The Land Cruiser's reliability and longevity have led to huge popularity, especially in Australia, where it is the best-selling body-on-frame, four-wheel drive vehicle. Toyota also extensively tests the Land Cruiser in the Australian outback – considered to be one of the toughest operating environments in both temperature and terrain. In Japan, the Land Cruiser was once exclusive to Toyota Japanese dealerships called Toyota Store....(Read more on Wikipedia)
J77 Overview:
Toyota Land Cruiser (J77). With 188 Nm of torque, it offers ample pulling power. All‑wheel drive provides excellent grip, ideal for off‑road use. A rugged vehicle built to handle rough terrains and challenging driving conditions. Seating for 5 makes it ideal for daily use.
2.4 TD (LJ77) (90 Hp) 4WD Verdict:
Performance Verdict
This 2.4L turbocharged diesel offers sufficient power for general driving and light off-roading, though it can feel somewhat sluggish, especially when fully loaded or tackling steep inclines. Best suited for less demanding tasks.
Fuel Economy
Offers reasonable fuel economy for its era and vehicle type, but don't expect modern diesel efficiency. Maintenance is straightforward, contributing to lower running costs.
Pros and Cons:
Pros:
- • Unmatched off-road capability and durability
- • Legendary reliability and mechanical simplicity
- • Strong resale value and global parts availability
- • Robust chassis and drivetrain for heavy-duty use
Cons:
- • Basic interior and limited comfort features
- • Modest on-road performance and refinement
- • Outdated safety features by modern standards
- • Fuel economy can be high for the larger engines
Specifications:
Specifications are compared to those of the previous generation(J77: 1989 - 1996).
| General: | |
|---|---|
| Brand: | Toyota |
| Model: | Land Cruiser |
| Generation: | J77 |
| Modification (Engine): | 2.4 TD (LJ77) (90 Hp) 4WD |
| Start of production: | 1990 |
| End of production: | 1996 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Off-road vehicle |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 90 Hp @ 4000 rpm. Same horsepower |
| Power per litre: | 36.8 Hp/l [50mm less] |
| Torque: | 188 Nm @ 2200 rpm. |
| Engine Model/Code: | 2L-T More details about the engine 2L-T |
| Engine displacement: | 2446 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Precombustion chamber injection |
| Engine aspiration: | Turbocharger |
| Valvetrain: | SOHC |
| Engine oil capacity: | 6.7 l |
| Coolant: | 10 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 92 mm mm |
| Piston Stroke: | 92 mm mm |
| Compression ratio: | 20:1 |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Space: | |
|---|---|
| Fuel tank capacity: | 90 l |
| Size: | |
|---|---|
| Length: | 4755 mm mm [50mm less] |
| Width: | 1690 mm mm [100mm less] |
| Height: | 1900 mm mm [35mm less] |
| Wheelbase: | 2730 mm mm [Same wheelbase.] |
| Front track: | 1415 mm |
| Rear (Back) track: | 1400 mm |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary. |
| Drive wheel | All wheel drive (4x4) |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Drum [bad for performance and cooling.] |
| Steering type | Cone worm with recirculation balls |
| Front suspension | Leaf spring |
| Rear suspension | Leaf spring |
