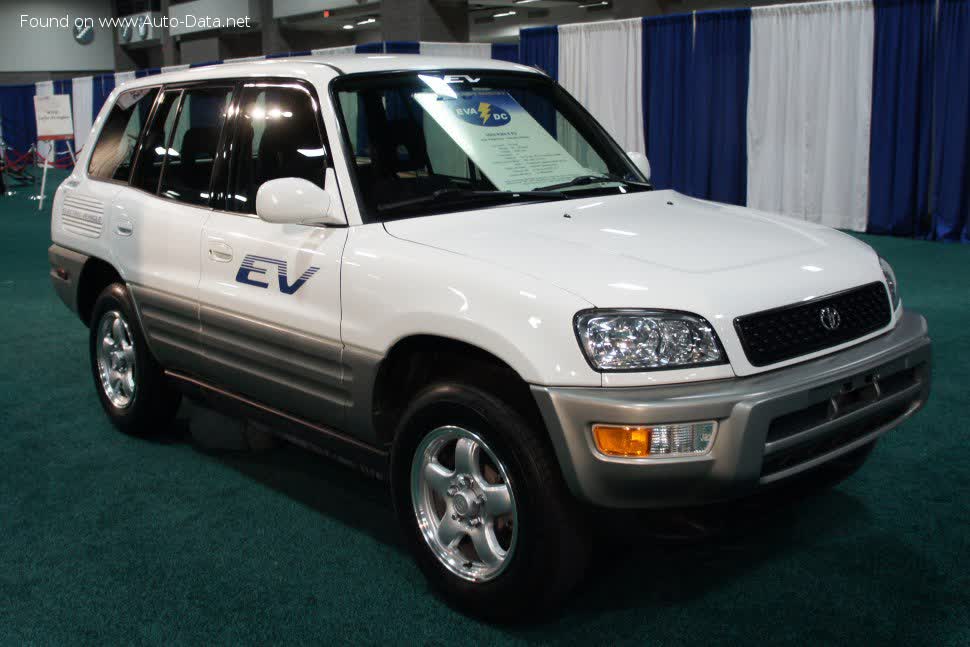

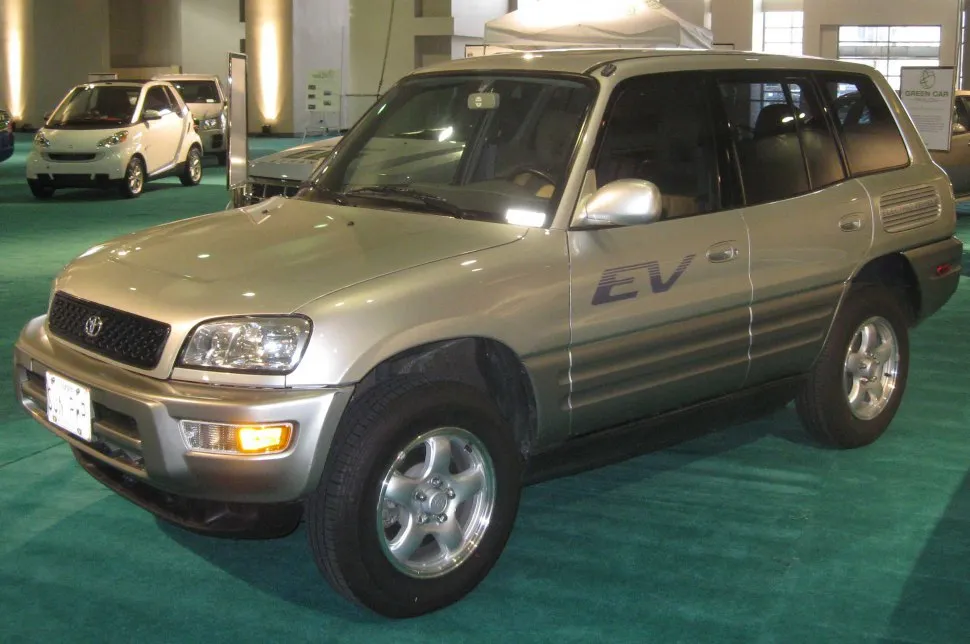

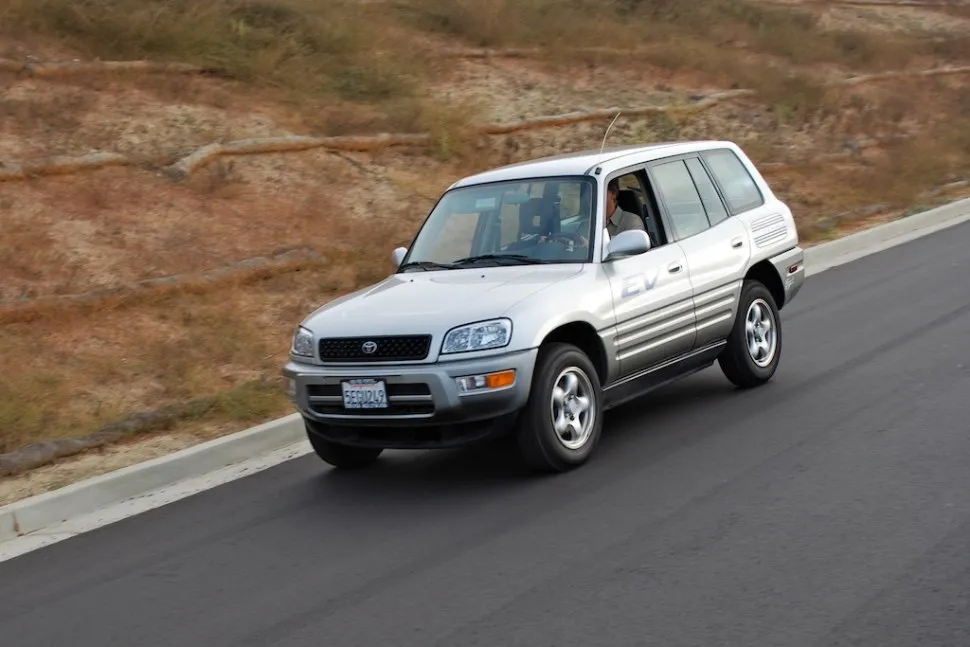

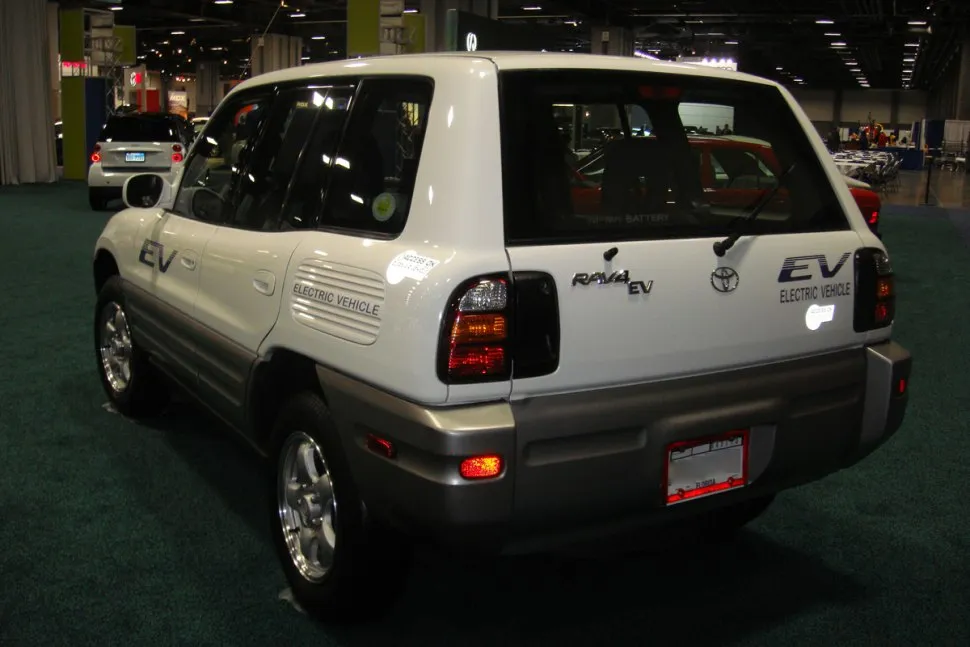

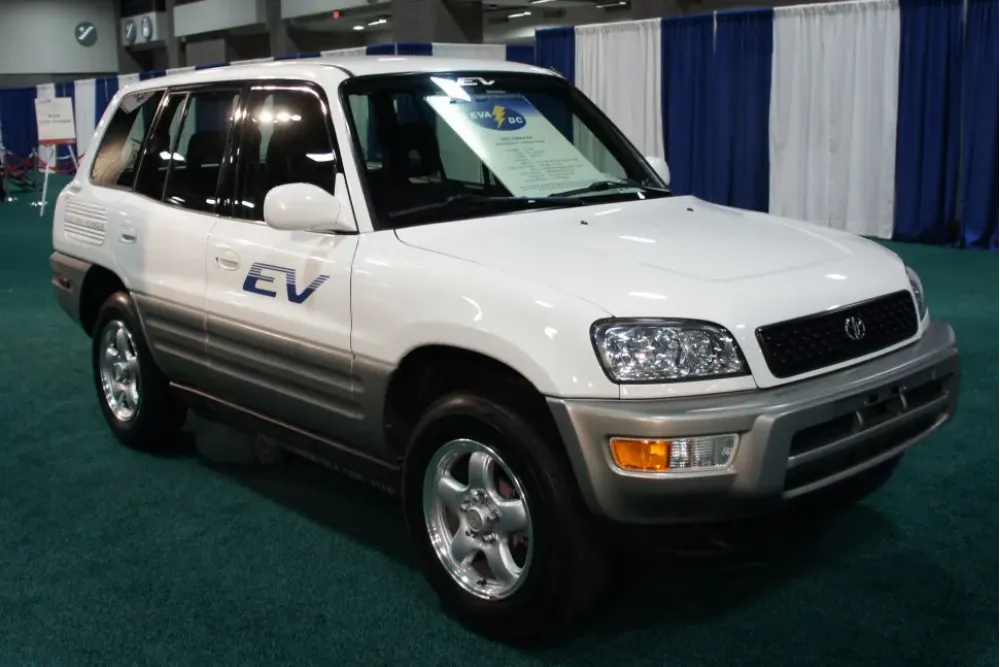

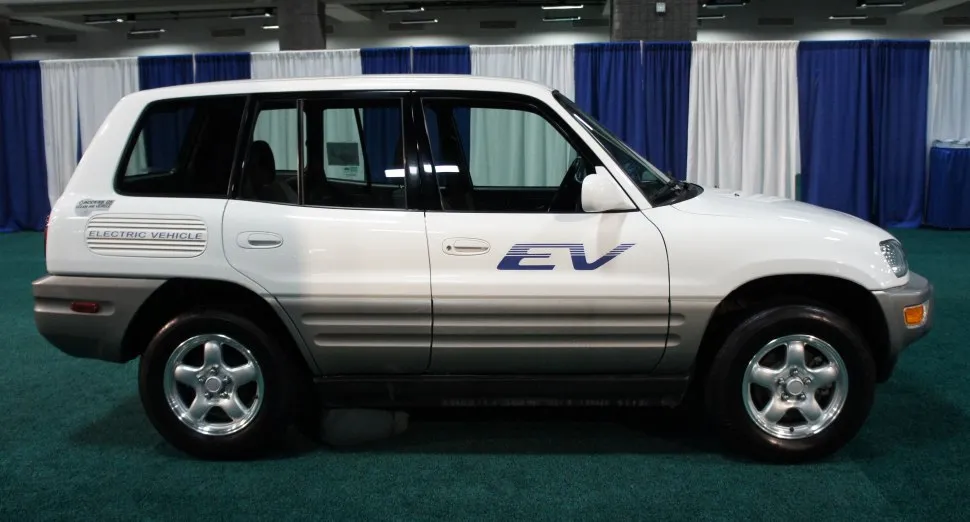

Everything you need to know about specifications and performance - Toyota RAV4 1997 - 27.36 kWh (68 Hp)
Overview:
How powerful is the electrical system in the Toyota RAV4 1997?
The power of the electrical system in the Toyota RAV4 1997 is 68 Hp @ 3100-6400 rpm. hp.
General:
Brand: Toyota
Model: RAV4
Generation: EV I (BEA11) 5-door
Modification (Engine): 27.36 kWh (68 Hp)
Start of production: October, 1997
End of production: September, 2003
Powertrain Architecture: BEV (Electric Vehicle)
Body type:Sports Utility Vehicle (SUV)
Seats: 5
Doors: 5
Engine:
Performance:
Fuel Type: Electricity
Maximum speed: 125 km/h, Electronically limited
Weight-to-power ratio: 22.6 kg/Hp, 44.2 Hp/tonne
Weight-to-torque ratio: 8.1 kg/Nm, 123.4 Nm/tonne
Electric system:
Gross battery capacity: 27.36 kWh
Battery technology: Nickel-metal hydride (NiMH)
Battery location: Below the floor
System power: 68 hp @ 3100-6400 rpm.
System torque: 190 nm @ 0-1500 rpm.
All-electric range: 215 km
Electric motor power: 68 hp @ 3100-4600 rpm.
Electric motor Torque: 190 nm @ 0-1500 rpm.
Electric motor location: Front axle, Transverse
Battery weight: 450 kg
Battery voltage: 288 V
Space:
Kerb Weight (kg): 1540
Max. weight (kg): 1935
Max load (kg): 395
dimensions:
Length: 3980 mm
Width: 1695 mm
Height: 1675 mm
wheelbase: 2410 mm
Front track: 1460 mm
Rear (Back) track: 1450 mm
Powertrain, Suspension and Brakes:
Drivetrain Architecture: One electric motor drives the front wheels.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 1 gears, automatic transmission
Front brakes: Ventilated discs
Rear brakes: Drum
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Electric Steering
Tires size: 195/80 R16 97S
Wheel rims size: 6.5J x 16
Front suspension: Independent type McPherson
Rear suspension: Double wishbone, Trailing arm
