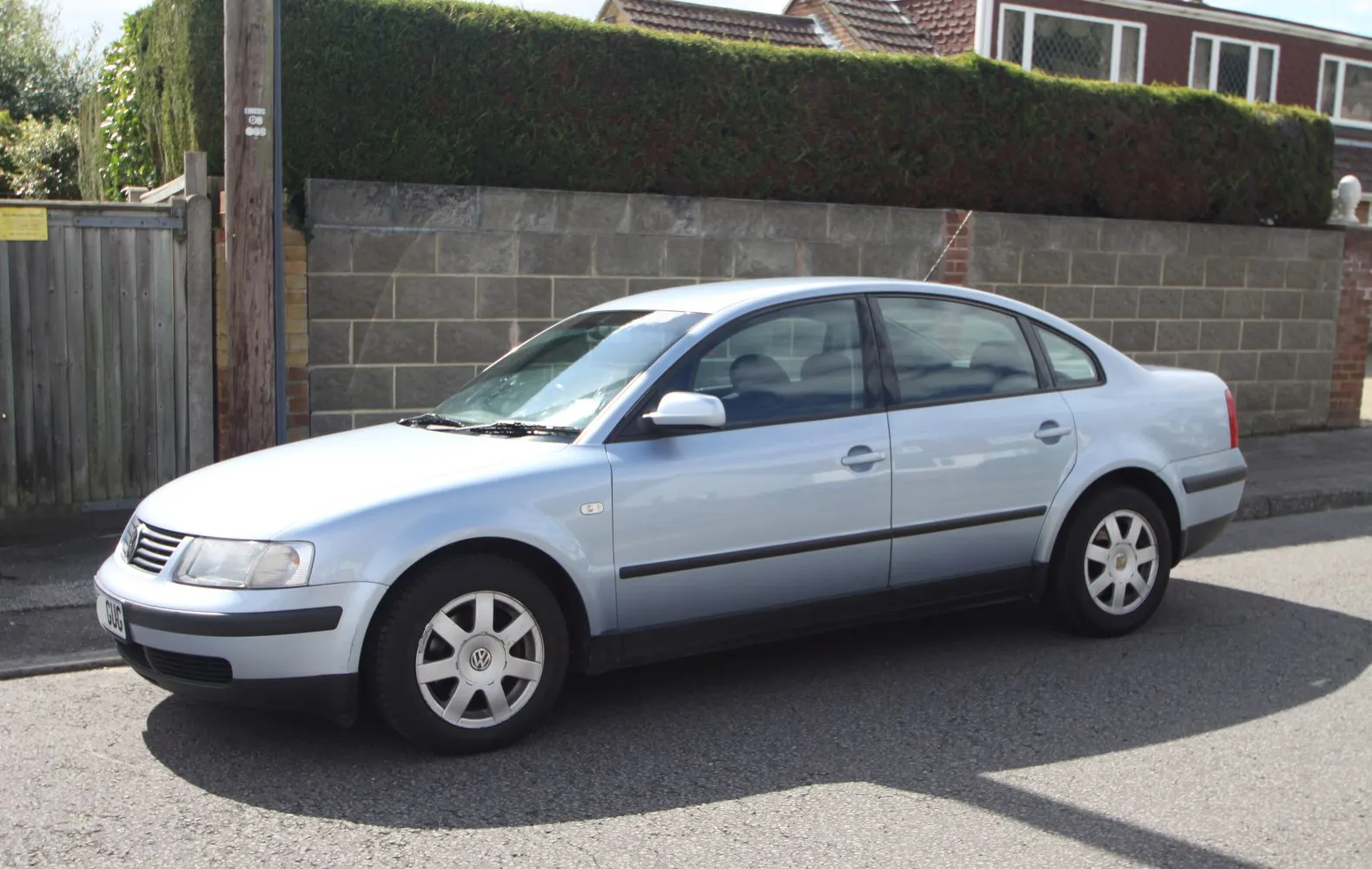

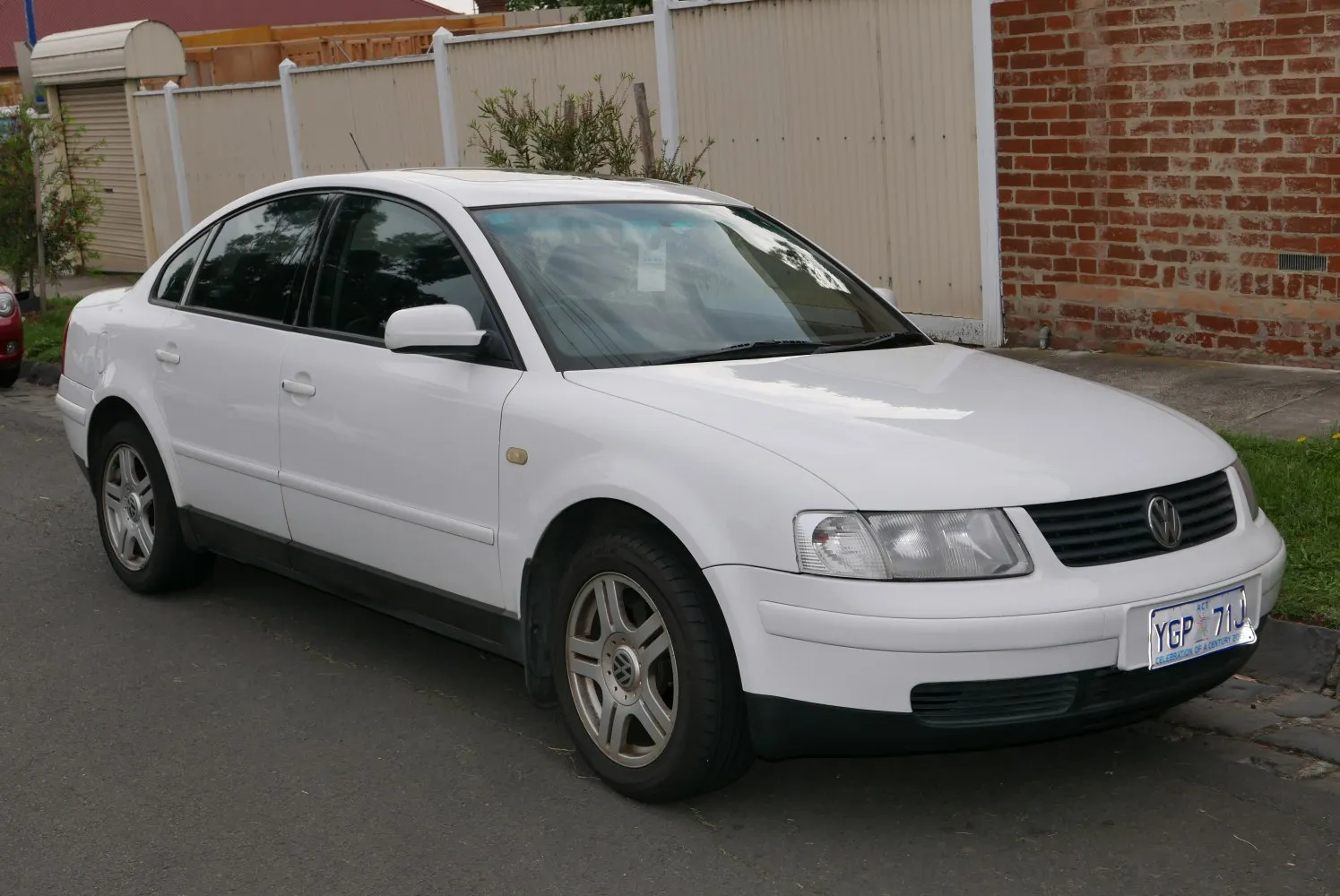

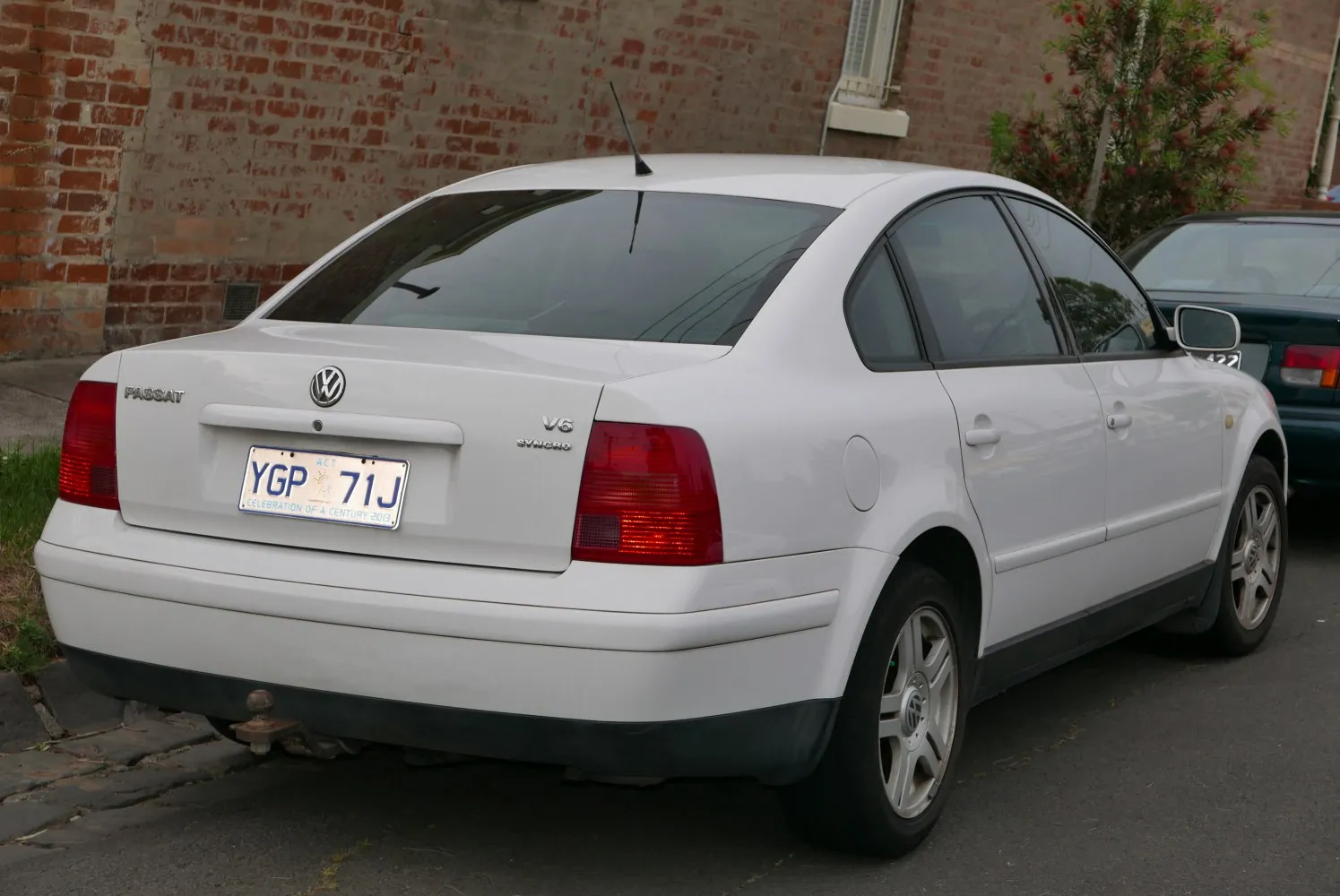

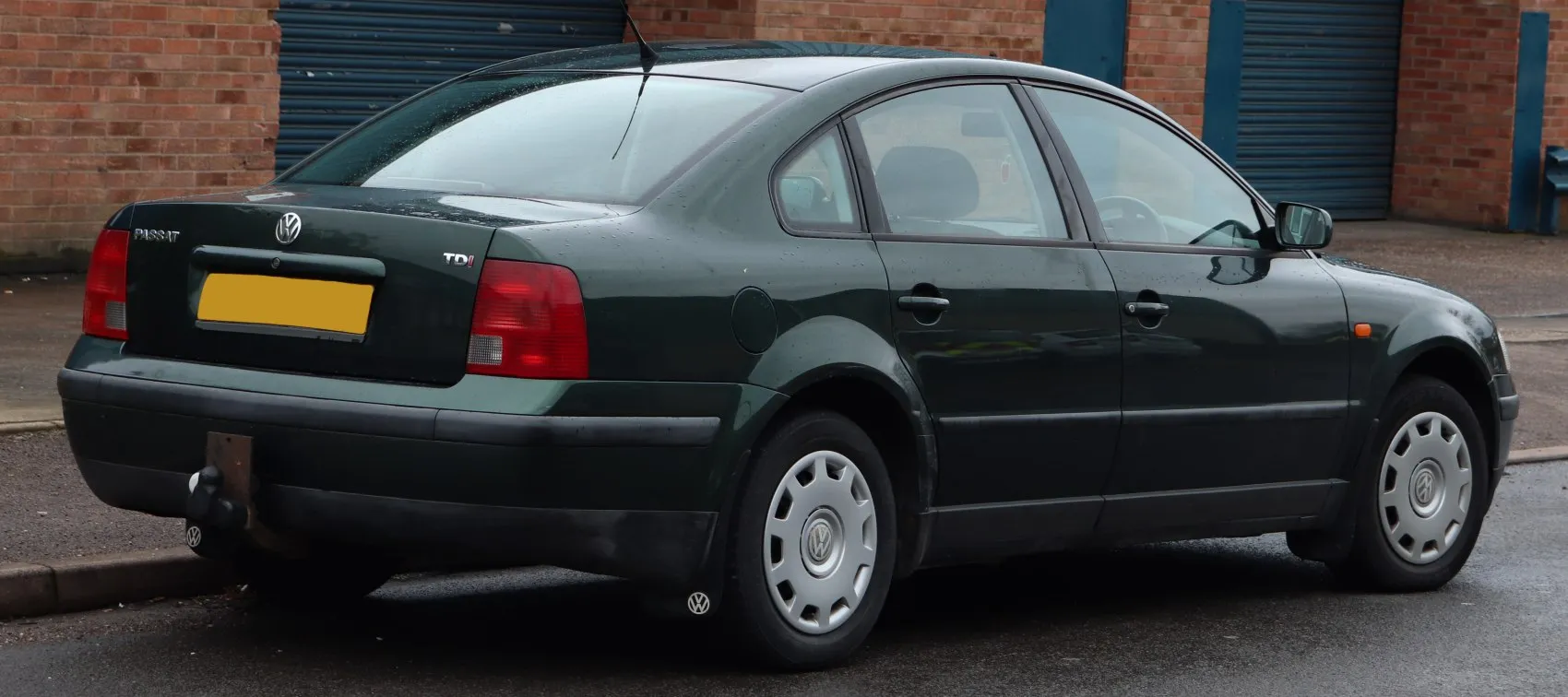

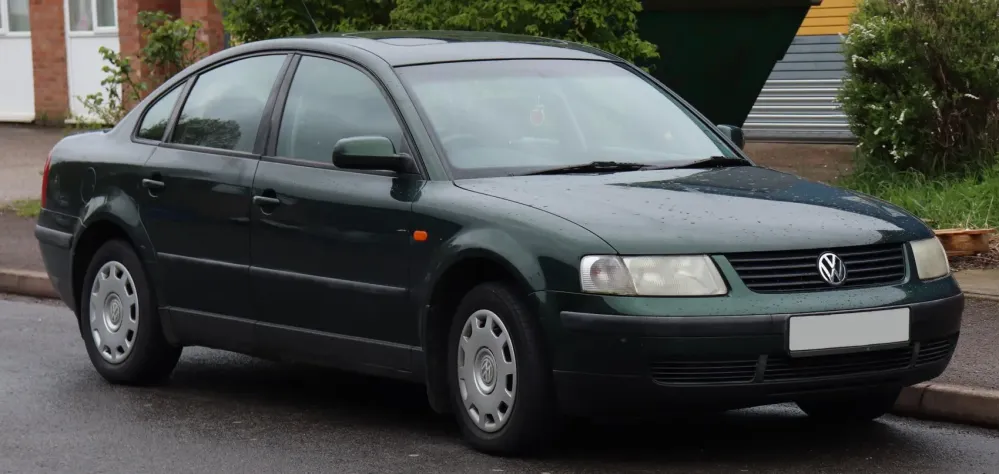

Volkswagen Passat B5 1.9 TDI (90 Hp) Automatic
Overall Rating
Volkswagen Passat:
The Volkswagen Passat is a nameplate of large family cars manufactured and marketed by the German automobile manufacturer Volkswagen since 1973 and also marketed variously as the Dasher, Santana, Quantum, Magotan, Corsar and Carat — in saloon, estate, and hatchback body styles.
A "four-door coupé" variant of the Passat with a lower roof was released in the North American market in 2008 as the Passat CC, which was then renamed to Volkswagen CC. The CC was succeeded by the Arteon in 2017....(Read more on Wikipedia)
B5 Overview:
Volkswagen Passat (B5). With 202 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~9 l/100km). With a weight of 1385 kg, it falls in the mid‑range. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 15.3 s). The top speed reaches 177 km/h. A four-door car with a separate trunk, ideal for families and daily commuting. Seating for 5 makes it ideal for daily use.
Achieved a respectable 3-star rating for adult occupant protection in 1997, which was competitive for its era, though modern standards are significantly higher.
1.9 TDI (90 Hp) Automatic Verdict:
Performance Verdict
Very slow acceleration, the automatic gearbox further dulls the modest power.
Fuel Economy
Still very economical, but the automatic slightly increases consumption compared to manual.
Pros and Cons:
Pros:
- • Premium interior quality and comfortable ride.
- • Wide range of efficient and powerful engines, especially TDI.
- • Solid build quality and refined driving experience.
- • Spacious cabin and large boot capacity.
- • Excellent value on the used car market.
Cons:
- • Some engines (e.g., 2.5 TDI V6, early 1.8T) have known reliability issues.
- • Automatic transmissions can be sluggish and less fuel-efficient.
- • Older models may suffer from rust and electrical gremlins.
- • Parts can be more expensive than some competitors.
- • Base petrol engines can feel underpowered.
Specifications:
Specifications are compared to those of the previous generation(B6: January, 2009 - July, 2010).
| General: | |
|---|---|
| Brand: | Volkswagen |
| Model: | Passat |
| Generation: | B5 |
| Modification (Engine): | 1.9 TDI (90 Hp) Automatic |
| Start of production: | July, 1998 |
| End of production: | September, 2000 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Sedan |
| Seats: | 5 |
| Doors: | 4 |
| Engine: | |
|---|---|
| Power: | 90 Hp @ 4000 rpm. Same horsepower |
| Power per litre: | 47.5 Hp/l [90mm less] |
| Torque: | 202 Nm @ 1900 rpm. |
| Engine Model/Code: | AHU, AHH More details about the engine AHU, AHH |
| Engine displacement: | 1896 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Direct injection |
| Engine aspiration: | Turbocharger, Intercooler |
| Valvetrain: | SOHC |
| Engine oil capacity: | 3.8 l |
| Coolant: | 7.5 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 79.5 mm |
| Piston Stroke: | 95.5 mm |
| Compression ratio: | 19.5:1 |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Fuel consumption (economy) - urban: | 9 l/100 km |
| Fuel consumption (economy) - extra urban: | 5.2 l/100 km |
| Fuel consumption (economy) - combined: | 6.5 l/100 km |
| Acceleration 0 - 100 km/h: | 15.3 sec |
| Acceleration 0 - 62 mph: | 15.3 sec |
| Maximum speed: | 177 km/h |
| Weight-to-power ratio: | 15.4 kg/Hp, 65 Hp/tonne |
| Weight-to-torque ratio: | 6.9 kg/Nm, 145.8 Nm/tonne |
| Acceleration 0 - 60 mph: | 14.5 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1385 |
| Max. weight: | 1860 |
| Max. roof load: | 100 kg |
| Max load: | 475 |
| Trunk (boot) space - maximum: | 745 l |
| Trunk (boot) space - minimum: | 475 l |
| Permitted trailer load with brakes (12%): | 1600 kg |
| Fuel tank capacity: | 62 l |
| Permitted trailer load without brakes: | 650 kg |
| Permitted towbar download: | 75 kg |
| Permitted trailer load with brakes (8%): | 1700 kg |
| Size: | |
|---|---|
| Length: | 4675 mm [90mm less] |
| Width: | 1740 mm [80mm less] |
| Height: | 1459 mm [13mm less] |
| Wheelbase: | 2707 mm [2mm less] |
| Front track: | 1498 mm |
| Rear (Back) track: | 1500 mm |
| Minimum turning circle (turning diameter): | 11.4 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 4 |
| Transmission type | Automatic |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc [above average] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R15 |
| Wheel rims size | 6J x 15 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Torsion |
