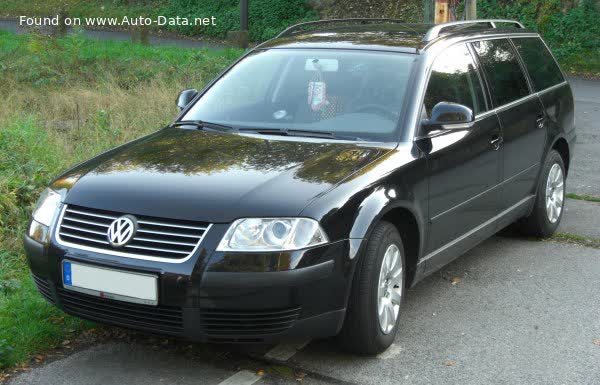

Volkswagen Passat Variant (B5.5) 4.0 W8 32V (275 Hp) 4MOTION
Overall Rating
Volkswagen Passat:
The Volkswagen Passat is a nameplate of large family cars manufactured and marketed by the German automobile manufacturer Volkswagen since 1973 and also marketed variously as the Dasher, Santana, Quantum, Magotan, Corsar and Carat — in saloon, estate, and hatchback body styles.
A "four-door coupé" variant of the Passat with a lower roof was released in the North American market in 2008 as the Passat CC, which was then renamed to Volkswagen CC. The CC was succeeded by the Arteon in 2017....(Read more on Wikipedia)
Variant (B5.5) Overview:
Volkswagen Passat (Variant (B5.5)). With 370 Nm of torque, it offers ample pulling power. With a weight of 1748 kg, it falls in the mid‑range. All‑wheel drive provides excellent grip, ideal for off‑road use. Acceleration is good (0–100 km/h in 6.8 s). The top speed reaches 250 km/h. A car with an extended rear cargo area, combining passenger comfort with increased storage. Seating for 5 makes it ideal for daily use.
4.0 W8 32V (275 Hp) 4MOTION Verdict:
Performance Verdict
Exceptional performance for a family wagon, offering sports car acceleration with the unique W8 engine and 4MOTION grip.
Fuel Economy
Very high fuel consumption, making it an expensive choice to run daily.
Pros and Cons:
Pros:
- • Wide range of engines, from highly economical diesels to the powerful W8.
- • Refined ride quality and comfortable, spacious interior, especially for long journeys.
- • High-quality interior materials and solid build quality for its era.
- • Excellent practicality with a large boot space in Variant form.
- • Available 4MOTION all-wheel drive for enhanced traction.
Cons:
- • Some engines (e.g., W8, 2.5 TDI V6) can be expensive to maintain and repair.
- • Fuel economy for petrol V6 and W8 models is very poor.
- • Older automatic transmissions can be slow and less efficient.
- • Steering can feel a bit numb compared to more driver-focused rivals.
- • Euro NCAP safety rating (3 stars) is dated by modern standards.
Specifications:
Specifications are compared to those of the previous generation(Variant (B5.5): 2000 - 2005).
| General: | |
|---|---|
| Brand: | Volkswagen |
| Model: | Passat |
| Generation: | Variant (B5.5) |
| Modification (Engine): | 4.0 W8 32V (275 Hp) 4MOTION |
| Start of production: | 2001 |
| End of production: | 2004 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Station wagon (estate) |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 275 Hp @ 6000 rpm. Same horsepower |
| Power per litre: | 68.8 Hp/l [Same length.] |
| Torque: | 370 Nm @ 2750 rpm. |
| Engine Model/Code: | BDN More details about the engine BDN |
| Engine displacement: | 3999 |
| Number of cylinders: | 8 |
| Engine configuration: | W-engine |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC |
| Engine oil capacity: | 8.3 l |
| Coolant: | 9 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 84 mm |
| Piston Stroke: | 90.17 mm |
| Compression ratio: | 10.8:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 19.4 l/100 km |
| Fuel consumption (economy) - extra urban: | 9.6 l/100 km |
| Fuel consumption (economy) - combined (NEDC): | 13.2 l/100 km |
| Fuel consumption (economy) - urban (NEDC): | 19.4 l/100 km |
| Fuel consumption (economy) - extra urban (NEDC): | 9.6 l/100 km |
| Fuel consumption (economy) - combined: | 13.2 l/100 km |
| Emission standard: | Euro 4 |
| Acceleration 0 - 100 km/h: | 6.8 sec |
| Acceleration 0 - 62 mph: | 6.8 sec |
| Maximum speed: | 250 km/h, Electronically limited |
| Weight-to-power ratio: | 6.4 kg/Hp, 157.3 Hp/tonne |
| Weight-to-torque ratio: | 4.7 kg/Nm, 211.7 Nm/tonne |
| Acceleration 0 - 60 mph: | 6.5 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1748 |
| Max. weight: | 2320 |
| Max. roof load: | 100 kg |
| Max load: | 572 |
| Trunk (boot) space - maximum: | 1545 l |
| Trunk (boot) space - minimum: | 450 l |
| Permitted trailer load with brakes (12%): | 2100 kg |
| Fuel tank capacity: | 80 l |
| Permitted trailer load without brakes: | 750 kg |
| Size: | |
|---|---|
| Length: | 4682 mm [Same length.] |
| Width: | 1746 mm [Same width.] |
| Height: | 1497 mm [1mm less] |
| Wheelbase: | 2702 mm [Same wheelbase.] |
| Front track: | 1511 mm |
| Rear (Back) track: | 1510 mm |
| Minimum turning circle (turning diameter): | 11.4 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle. |
| Drive wheel | All wheel drive (4x4) |
| Number of gears | 6 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Ventilated discs [Best for performance and cooling.] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 225/45 R17 |
| Wheel rims size | 7.5J x 17 |
| Front suspension | Independent multi-link suspension, Transverse stabilizer |
| Rear suspension | Double wishbone, Transverse stabilizer |
