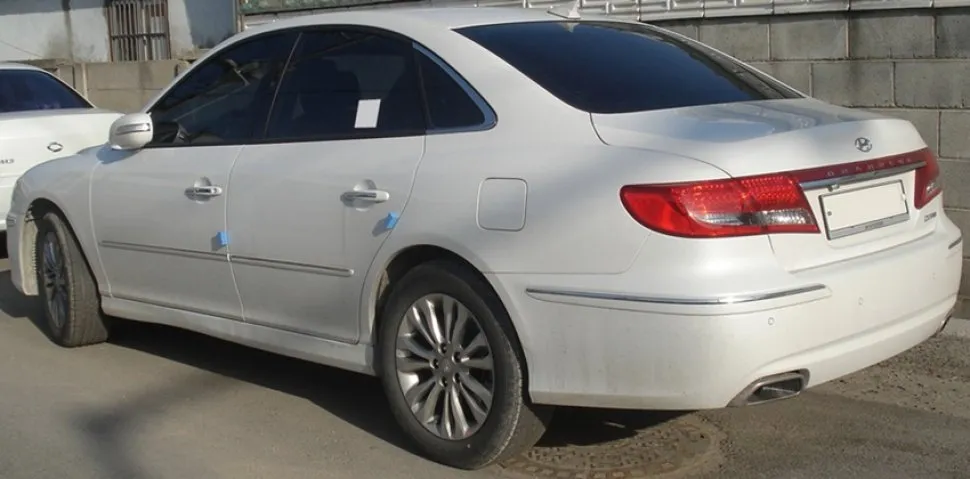

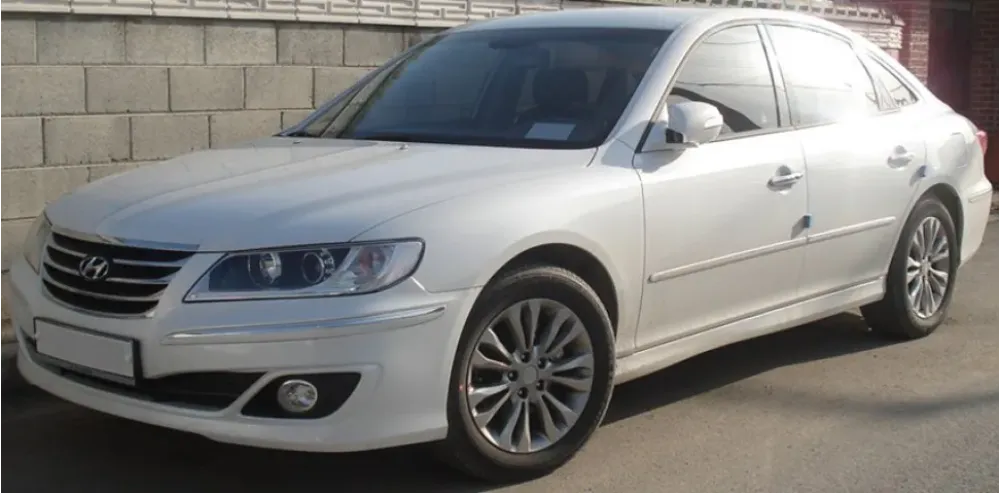

Hyundai Grandeur/Azera IV (TG, facelift 2009) 2.4 (179 Hp) Automatic
Hyundai Grandeur/Azera:
The Hyundai Grandeur is a executive sedan manufactured and marketed by the South Korean manufacturer Hyundai since 1986, over seven generations.
From 1986 to 1996, the Grandeur was the flagship for Hyundai's South Korean range before the Hyundai Dynasty was introduced. It is marketed globally as the Hyundai Azera. As the Azera, it was the flagship of Hyundai's US and Canadian lineup until the arrival of the Genesis sedan. After the launch of the separate Genesis brand, the Grandeur/Azera resumed its place as the company's flagship....(Read more on Wikipedia)
IV (TG, facelift 2009) Overview:
Hyundai Grandeur/Azera (IV (TG, facelift 2009)). With 230 Nm of torque, it offers ample pulling power. With a weight of 1565 kg, it falls in the mid‑range. Front‑wheel drive delivers efficiency and easy handling. The top speed reaches 216 km/h. A four-door car with a separate trunk, ideal for families and daily commuting. Seating for 5 makes it ideal for daily use.
Pros and Cons:
Pros:
- • Adequate and balanced power output (195 hp) for versatile driving.
- • Respectable acceleration of 9.2 sec, suitable for most driving situations.
- • Independent multi-link suspension for premium ride comfort.
- • Ventilated disc brakes for reliable cooling and stopping power.
- • Generous trunk capacity of 523 Liters.
Cons:
- • Previous generation model; may lack the latest driver-assist technologies.
Specifications:
Specifications are compared to those of the previous generation(IV (TG, facelift 2009): 2009 - 2011).
| General: |
| Brand: | Hyundai |
|---|
| Model: | Grandeur/Azera |
|---|
| Generation: | IV (TG, facelift 2009) |
|---|
| Modification (Engine): | 2.4 (179 Hp) Automatic |
|---|
| Start of production: | 2010 |
|---|
| End of production: | 2011 |
|---|
| Powertrain Architecture: | Internal Combustion engine |
|---|
| Body type: | Sedan |
|---|
| Seats: | 5 |
|---|
| Doors: | 4 |
|---|
| Engine: |
| Power: | 179 Hp @ 6000 rpm. Same horsepower |
|---|
| Power per litre: | 75.9 Hp/l [Same length.] |
|---|
| Torque: | 230 Nm @ 4000 rpm. |
|---|
| Engine Model/Code: | Theta II / G4KE More details about the engine Theta II / G4KE |
|---|
| Engine displacement: | 2359 |
|---|
| Number of cylinders: | 4 |
|---|
| Engine configuration: | Inline |
|---|
| Number of valves per cylinder: | 4 |
|---|
| Fuel injection system: | Multi-port manifold injection |
|---|
| Engine aspiration: | Naturally aspirated engine |
|---|
| Valvetrain: | DOHC, CVVT |
|---|
| Engine oil capacity: | 4.1 l |
|---|
| Coolant: | 6.8 l |
|---|
| Engine layout: | Front, Transverse |
|---|
| Cylinder Bore: | 88 mm |
|---|
| Piston Stroke: | 97 mm |
|---|
| Compression ratio: | 10.5:1 |
|---|
| Performance: |
| Fuel Type: | Petrol (Gasoline) |
|---|
| Maximum speed: | 216 km/h |
|---|
| Weight-to-power ratio: | 8.7 kg/Hp, 114.4 Hp/tonne |
|---|
| Weight-to-torque ratio: | 6.8 kg/Nm, 147 Nm/tonne |
|---|
| Space: |
| Kerb Weight: | 1565 |
|---|
| Max. weight: | 1890 |
|---|
| Max load: | 325 |
|---|
| Trunk (boot) space - minimum: | 523 l |
|---|
| Fuel tank capacity: | 75 l |
|---|
| Size: |
| Length: | 4895 mm [Same length.] |
|---|
| Width: | 1850 mm [Same width.] |
|---|
| Height: | 1490 mm [Same height.] |
|---|
| Wheelbase: | 2780 mm [Same wheelbase.] |
|---|
| Front track: | 1580 mm |
|---|
| Rear (Back) track: | 1565 mm |
|---|
| Ride height (ground clearance): | 162 mm |
|---|
| Minimum turning circle (turning diameter): | 12.5 m [above average] |
|---|
| Powertrain: |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
|---|
| Drive wheel | Front wheel drive |
|---|
| Number of gears | 6 |
|---|
| Transmission type | Automatic |
|---|
| Front brakes | Ventilated discs [Best for performance and cooling.] |
|---|
| Rear brakes | Disc [above average] |
|---|
| Assisting systems | ABS (Anti-lock braking system) |
|---|
| Steering type | Steering rack and pinion |
|---|
| Tires size | 225/60 R16 H |
|---|
| Wheel rims size | 6.5J x 16 |
|---|
| Front suspension | Double wishbone |
|---|
| Rear suspension | Independent multi-link suspension |
|---|
