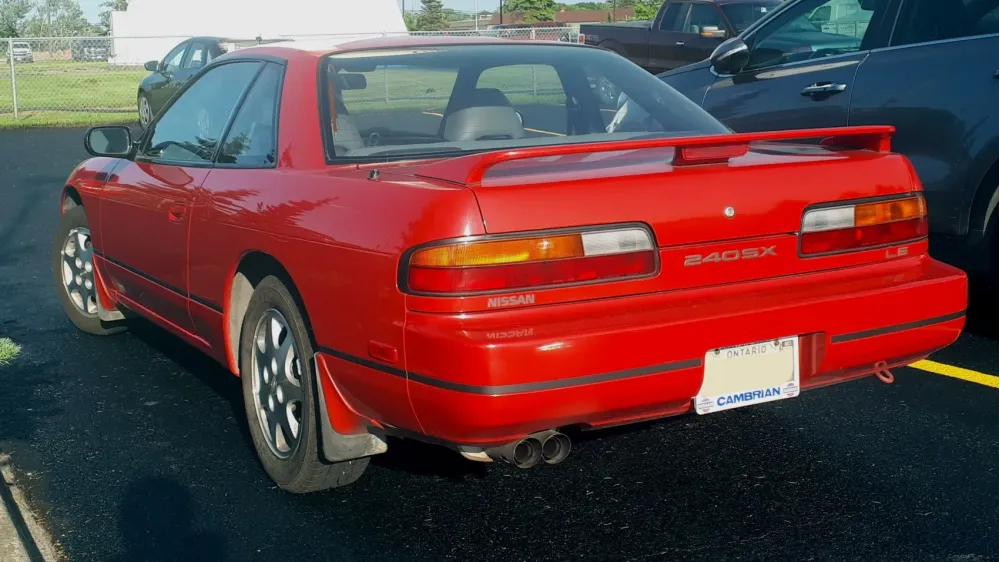

Nissan 240SX Coupe (S13 facelift 1991) 2.4 (155 Hp)
Overall Rating
Nissan 240SX:
The Nissan 240SX is a sports compact car that was introduced to the North American market by Nissan in 1988 for the 1989 model year, replacing the outgoing 200SX model. Two distinct generations of the 240SX, the S13 the S14 were produced, based on the Nissan S platform.
All 240SXs were equipped with the 2. 4-liter KA inline-four engine series. The KA24E has a single overhead cam while the KA24DE has dual overhead cams....(Read more on Wikipedia)
Coupe (S13 facelift 1991) Overview:
Nissan 240SX (Coupe (S13 facelift 1991)). With 217 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~10.7 l/100km). Weighing only 1205 kg, it’s quite light. Rear‑wheel drive offers dynamic handling and sporty feedback. A two-door car with a fixed roof, known for its sporty design and dynamic performance. Seating for 4 makes it ideal for daily use.
2.4 (155 Hp) Verdict:
Performance Verdict
The naturally aspirated KA24DE offers adequate power for daily driving and spirited cruising, delivering a respectable 155 Hp and 217 Nm of torque. While not a high-revving sports engine, its strong low-end torque makes it tractable and responsive, though it can feel underpowered for aggressive performance driving without modifications.
Fuel Economy
With urban consumption around 10.7 l/100 km and extra-urban at 8.4 l/100 km, the 2.4L KA24DE's fuel economy is moderate for its displacement and era. It's not particularly efficient by modern standards but acceptable for a 90s sports coupe.
Pros and Cons:
Pros:
- • Excellent chassis balance and handling characteristics
- • Robust and reliable KA24DE engine
- • Strong aftermarket support for modifications
- • Iconic JDM styling and pop-up headlights
- • Rear-wheel-drive layout ideal for enthusiasts
Cons:
- • Stock KA24DE engine can feel underpowered for some
- • Aging interior plastics and potential for rattles
- • Rust can be an issue in certain climates
- • Finding unmolested examples is increasingly difficult
- • Lacks modern safety features
Specifications:
Specifications are compared to those of the previous generation(Fastback (S13): 1989 - 1990).
| General: | |
|---|---|
| Brand: | Nissan |
| Model: | 240SX |
| Generation: | Coupe (S13 facelift 1991) |
| Modification (Engine): | 2.4 (155 Hp) |
| Start of production: | 1991 |
| End of production: | 1994 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Coupe |
| Seats: | 4 |
| Doors: | 2 |
| Engine: | |
|---|---|
| Power: | 155 Hp @ 5600 rpm. Same horsepower |
| Power per litre: | 64.9 Hp/l [Same length.] |
| Torque: | 217 Nm @ 4400 rpm. |
| Engine Model/Code: | KA24DE More details about the engine KA24DE |
| Engine displacement: | 2389 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC |
| Engine oil capacity: | 3.5 l |
| Coolant: | 6.7 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 89 mm mm |
| Piston Stroke: | 96 mm mm |
| Compression ratio: | 8.6:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 10.7 l/100 km |
| Fuel consumption (economy) - extra urban: | 8.4 l/100 km |
| Weight-to-power ratio: | 7.8 kg/Hp, 128.6 Hp/tonne |
| Weight-to-torque ratio: | 5.6 kg/Nm, 180.1 Nm/tonne |
| Space: | |
|---|---|
| Kerb Weight: | 1205 |
| Trunk (boot) space - maximum: | 244 l |
| Fuel tank capacity: | 60 l |
| Permitted trailer load without brakes: | 206 kg |
| Permitted towbar download: | 110 kg |
| Size: | |
|---|---|
| Length: | 4521 mm mm [Same length.] |
| Width: | 1689 mm mm [Same width.] |
| Height: | 1290 mm mm [Same height.] |
| Wheelbase: | 2474 mm mm [Same wheelbase.] |
| Front track: | 1466 mm |
| Rear (Back) track: | 1461 mm |
| Minimum turning circle (turning diameter): | 9.4 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs, 252 mm [Best for performance and cooling.] |
| Rear brakes | Disc, 258 mm [above average] |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | Front wheel tires: 195/60 R15; 205/60 R15 |
| Wheel rims size | Front wheel rims: 6J x 15 |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Dependent, multi-link spring with telescopic shock absorbers, Transverse stabilizer, Trailing arm |
