Everything you need to know about specifications and performance - Porsche Panamera 2023 - Turbo 4.0 V8 (680 Hp) E-Hybrid PDK

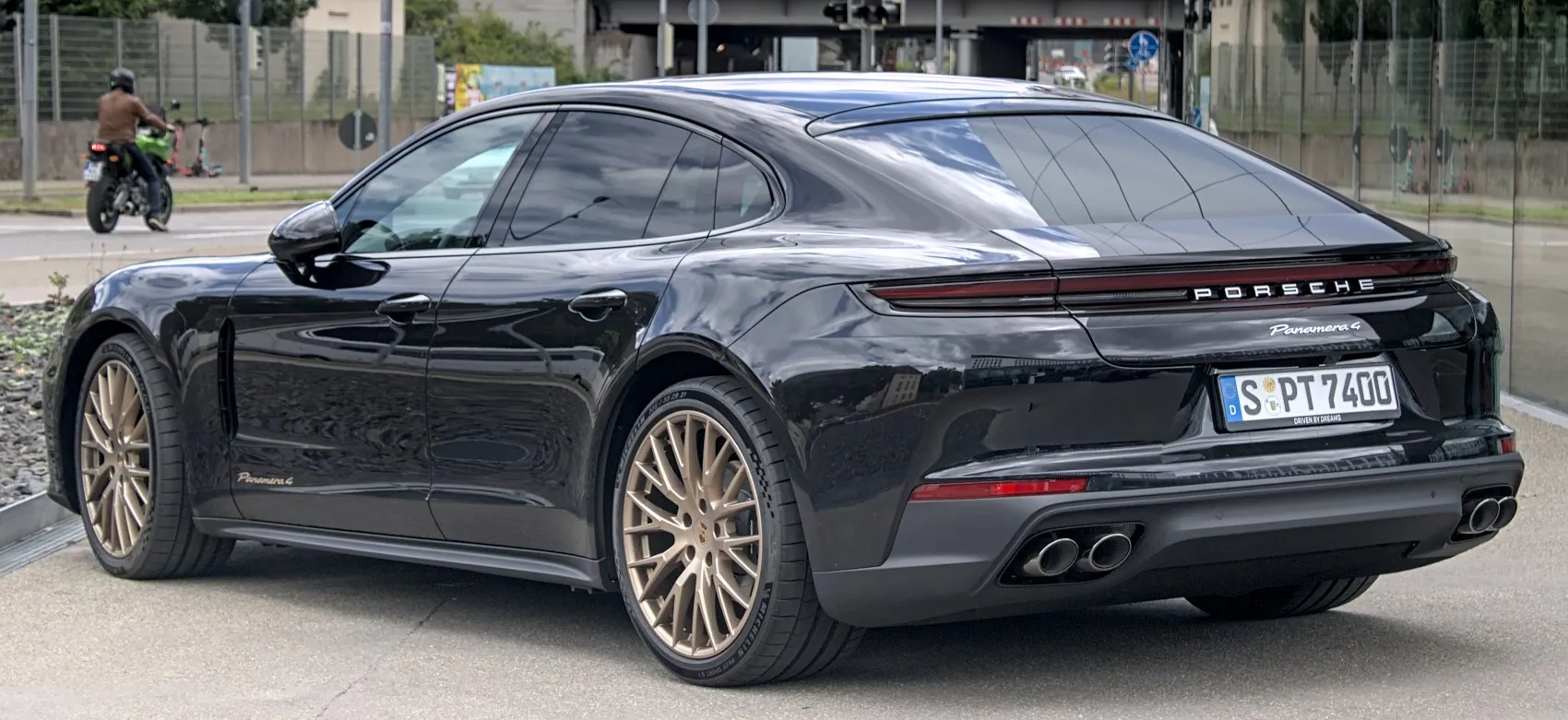

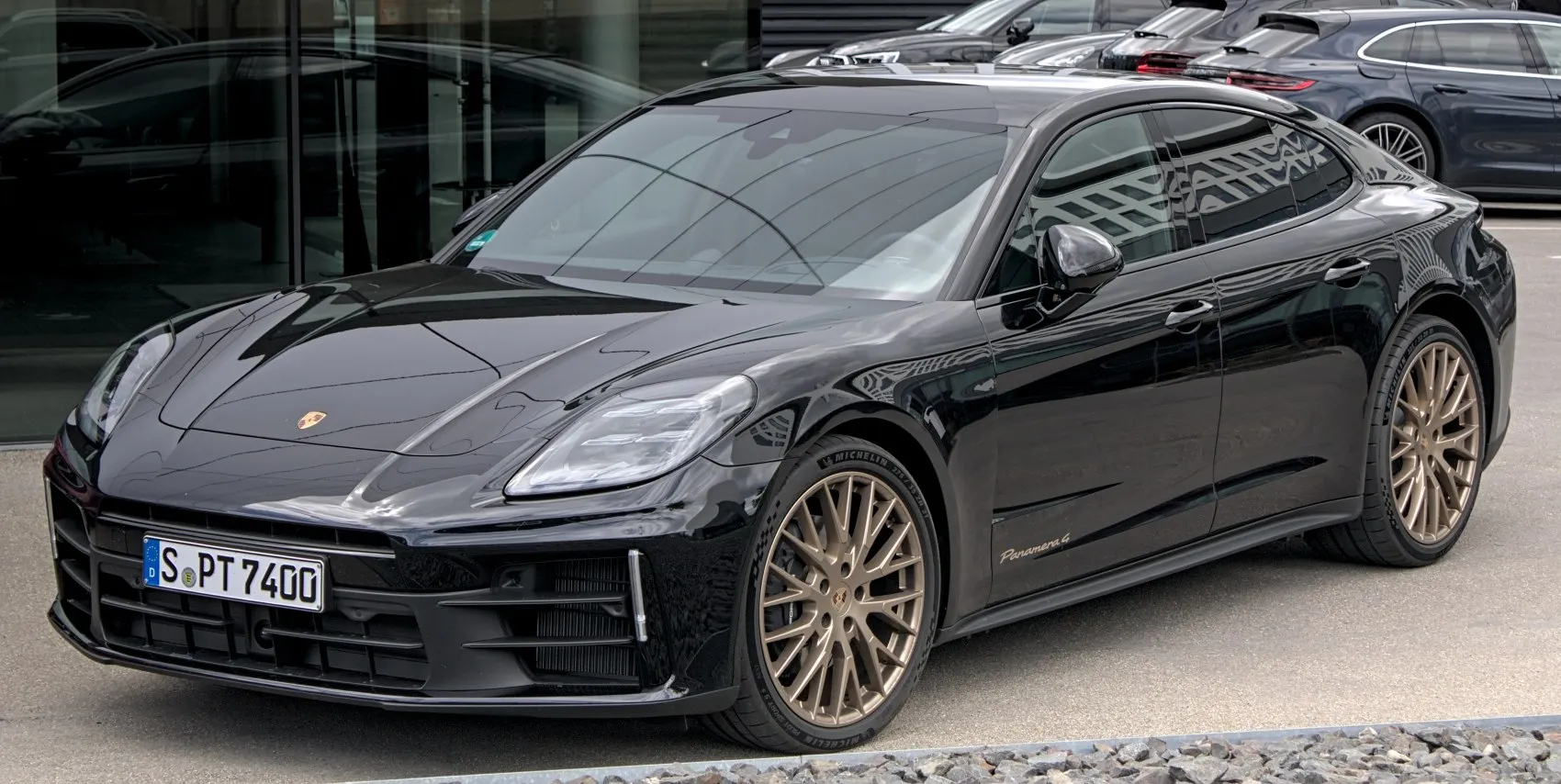

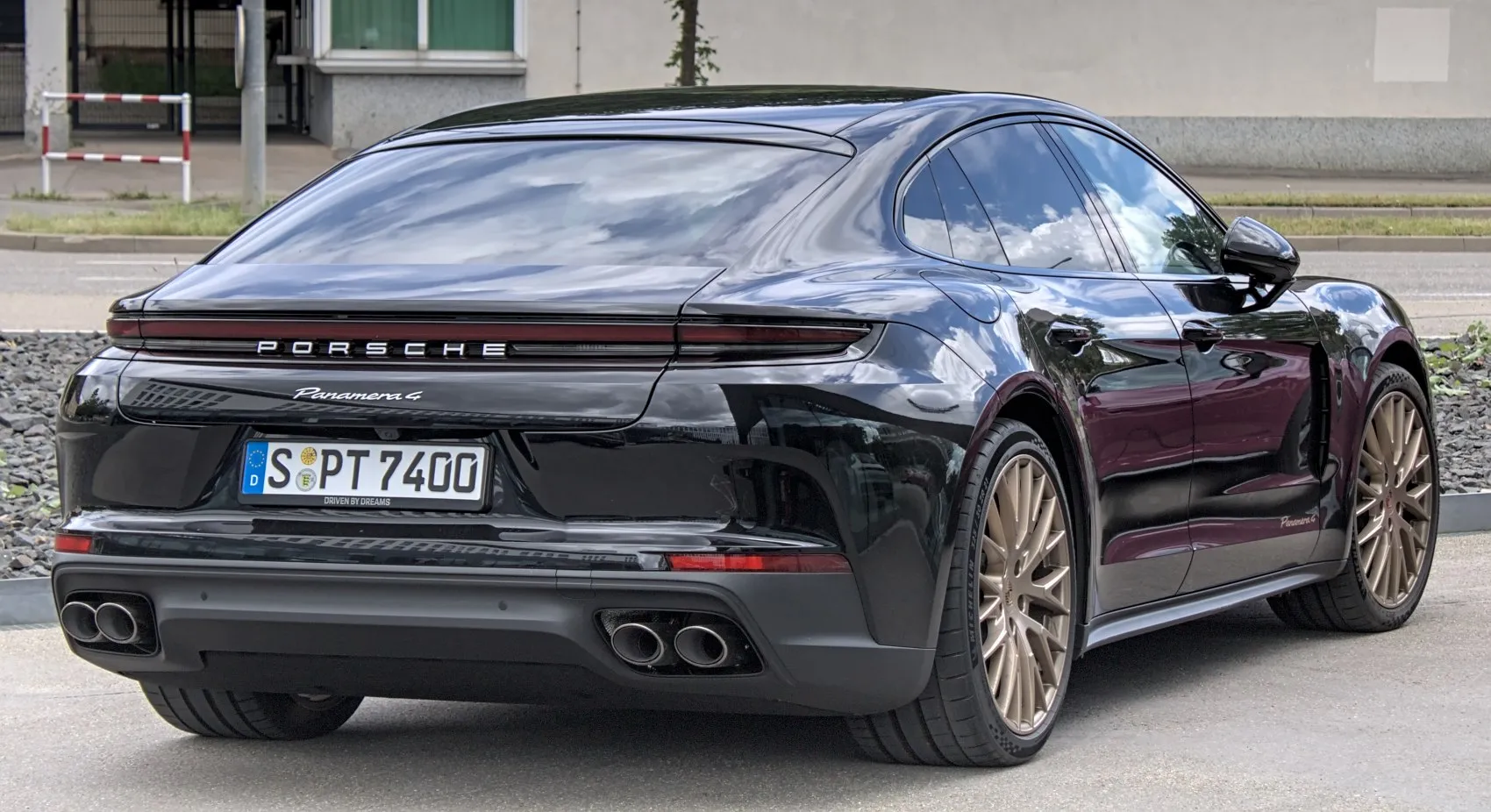

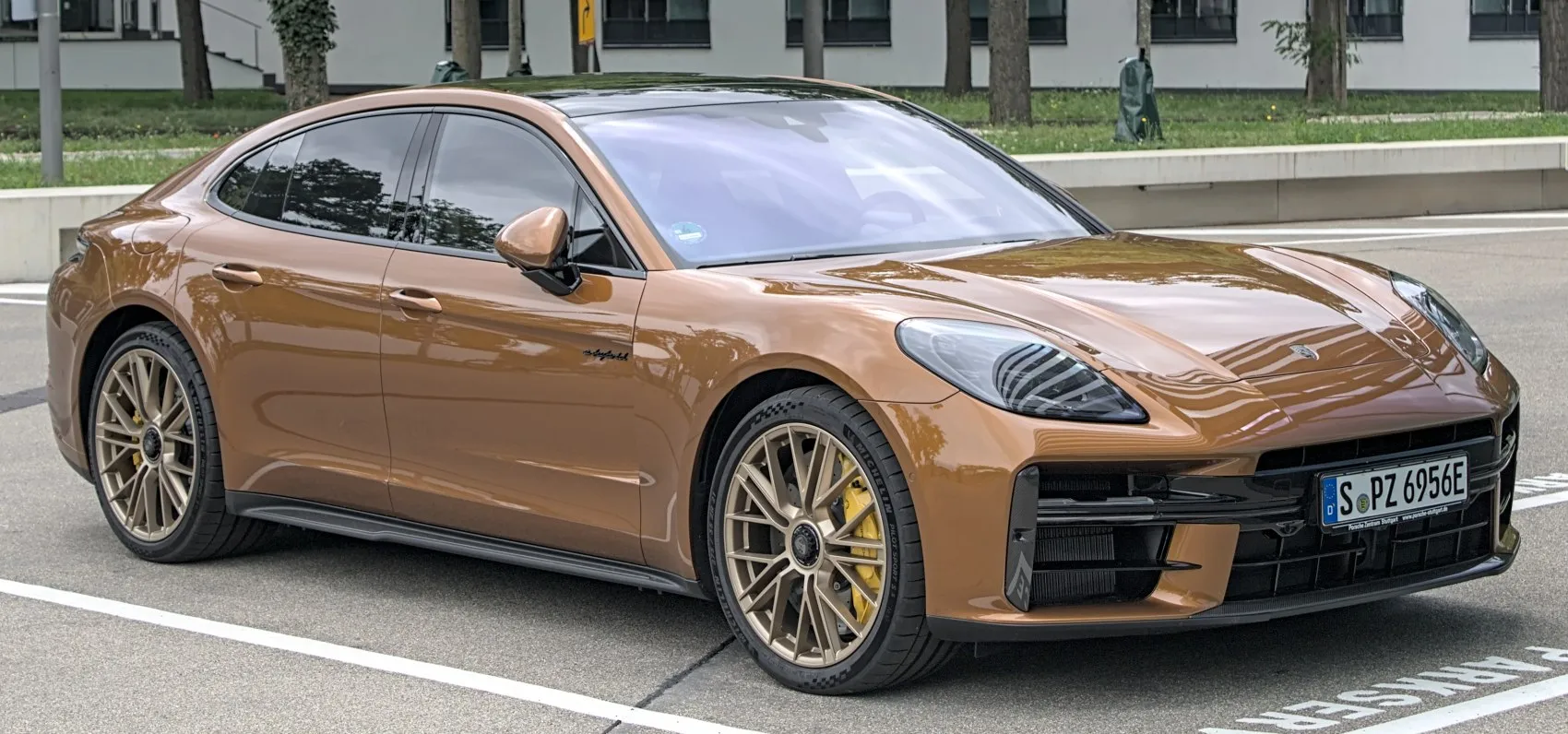

Full specifications and technical details 2023 Porsche Panamera (G3) Turbo 4.0 V8 (680 Hp) E-Hybrid PDK

Overview:

What is the engine capacity of a Porsche Panamera 2023?
The engine capacity of the Porsche Panamera 2023 is 3996.

Porsche Panamera 2023 How many horsepower?
The engine power of the Porsche Panamera 2023 is 519 Hp @ 6000 rpm..

What is the Porsche Panamera 2023 engine?
Porsche Panamera 2023 engine is EA825. (Click to see other cars using the same engine)

How powerful is the electrical system in the Porsche Panamera 2023?
The power of the electrical system in the Porsche Panamera 2023 is 680 Hp hp.

What is the recommended oil for a Porsche Panamera 2023 engine?
The recommended oil for a Porsche Panamera 2023 car engine is 0W-20.

What type of camshaft transmission system is used in a Porsche Panamera 2023 engine?
chain is used to transmit motion.

General:

Brand: Porsche

Model: Panamera

Generation: G3

Modification (Engine): Turbo 4.0 V8 (680 Hp) E-Hybrid PDK

Start of production: November, 2023

End of production:

Powertrain Architecture:Plug-In Hybrid Electric Vehicles (PHEVs)

Body type:Liftback

Seats: 4

Doors: 5

Engine:

Engine systems: Start & Stop System

Power: 519 hp @ 6000 rpm.

Power per litre: 129.9 hp/l

Torque: 770 nm @ 2330-4000 rpm.

Engine Model/Code:EA825

Engine displacement: 3996

Number of cylinders: 8

Engine configuration: V-engine

Number of valves per cylinder: 4

Fuel injection system: Direct injection

Engine aspiration: BiTurbo, Intercooler

Valvetrain: DOHC

Engine layout: Front, Longitudinal

Cylinder Bore: 86 mm

Piston Stroke: 86 mm

Maximum engine speed: 6800 rpm.

recommended engine oil: 0W-20

euro standards: EURO 6d-TEMP

engine lifespan (km): ~300 000

weight (kg): 231

timing drive: chain

Show more details about this engine

Performance:

Fuel Type: Petrol / electricity

Combined fuel consumption (WLTP): 1.2-1.7 l/100 km

Emission standard: Euro 6 EA

Acceleration 0 - 100 km/h: 3.2 sec

Acceleration 0 - 62 mph: 3.2 sec

Maximum speed: 315 km/h

Weight-to-power ratio: 3.5 kg/Hp, 288.1 Hp/tonne

Weight-to-torque ratio: 2.5 kg/Nm, 394.1 Nm/tonne

Max speed (electric): 140 km/h

Acceleration 0 - 200 km/h: 11.3 sec

Acceleration 0 - 60 mph: 3 sec

Electric system:

Net (usable) battery capacity: 21.8 kWh

Gross battery capacity: 25.9 kWh

Battery technology: Lithium-ion (Li-Ion)

Battery location: Under the trunk

System power: 680 hp

System torque: 930 nm

All-electric range: 76-91 km

Electric motor power: 190 hp

Electric motor Torque: 450 nm

Average Energy consumption: 27.5-29.9 kWh/100 km

Electric motor location: Between the combustion Engine and the transmission

Average Energy consumption (WLTP): 27.5-29.9 kWh/100 km

All-electric range (WLTP): 76-91 km

Space:

Kerb Weight (kg): 2360

Max. weight (kg): 2830

Max. roof load: 75 kg

Max load (kg): 470

Trunk (boot) space - maximum: 1255 l

Trunk (boot) space - minimum: 421 l

Fuel tank capacity: 80 l

dimensions:

Ramp-over (brakeover) angle: 10.9°

Length: 5054 mm

Width: 1937 mm

Height: 1421 mm

wheelbase: 2950 mm

Width including mirrors: 2165 mm

Ride height (ground clearance): 132 mm

Minimum turning circle (turning diameter): 11.9 m

Approach angle: 12.7°

Departure angle: 16.4°

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.

Drive wheel: All wheel drive (4x4)

Number of gears and type of gearbox: 8 gears, automatic transmission PDK

Front brakes: Ventilated discs

Rear brakes: Ventilated discs

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Electric Steering

Tires size: Front wheel tires: 275/40 R20; 275/35 R21

Wheel rims size: Front wheel rims: 9.5J x 20; 9.5J x 21

Front suspension: Double wishbone, Air suspension

Rear suspension: Independent multi-link suspension, Air suspension
