Everything you need to know about specifications and performance - Toyota Avensis 2006 - 2.2 D-CAT (177 Hp)

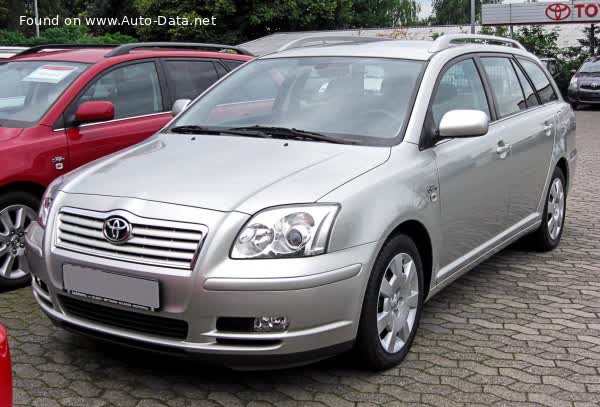

Full specifications and technical details 2006 Toyota Avensis II Wagon 2.2 D-CAT (177 Hp)

Overview:

What is the engine capacity of a Toyota Avensis 2006?
The engine capacity of the Toyota Avensis 2006 is 2231.

Toyota Avensis 2006 How many horsepower?
The engine power of the Toyota Avensis 2006 is 177 Hp @ 4000 rpm..

What is the Toyota Avensis 2006 engine?
Toyota Avensis 2006 engine is 2AD-FHV. (Click to see other cars using the same engine)

How much gasoline does a Toyota Avensis 2006 consume?
The Toyota Avensis 2006 consumes 6.1 liters of gasoline per 100 km

What is the recommended oil for a Toyota Avensis 2006 engine?
The recommended oil for a Toyota Avensis 2006 car engine is 0W-30, 5W-30.

What type of camshaft transmission system is used in a Toyota Avensis 2006 engine?
chain is used to transmit motion.

General:

Brand: Toyota

Model: Avensis

Generation: II Wagon

Modification (Engine): 2.2 D-CAT (177 Hp)

Start of production: June, 2006

End of production: January, 2009

Powertrain Architecture: Internal Combustion Engine

Body type:Station wagon

Seats: 5

Doors: 5

Engine:

Power: 177 hp @ 4000 rpm.

Power per litre: 79.3 hp/l

Torque: 400 nm @ 2000-2600 rpm.

Engine Model/Code:2AD-FHV

Engine displacement: 2231

Number of cylinders: 4

Engine configuration: Inline

Number of valves per cylinder: 4

Fuel injection system: Diesel Commonrail

Engine aspiration: Turbocharger, Intercooler

Valvetrain: DOHC

Engine oil capacity: 5.9 l

Coolant: 8 l

Engine layout: Front, Transverse

Cylinder Bore: 86 mm

Piston Stroke: 96 mm

Compression ratio: 15.8:1

recommended engine oil: 0W-30, 5W-30

euro standards: EURO 5

engine lifespan (km): ~250 000

weight (kg): 195

timing drive: chain

Show more details about this engine

Performance:

Fuel Type: Diesel

Fuel consumption (economy) - urban: 5.2 l/100 km

Fuel consumption (economy) - extra urban: 7.6 l/100 km

Fuel consumption (economy) - combined: 6.1 l/100 km

Emission standard: Euro 4

Acceleration 0 - 100 km/h: 8.6 sec

Acceleration 0 - 62 mph: 8.6 sec

Maximum speed: 220 km/h

Weight-to-power ratio: 8.7 kg/Hp, 115.3 Hp/tonne

Weight-to-torque ratio: 3.8 kg/Nm, 260.6 Nm/tonne

Acceleration 0 - 60 mph: 8.2 sec

Space:

Kerb Weight (kg): 1535-1585

Max. weight (kg): 1970

Max. roof load: 90 kg

Max load (kg): 385-435

Trunk (boot) space - maximum: 1500 l

Trunk (boot) space - minimum: 520 l

Permitted trailer load with brakes (12%): 1300 kg

Fuel tank capacity: 60 l

Permitted trailer load without brakes: 500 kg

Permitted towbar download: 75 kg

Permitted trailer load with brakes (8%): 1500 kg

dimensions:

Length: 4715 mm

Width: 1760 mm

Height: 1525 mm

wheelbase: 2700 mm

Front track: 1505 mm

Rear (Back) track: 1510 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.

Drive wheel: Front wheel drive

Number of gears and type of gearbox: 6 gears, manual transmission

Front brakes: Ventilated discs

Rear brakes: Disc

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Hydraulic Steering

Front suspension: Independent, type McPherson with coil Spring and anti-roll bar

Rear suspension: Double wishbone
