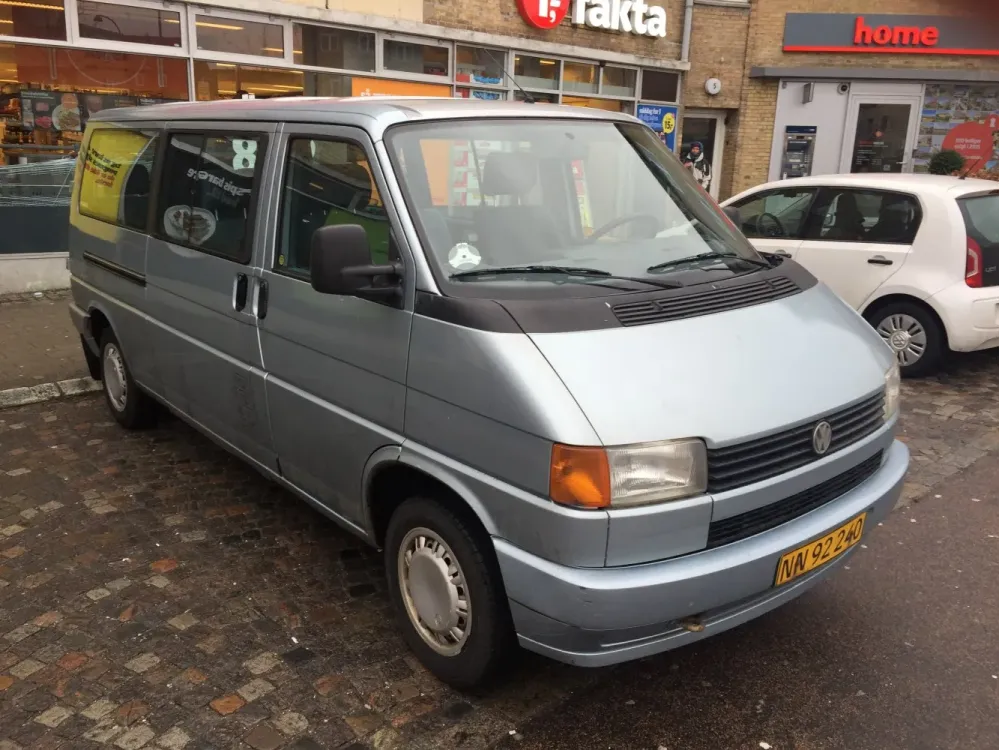

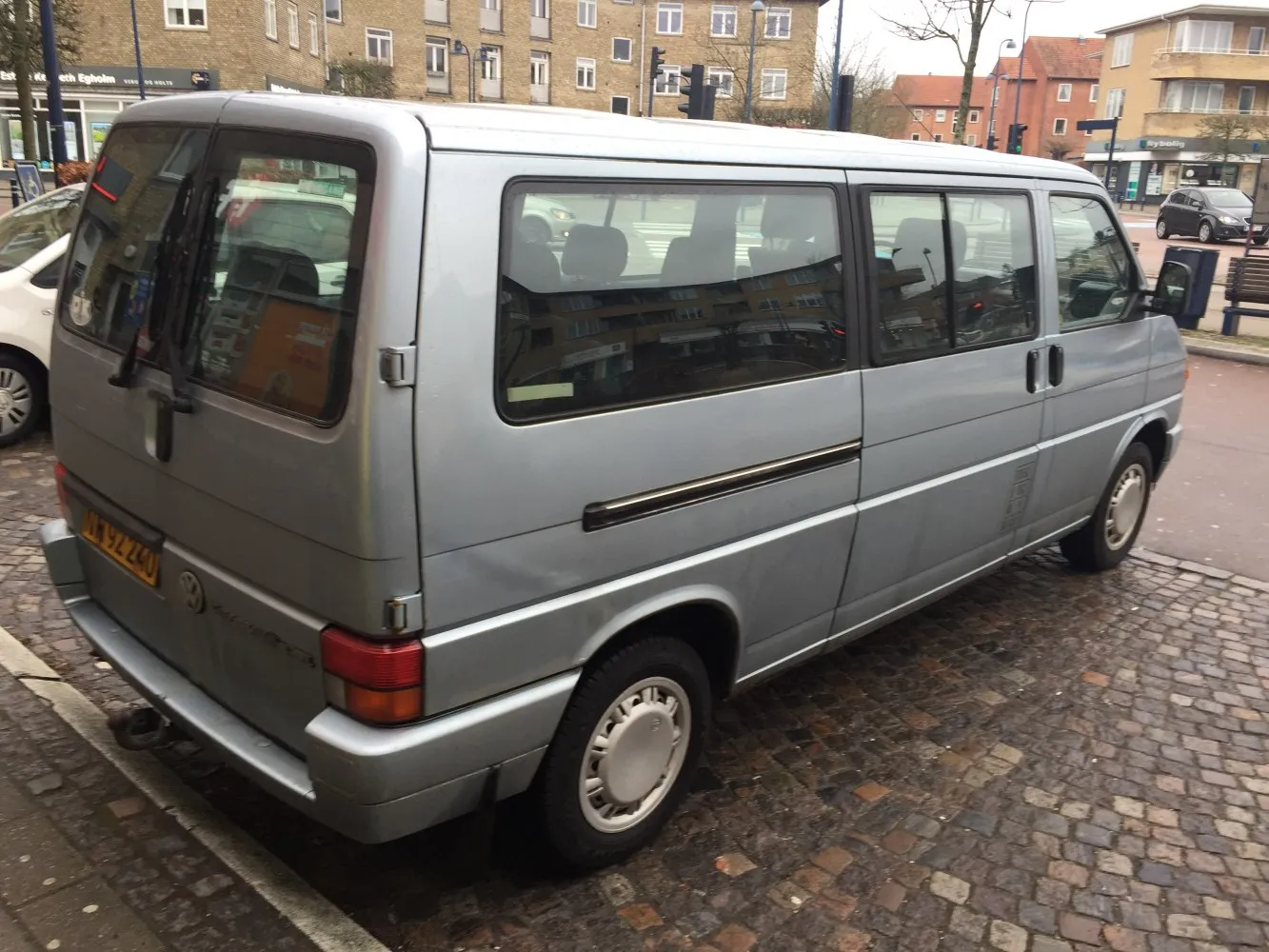

Volkswagen Caravelle (T4) Long 2.5 (110 Hp) Automatic
Overall Rating
Volkswagen Caravelle:
Volkswagen Caravelle is the nameplate of a van based on the Volkswagen Transporter. For information about the Caravelle, refer to the regular Transporter articles:....(Read more on Wikipedia)
(T4) Long Overview:
Volkswagen Caravelle ((T4) Long). With 190 Nm of torque, it offers ample pulling power. With a weight of 1770 kg, it falls in the mid‑range. Front‑wheel drive delivers efficiency and easy handling. The top speed reaches 157 km/h. A large vehicle designed for transporting goods or groups of people. With seating for 6, it’s perfect for larger families.
2.5 (110 Hp) Automatic Verdict:
Performance Verdict
Offers the best petrol performance in the lineup, providing smooth acceleration suitable for highway cruising, though the automatic transmission can feel a bit sluggish.
Fuel Economy
As a petrol automatic, fuel consumption is notably higher, especially in urban settings, making it less economical than its diesel counterparts.
Community Verdict
This rating is based on comments found on Reddit, scanned using artificial intelligence, and may not accurately reflect reality.
4.4 / 5
Based on AI analysis of 7 discussions
Read What Owners Say
Pros and Cons:
Pros:
- • Exceptional interior space and versatility for passengers or cargo
- • Renowned for robust build quality and long-term reliability
- • Comfortable ride for a van of its era, especially on long journeys
- • Available Syncro AWD system offers excellent all-weather capability
- • Strong aftermarket support and parts availability
- • Timeless design and strong resale value for well-maintained examples
Cons:
- • Petrol engines can be very thirsty, especially the 2.5L automatic
- • Diesel engines (especially naturally aspirated) offer very limited performance
- • Lacks modern safety features and driver assistance systems
- • Prone to rust in older models, particularly around wheel arches and sills
- • Interior plastics can show wear and tear over time
- • Older automatic transmissions can be slow and less refined
Specifications:
Specifications are compared to those of the previous generation(T3: 1987 - 1992).
| General: | |
|---|---|
| Brand: | Volkswagen |
| Model: | Caravelle |
| Generation: | (T4) Long |
| Modification (Engine): | 2.5 (110 Hp) Automatic |
| Start of production: | 1990 |
| End of production: | 1995 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Van |
| Seats: | 6-9 |
| Doors: | 4-5 |
| Engine: | |
|---|---|
| Power: | 110 Hp @ 4500 rpm. Same horsepower |
| Power per litre: | 44.7 Hp/l [455mm more] |
| Torque: | 190 Nm @ 2200 rpm. |
| Engine Model/Code: | AAF, ACU More details about the engine AAF, ACU |
| Engine displacement: | 2461 |
| Number of cylinders: | 5 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | SOHC |
| Engine oil capacity: | 5.5 l |
| Coolant: | 11.5 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 81 mm mm |
| Piston Stroke: | 95.5 mm mm |
| Compression ratio: | 8.5:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 15.2 l/100 km |
| Fuel consumption (economy) - extra urban: | 9.9 l/100 km |
| Maximum speed: | 157 km/h |
| Weight-to-power ratio: | 16.1 kg/Hp, 62.1 Hp/tonne |
| Weight-to-torque ratio: | 9.3 kg/Nm, 107.3 Nm/tonne |
| Space: | |
|---|---|
| Kerb Weight: | 1770 |
| Max. weight: | 2640-2800 |
| Max. roof load: | 100 kg |
| Max load: | 870-1030 |
| Trunk (boot) space - maximum: | 6300 l |
| Permitted trailer load with brakes (12%): | 2000 kg |
| Fuel tank capacity: | 80 l |
| Permitted trailer load without brakes: | 700 kg |
| Permitted towbar download: | 100 kg |
| Size: | |
|---|---|
| Length: | 5055 mm mm [455mm more] |
| Width: | 1840 mm mm [5mm less] |
| Height: | 1940 mm mm [80mm less] |
| Wheelbase: | 3320 mm mm [840mm more] |
| Front track: | 1589 mm |
| Rear (Back) track: | 1554 mm |
| Front overhang: | 860 mm |
| Rear overhang: | 875 mm |
| Ride height (ground clearance): | 180 mm |
| Minimum turning circle (turning diameter): | 12.9 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 4 |
| Transmission type | Automatic |
| Front brakes | Disc [bad for performance and cooling.] |
| Rear brakes | Drum [bad for performance and cooling.] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/70 R15; 205/65 R15; 215/65 R15 |
| Wheel rims size | 6J x 15; 7J x 15 |
| Front suspension | Independent torsion bar, double wishbone, Transverse stabilizer |
| Rear suspension | Independent coil spring, Trailing arm |
