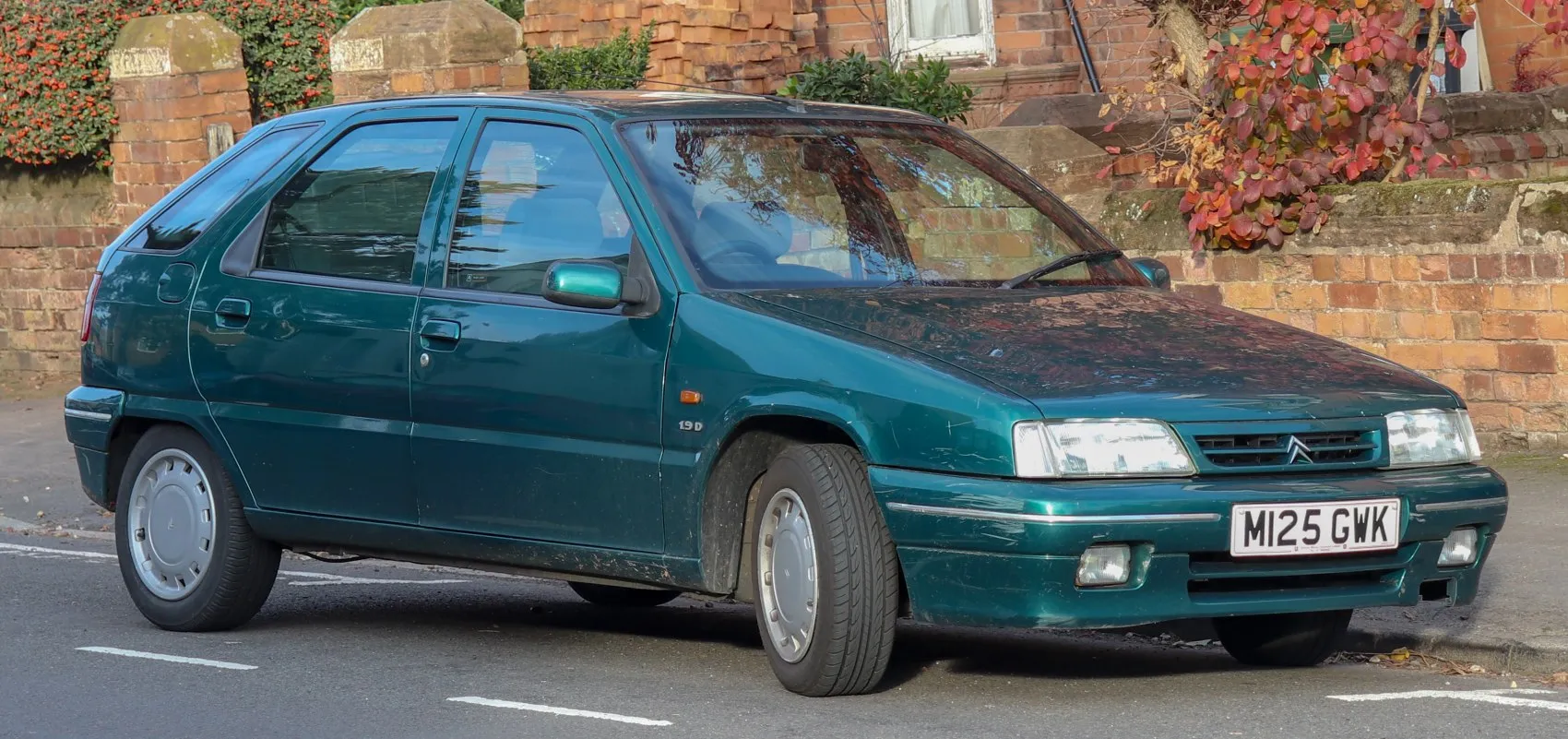

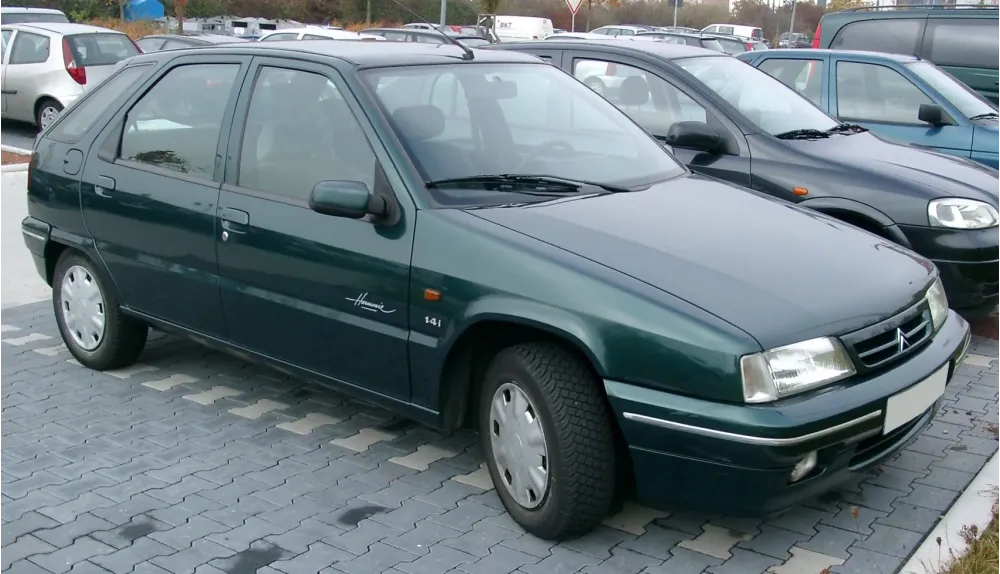

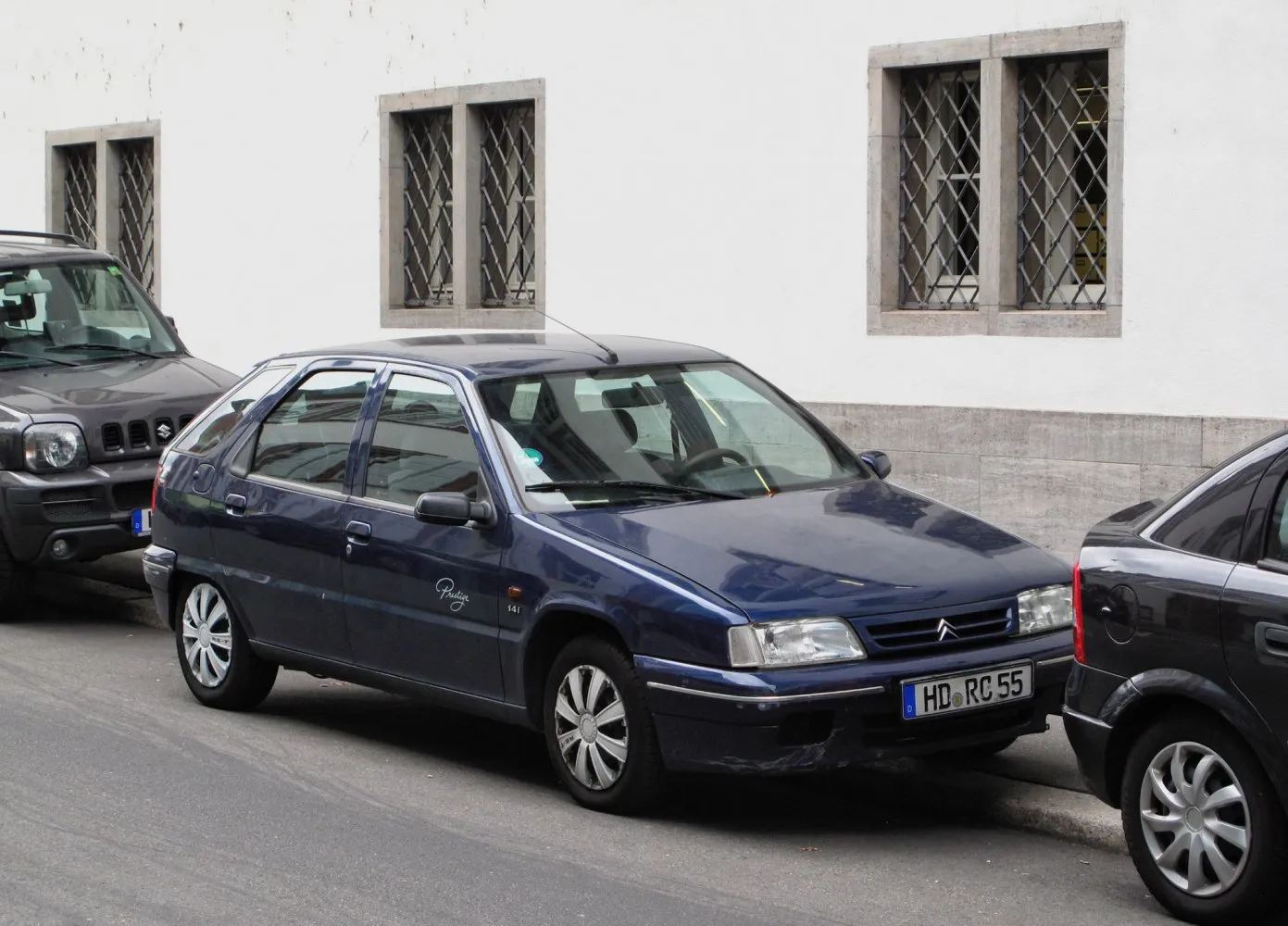

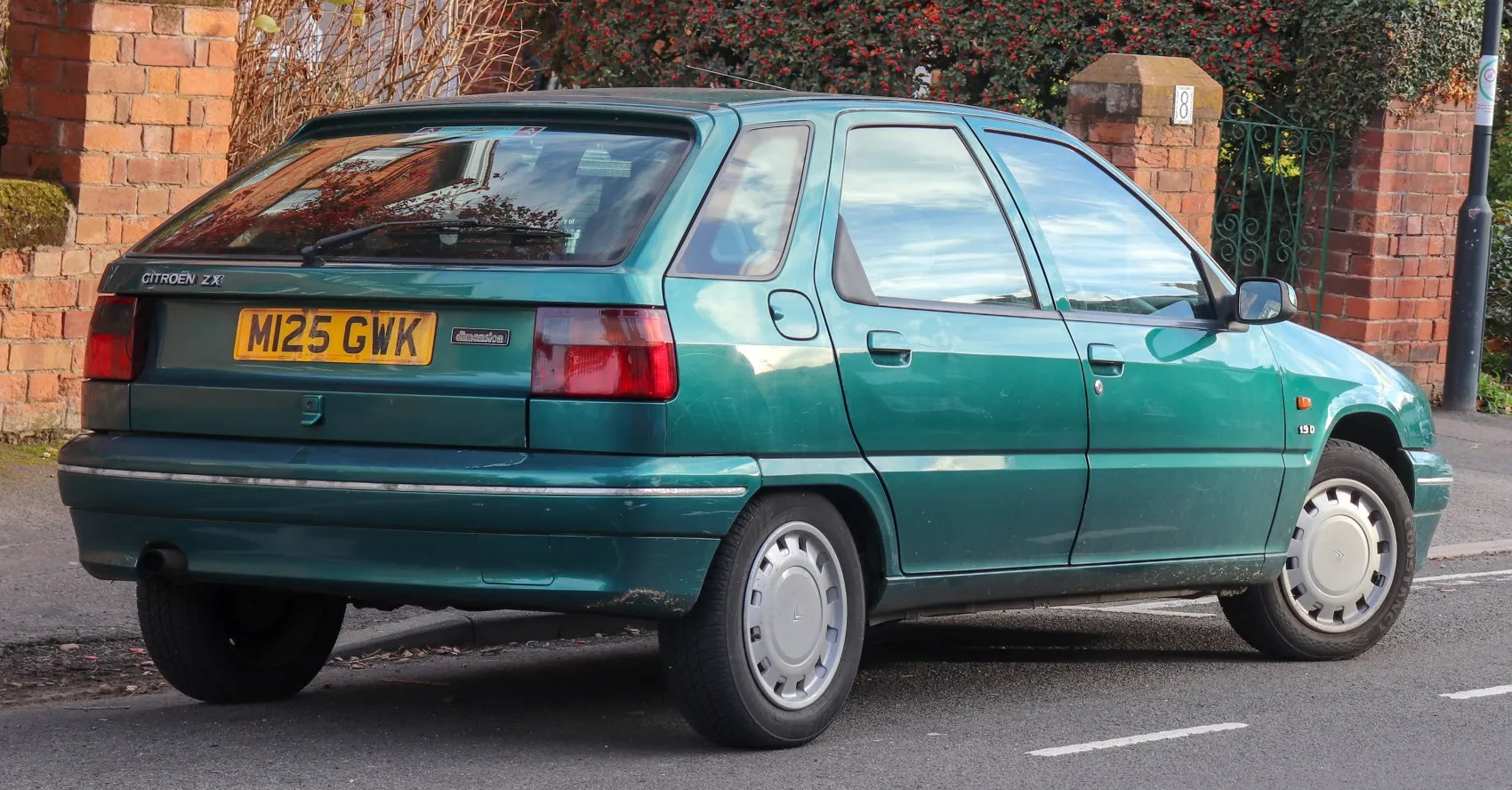

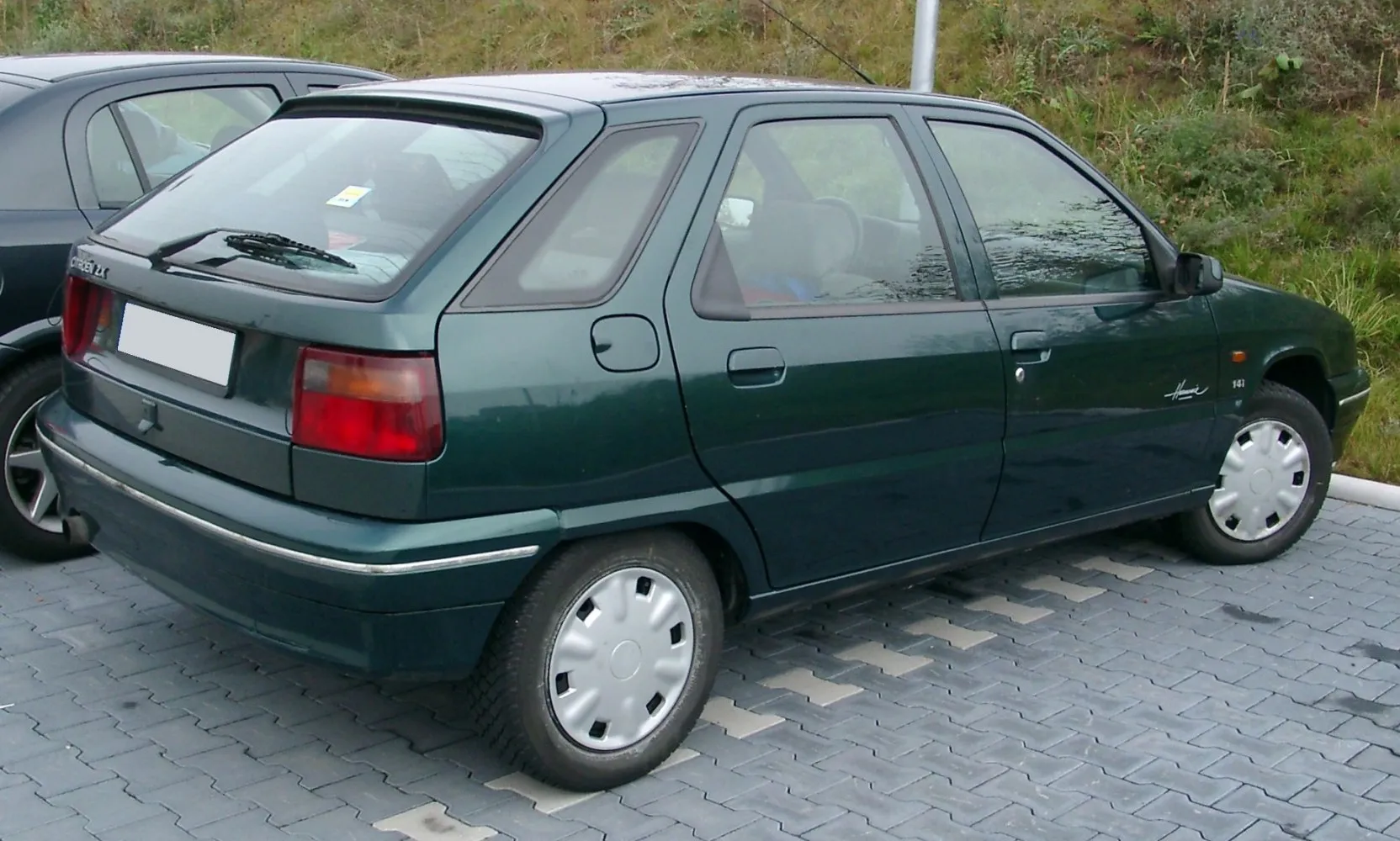

Citroen ZX (N2, Phase II) 5-door Volcane 2.0 i (121 Hp) Automatic
Overall Rating
Citroen ZX:
The Citroën ZX is a small family car produced by the French manufacturer Citroën between 1991 and 1998.
At the beginning of the 1990s, the ZX was Citroën's entry in the class traditionally dominated in Europe by the Ford Escort and Vauxhall/Opel Astra, a market segment Citroën had briefly abandoned with the demise of the GSA in 1986.
The BX had tried to address the small family car market and the large family car market by being "between sizes" but well packaged. For 1993, the Citroën ZX chassis was also used for the Peugeot 306 which, with its attractive Peugeot 205 derived styling, was an even more successful car than its twin. The Citroën Berlingo and Peugeot Partner were also built on the front half of the same platform, the rear coming from the 405, an arrangement shared underneath the Xsara Picasso....(Read more on Wikipedia)
(N2, Phase II) 5-door Overview:
Citroen ZX ((N2, Phase II) 5-door). With 179 Nm of torque, it offers ample pulling power. Weighing only 1140 kg, it’s quite light. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 10.8 s). The top speed reaches 198 km/h. A compact car with a rear door that swings upward to provide access to the cargo area. Seating for 5 makes it ideal for daily use.
Volcane 2.0 i (121 Hp) Automatic Verdict:
Performance Verdict
Offers a good balance of power for comfortable cruising, though the automatic gearbox slightly dulls acceleration compared to the manual.
Fuel Economy
Moderate fuel consumption, higher than manual versions, especially in city driving.
Pros and Cons:
Pros:
- • Comfortable ride quality
- • Practical hatchback design
- • Engaging handling for its class
- • Range of efficient engines
- • Good value for money
Cons:
- • Dated interior design
- • Some engines lack refinement
- • Rust can be an issue on older models
- • Limited modern safety features
- • Resale value can be low
Specifications:
Specifications are compared to those of the previous generation((N2, Phase I) 5-door: 1993 - 1994).
| General: | |
|---|---|
| Brand: | Citroen |
| Model: | ZX |
| Generation: | (N2, Phase II) 5-door |
| Modification (Engine): | Volcane 2.0 i (121 Hp) Automatic |
| Start of production: | 1994 |
| End of production: | 1997 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Hatchback |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 121 Hp @ 5750 rpm. Same horsepower |
| Power per litre: | 60.6 Hp/l [14mm more] |
| Torque: | 179 Nm @ 2750 rpm. |
| Engine Model/Code: | R6D XU10J2C More details about the engine R6D XU10J2C |
| Engine displacement: | 1998 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Engine oil capacity: | 5.4 l |
| Coolant: | 8.5 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 86 mm |
| Piston Stroke: | 86 mm |
| Compression ratio: | 9.5:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Acceleration 0 - 100 km/h: | 10.8 sec |
| Acceleration 0 - 62 mph: | 10.8 sec |
| Maximum speed: | 198 km/h |
| Weight-to-power ratio: | 9.4 kg/Hp, 106.1 Hp/tonne |
| Weight-to-torque ratio: | 6.4 kg/Nm, 157 Nm/tonne |
| Acceleration 0 - 60 mph: | 10.3 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1140 |
| Max. weight: | 1600 |
| Max. roof load: | 75 kg |
| Max load: | 460 |
| Trunk (boot) space - maximum: | 926 l |
| Trunk (boot) space - minimum: | 324 l |
| Permitted trailer load with brakes (12%): | 1100 kg |
| Fuel tank capacity: | 54 l |
| Permitted trailer load without brakes: | 530 kg |
| Permitted towbar download: | 70 kg |
| Size: | |
|---|---|
| Length: | 4085 mm [14mm more] |
| Width: | 1705 mm [17mm more] |
| Height: | 1385 mm [14mm less] |
| Wheelbase: | 2540 mm [Same wheelbase.] |
| Front track: | 1420 mm |
| Rear (Back) track: | 1415 mm |
| Front overhang: | 859 mm |
| Rear overhang: | 686 mm |
| Minimum turning circle (turning diameter): | 11.1 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 4 |
| Transmission type | Automatic |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc [above average] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 185/60 R14 |
| Wheel rims size | 5.5J x 14 |
| Front suspension | Independent type McPherson, Wishbone |
| Rear suspension | Hydro-pneumatic element, Trailing arm |
