Everything you need to know about specifications and performance - Suzuki Ertiga 2018 - 1.5 (105 Hp) Automatic

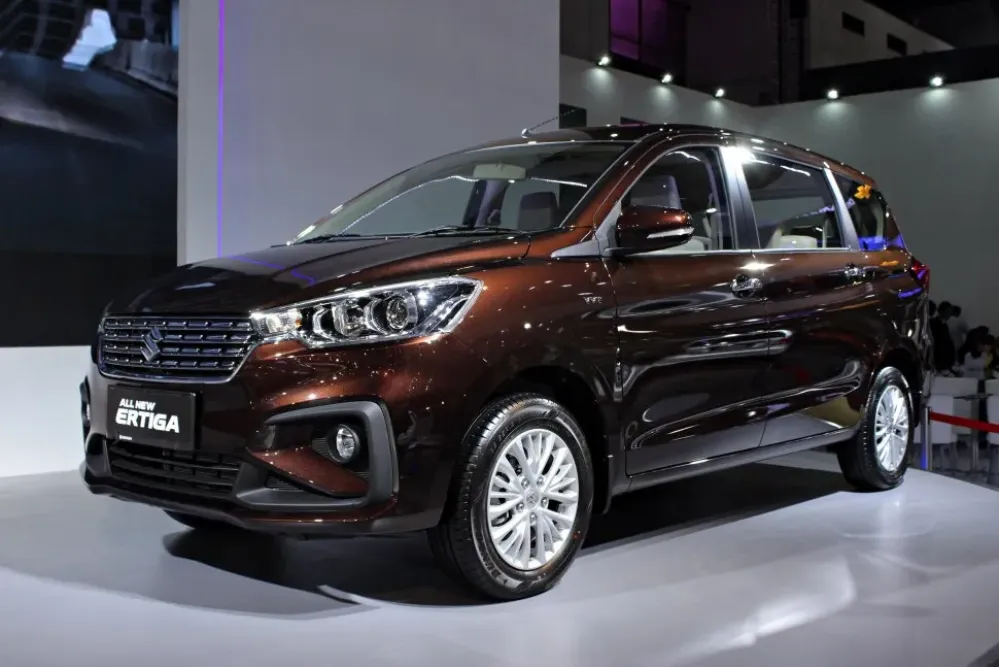

Full specifications and technical details 2018 Suzuki Ertiga II 1.5 (105 Hp) Automatic

Overview:

What is the engine capacity of a Suzuki Ertiga 2018?
The engine capacity of the Suzuki Ertiga 2018 is 1462.

Suzuki Ertiga 2018 How many horsepower?
The engine power of the Suzuki Ertiga 2018 is 105 Hp @ 6000 rpm..

What is the Suzuki Ertiga 2018 engine?
Suzuki Ertiga 2018 engine is K15B. (Click to see other cars using the same engine)

What is the recommended oil for a Suzuki Ertiga 2018 engine?
The recommended oil for a Suzuki Ertiga 2018 car engine is 5W-30.

What type of camshaft transmission system is used in a Suzuki Ertiga 2018 engine?
chain is used to transmit motion.

General:

Brand: Suzuki
Model: Ertiga
Generation: II
Modification (Engine): 1.5 (105 Hp) Automatic
Start of production: 2018
End of production:
Powertrain Architecture: Internal Combustion Engine
Body type:Multi Purpose Vehicle (MPV)
Seats: 7
Doors: 5

Engine:

Power: 105 hp @ 6000 rpm.
Power per litre: 71.8 hp/l
Torque: 138 nm @ 4400 rpm.
Engine Model/Code:K15B
Engine displacement: 1462
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC-VVT
Engine oil capacity: 3.1 l
Coolant: 4 l
Engine layout: Front, Transverse
Cylinder Bore: 74 mm
Piston Stroke: 85 mm
Compression ratio: 10.5:1
recommended engine oil: 5W-30
euro standards: EURO 5/6
engine lifespan (km): ~300 000
timing drive: chain

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)
Weight-to-power ratio: 11.2 kg/Hp, 89 Hp/tonne
Weight-to-torque ratio: 8.6 kg/Nm, 116.9 Nm/tonne

Space:

Kerb Weight (kg): 1180
Trunk (boot) space - maximum: 803 l
Trunk (boot) space - minimum: 153 l
Fuel tank capacity: 45 l

dimensions:

Length: 4395 mm
Width: 1735 mm
Height: 1690 mm
wheelbase: 2740 mm
Ride height (ground clearance): 180 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 4 gears, automatic transmission
Front brakes: Ventilated discs
Rear brakes: Drum
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Electric Steering
Tires size: 185/65 R15
Wheel rims size: 15
Front suspension: Independent, type McPherson with coil Spring and anti-roll bar
Rear suspension: independent torsion suspension
