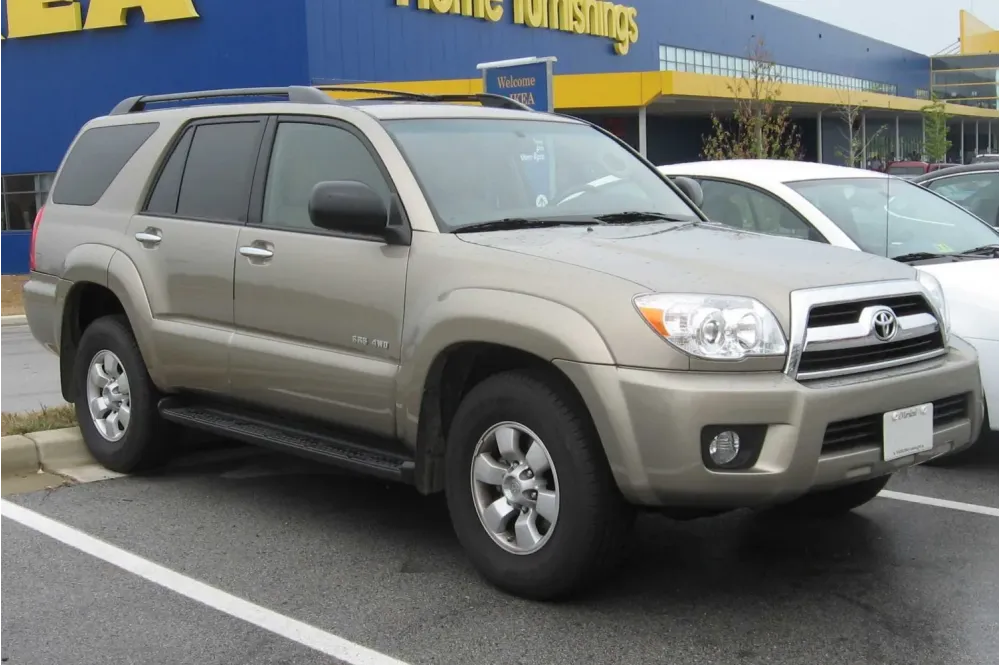

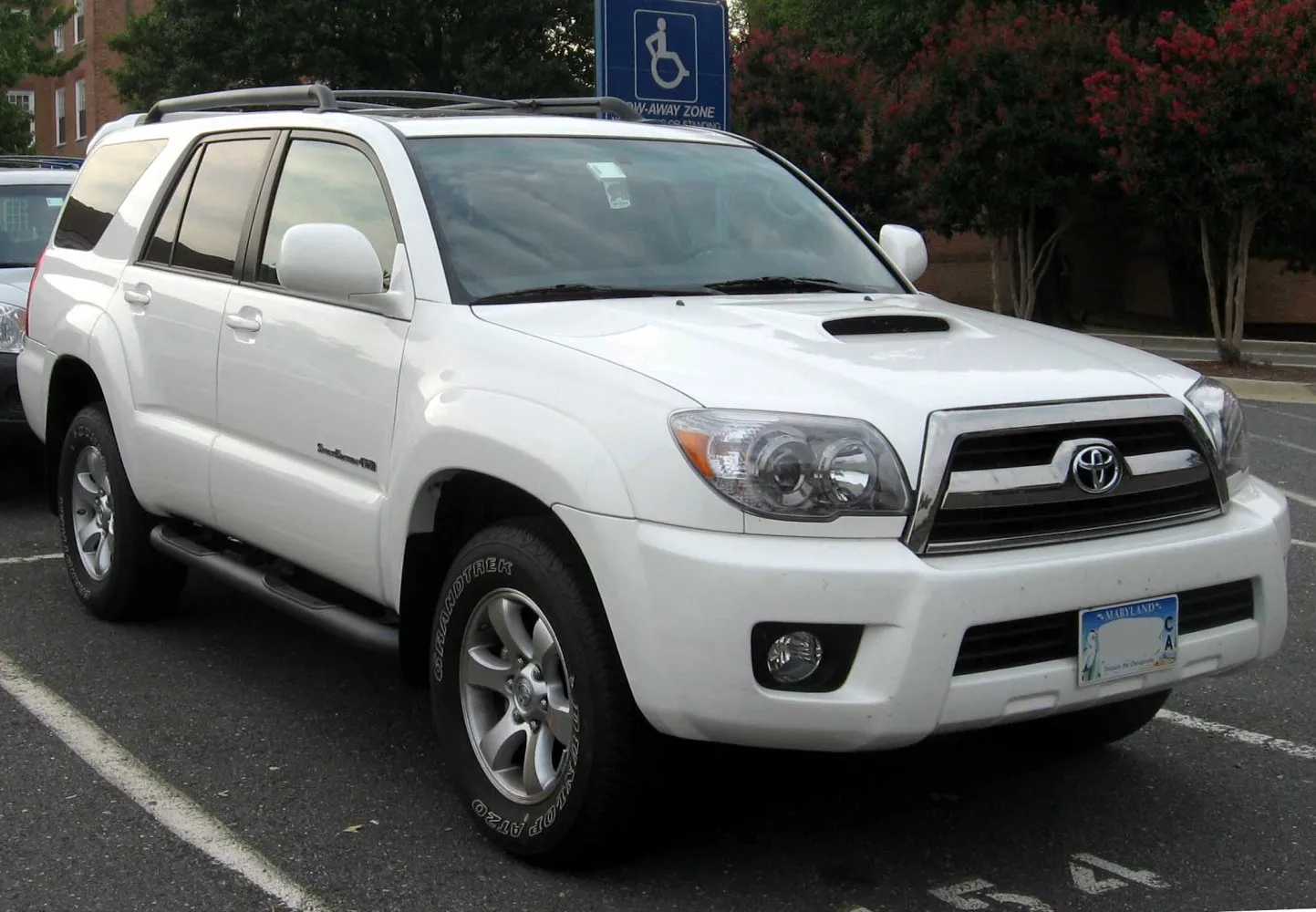

Toyota 4Runner IV (facelift 2005) 4.0i V6 24V (236 Hp) 4x4 Automatic
Overall Rating
Toyota 4Runner:
The Toyota 4Runner is an SUV manufactured by the Japanese automaker Toyota and marketed globally since 1984, across six generations. In Japan, it was marketed as the Toyota Hilux Surf and was withdrawn from the market in 2009. The original 4Runner was a compact SUV and little more than a Toyota Hilux pickup truck with a fiberglass shell over the bed, but the model has since undergone significant independent development into a cross between a compact and a mid-size SUV. All 4Runners have been built in Japan at Toyota's plant in Tahara, Aichi, or at the Hino Motors plant in Hamura....(Read more on Wikipedia)
IV (facelift 2005) Overview:
Toyota 4Runner (IV (facelift 2005)). With 361 Nm of torque, it offers ample pulling power. With a weight of 1950 kg, it falls in the mid‑range. All‑wheel drive provides excellent grip, ideal for off‑road use. A sport utility vehicle offering higher ground clearance and versatile cargo space. With seating for 7, it’s perfect for larger families.
4.0i V6 24V (236 Hp) 4x4 Automatic Verdict:
Performance Verdict
With the same robust 4.0L V6, this 4x4 variant delivers strong performance, enhanced by its capable four-wheel-drive system for varied terrains and adverse conditions.
Fuel Economy
Slightly less fuel-efficient than its RWD counterpart due to the added weight and drivetrain friction of the 4x4 system, maintaining a thirsty profile.
Pros and Cons:
Pros:
- • Exceptional Toyota reliability and durability
- • Strong off-road capability (especially 4x4 models)
- • Powerful V8 engine option for towing and heavy loads
- • Spacious and practical interior with optional third-row seating
- • Strong resale value
Cons:
- • Poor fuel economy across all engine options
- • Ride quality can be truck-like, especially on rough roads
- • Interior design is somewhat dated by modern standards
- • Large turning circle can make maneuvering in tight spaces challenging
- • Limited advanced safety features compared to newer vehicles
Specifications:
Specifications are compared to those of the previous generation(IV: 2002 - 2005).
| General: | |
|---|---|
| Brand: | Toyota |
| Model: | 4Runner |
| Generation: | IV (facelift 2005) |
| Modification (Engine): | 4.0i V6 24V (236 Hp) 4x4 Automatic |
| Start of production: | 2005 |
| End of production: | 2009 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | SUV |
| Seats: | 7 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 236 Hp @ 5200 rpm. Same horsepower |
| Power per litre: | 59.7 Hp/l [5mm more] |
| Torque: | 361 Nm @ 3800 rpm. |
| Engine Model/Code: | 1GR-FE More details about the engine 1GR-FE |
| Engine displacement: | 3956 |
| Number of cylinders: | 6 |
| Engine configuration: | V-engine |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC |
| Engine oil capacity: | 5.2 l |
| Coolant: | 9.8 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 94 mm |
| Piston Stroke: | 95 mm |
| Compression ratio: | 10:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 13.8 l/100 km |
| Fuel consumption (economy) - extra urban: | 11.2 l/100 km |
| Weight-to-power ratio: | 8.3 kg/Hp, 121 Hp/tonne |
| Weight-to-torque ratio: | 5.4 kg/Nm, 185.1 Nm/tonne |
| Space: | |
|---|---|
| Kerb Weight: | 1950 |
| Max. weight: | 2531 |
| Max load: | 581 |
| Trunk (boot) space - maximum: | 1036 l |
| Trunk (boot) space - minimum: | 343 l |
| Permitted trailer load with brakes (12%): | 2268 kg |
| Fuel tank capacity: | 87 l |
| Size: | |
|---|---|
| Ramp-over (brakeover) angle: | 24-28° |
| Length: | 4805 mm [5mm more] |
| Width: | 1910 mm [35mm more] |
| Height: | 1760-1805 mm [10mm more] |
| Wheelbase: | 2790 mm [Same wheelbase.] |
| Front track: | 1575 mm |
| Rear (Back) track: | 1575 mm |
| Ride height (ground clearance): | 231 mm |
| Minimum turning circle (turning diameter): | 11.3 m [above average] |
| Approach angle: | 30° |
| Departure angle: | 24-26° |
| Powertrain: | |
|---|---|
| Drive wheel | All wheel drive (4x4) |
| Number of gears | 5 |
| Transmission type | Automatic |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Ventilated discs [Best for performance and cooling.] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 265/70 R16; 265/65 R17; 265/60 R18 |
| Wheel rims size | 7.0J x 16; 7.5J x 17; 7.5J x 18 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
