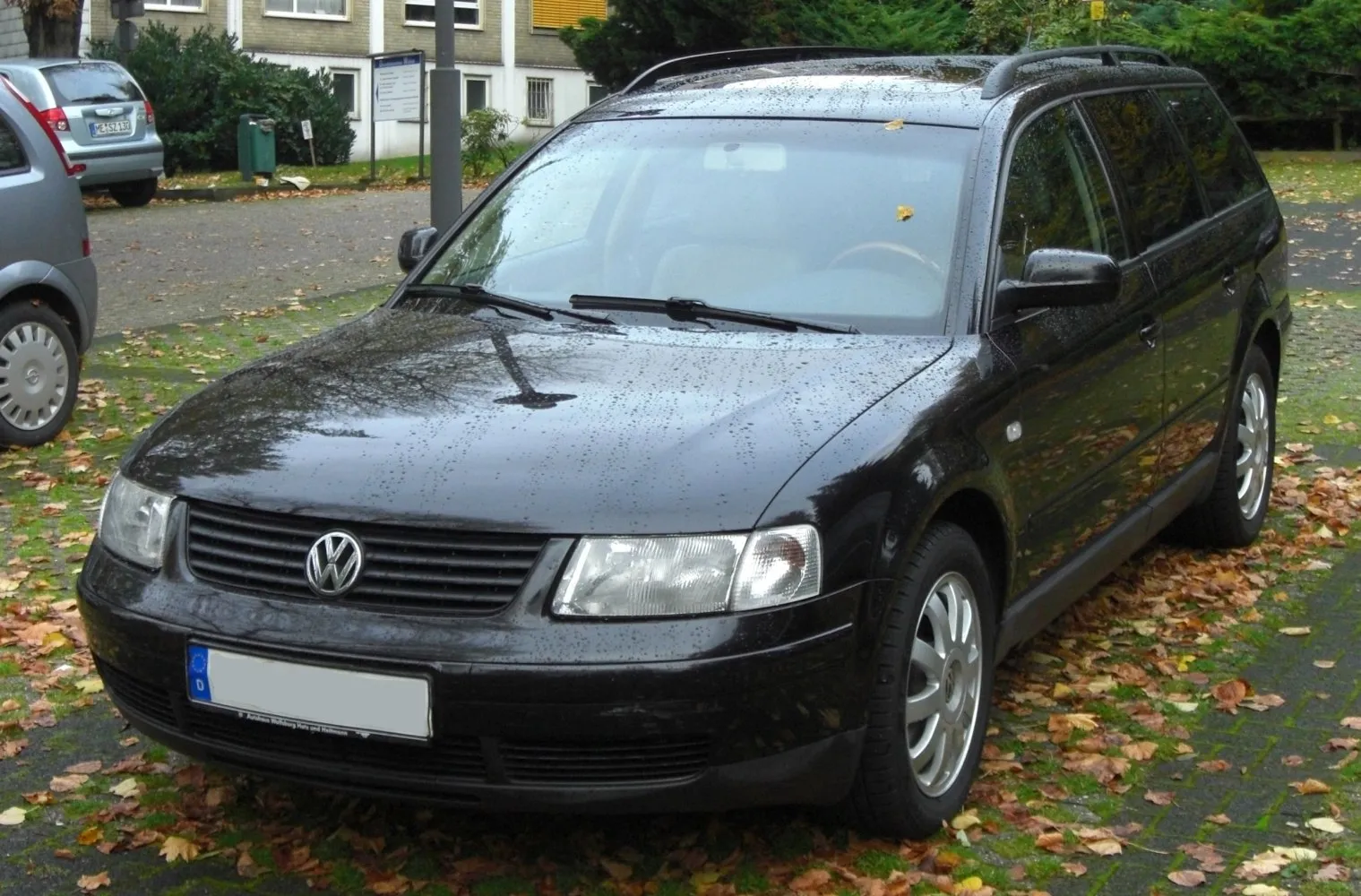

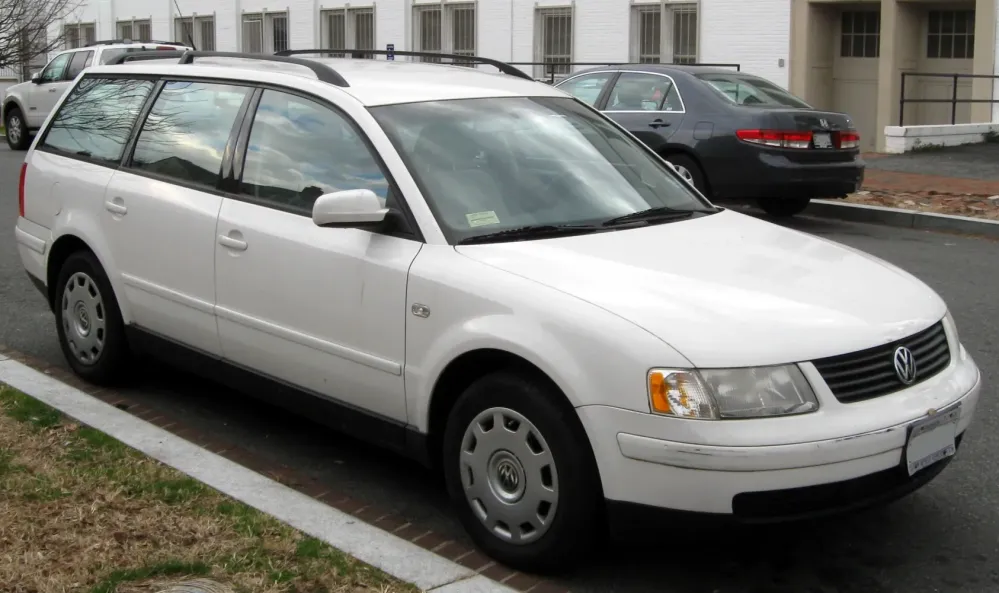

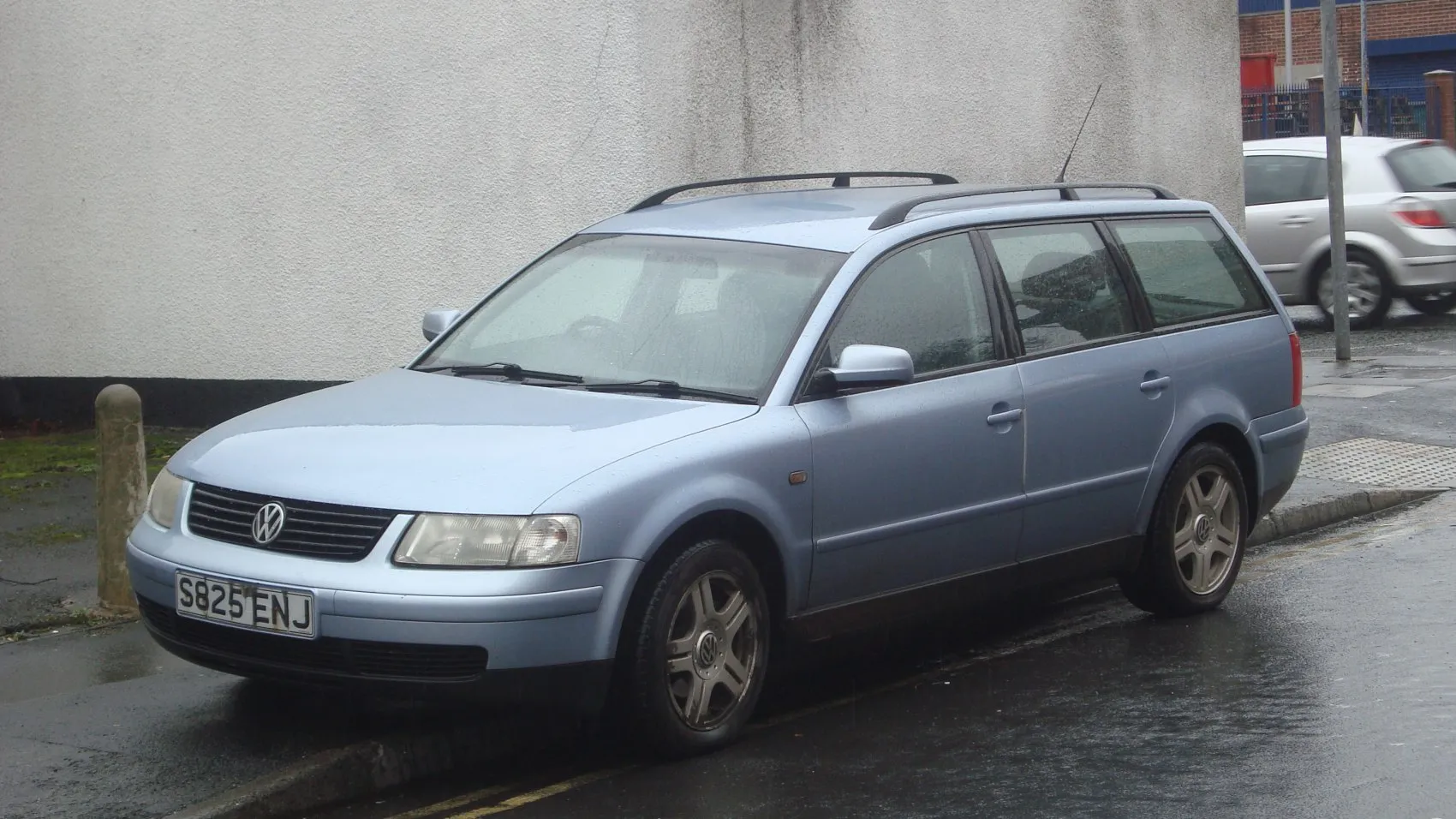

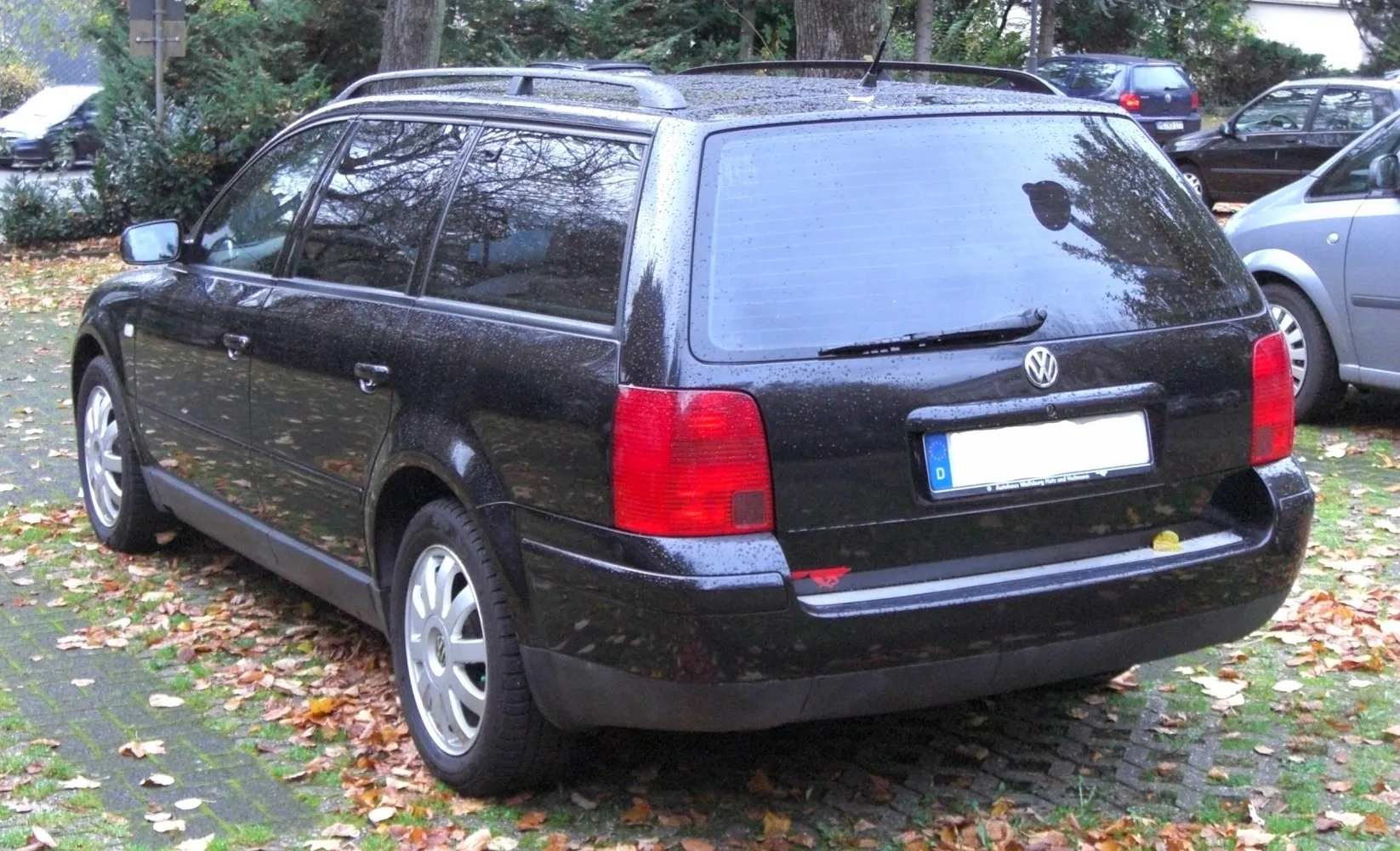

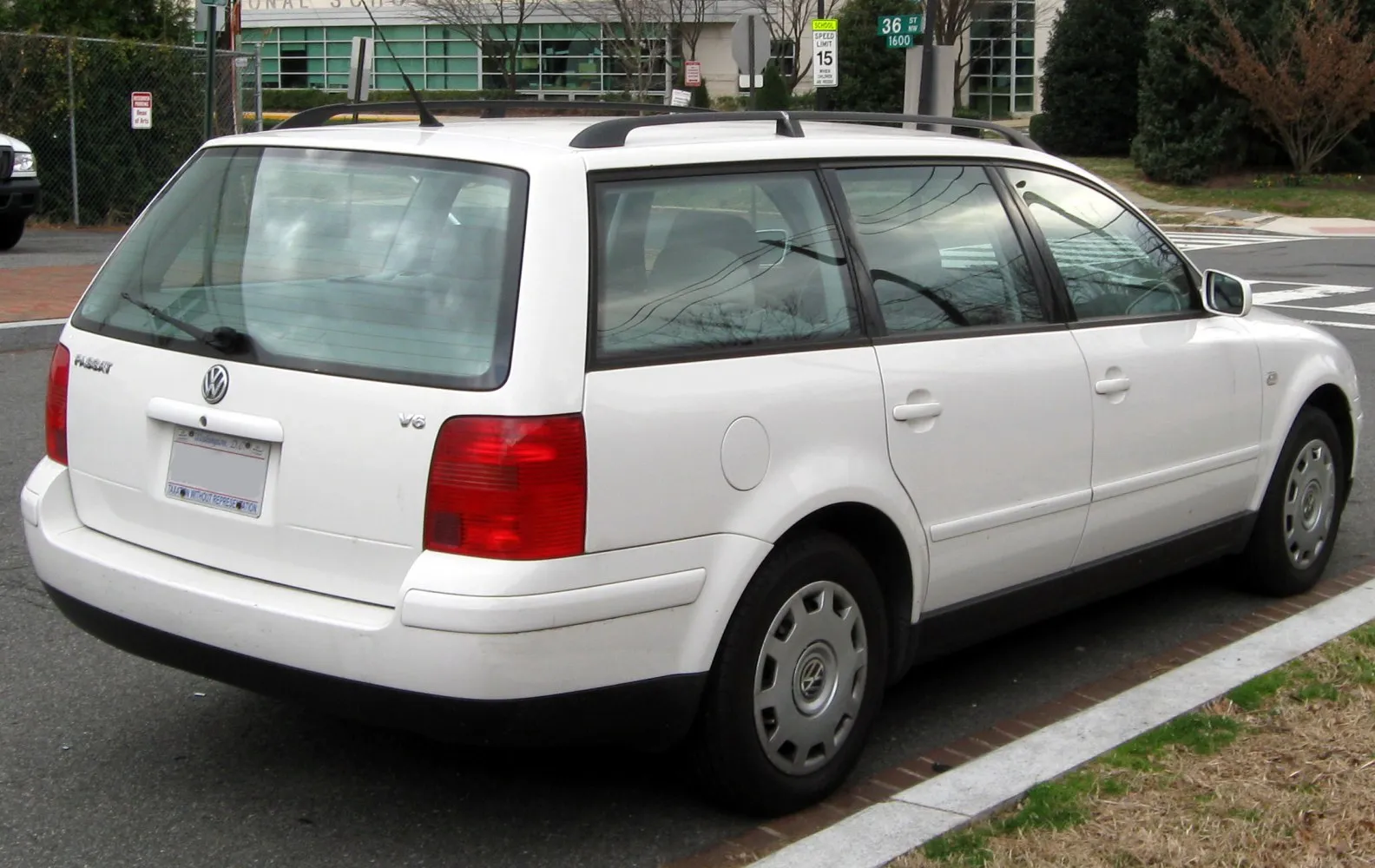

Volkswagen Passat Variant (B5) 1.6 (101 Hp)
Overall Rating
Volkswagen Passat:
The Volkswagen Passat is a nameplate of large family cars manufactured and marketed by the German automobile manufacturer Volkswagen since 1973 and also marketed variously as the Dasher, Santana, Quantum, Magotan, Corsar and Carat — in saloon, estate, and hatchback body styles.
A "four-door coupé" variant of the Passat with a lower roof was released in the North American market in 2008 as the Passat CC, which was then renamed to Volkswagen CC. The CC was succeeded by the Arteon in 2017....(Read more on Wikipedia)
Variant (B5) Overview:
Volkswagen Passat (Variant (B5)). With 145 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~11.6 l/100km). Weighing only 1270 kg, it’s quite light. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 13.1 s). The top speed reaches 186 km/h. A car with an extended rear cargo area, combining passenger comfort with increased storage. Seating for 5 makes it ideal for daily use.
1.6 (101 Hp) Verdict:
Performance Verdict
The entry-level engine, providing just adequate power for city driving, but struggles on highways or with a full load, requiring frequent gear changes.
Fuel Economy
Decent fuel economy for a petrol engine of its era, but can be less efficient than expected due to needing to work harder.
Pros and Cons:
Pros:
- • Excellent build quality and refined interior for its class.
- • Wide range of efficient and powerful engines, especially the 1.9 TDI.
- • Comfortable ride quality, ideal for long journeys.
- • Spacious interior and large boot capacity in Variant form.
- • Timeless design that still looks good today.
Cons:
- • Some engines (e.g., early 1.8T, 2.5 TDI) can have known reliability issues.
- • Front suspension components (multi-link) are prone to wear.
- • Can be expensive to maintain if not properly looked after.
- • Entry-level petrol engines are underpowered for the car's size.
- • Automatic transmissions can be less engaging and less economical.
Specifications:
Specifications are compared to those of the previous generation(B4: 1996 - 1996).
| General: | |
|---|---|
| Brand: | Volkswagen |
| Model: | Passat |
| Generation: | Variant (B5) |
| Modification (Engine): | 1.6 (101 Hp) |
| Start of production: | 1997 |
| End of production: | 2000 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Station wagon (estate) |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 101 Hp @ 5600 rpm. Same horsepower |
| Power per litre: | 63.3 Hp/l [70mm more] |
| Torque: | 145 Nm @ 3800 rpm. |
| Engine Model/Code: | ADP, AHL, ANA, ARM More details about the engine ADP, AHL, ANA, ARM |
| Engine displacement: | 1595 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | OHC |
| Engine oil capacity: | 3 l |
| Coolant: | 7 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 81 mm |
| Piston Stroke: | 77.4 mm |
| Compression ratio: | 10.3:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 11.6 l/100 km |
| Fuel consumption (economy) - extra urban: | 6.3 l/100 km |
| Acceleration 0 - 100 km/h: | 13.1 sec |
| Acceleration 0 - 62 mph: | 13.1 sec |
| Maximum speed: | 186 km/h |
| Weight-to-power ratio: | 12.6 kg/Hp, 79.5 Hp/tonne |
| Weight-to-torque ratio: | 8.8 kg/Nm, 114.2 Nm/tonne |
| Acceleration 0 - 60 mph: | 12.4 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1270 |
| Max. weight: | 1820 |
| Max load: | 550 |
| Trunk (boot) space - maximum: | 1500 l |
| Trunk (boot) space - minimum: | 465 l |
| Fuel tank capacity: | 70 l |
| Size: | |
|---|---|
| Length: | 4675 mm [70mm more] |
| Width: | 1740 mm [20mm more] |
| Height: | 1459 mm [29mm more] |
| Wheelbase: | 2703 mm [78mm more] |
| Front track: | 1498 mm |
| Rear (Back) track: | 1500 mm |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R15 |
| Wheel rims size | 6J x 15 |
| Front suspension | Wishbone |
| Rear suspension | Suspension with traction connecting levers |
