Everything you need to know about specifications and performance - Volkswagen Polo 2004 - 1.4 TDI (75 Hp)

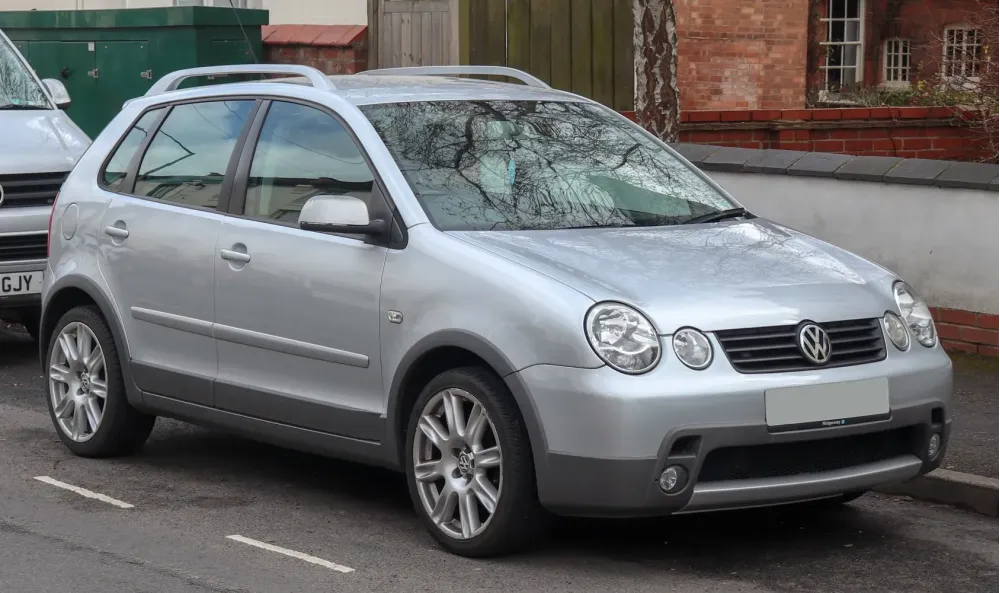

Full specifications and technical details 2004 Volkswagen Polo IV Fun 1.4 TDI (75 Hp)

Overview:

What is the engine capacity of a Volkswagen Polo 2004?
The engine capacity of the Volkswagen Polo 2004 is 1422.

Volkswagen Polo 2004 How many horsepower?
The engine power of the Volkswagen Polo 2004 is 75 Hp @ 4000 rpm..

What is the Volkswagen Polo 2004 engine?
Volkswagen Polo 2004 engine is AMF, BAY. (Click to see other cars using the same engine)

How much gasoline does a Volkswagen Polo 2004 consume?
The Volkswagen Polo 2004 consumes 4.9 liters of gasoline per 100 km

General:

Brand: Volkswagen
Model: Polo
Generation: IV Fun
Modification (Engine): 1.4 TDI (75 Hp)
Start of production: 2004
End of production: 2005
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 5

Engine:

Power: 75 hp @ 4000 rpm.
Power per litre: 52.7 hp/l
Torque: 195 nm @ 2200 rpm.
Engine Model/Code:AMF, BAY
Engine displacement: 1422
Number of cylinders: 3
Engine configuration: Inline
Number of valves per cylinder: 2
Fuel injection system: Pump-nozzle (Unit Injector)
Engine aspiration: Turbocharger, Intercooler
Valvetrain: DOHC
Engine oil capacity: 3.2 l
Coolant: 3.9 l
Engine layout: Front, Transverse
Cylinder Bore: 79.5 mm
Piston Stroke: 95.5 mm
Compression ratio: 18:1

Performance:

Fuel Type: Diesel
Fuel consumption (economy) - urban: 6.1 l/100 km
Fuel consumption (economy) - extra urban: 4.2 l/100 km
Fuel consumption (economy) - combined: 4.9 l/100 km
Acceleration 0 - 100 km/h: 14.7 sec
Acceleration 0 - 62 mph: 14.7 sec
Maximum speed: 165 km/h
Weight-to-power ratio: 15.6 kg/Hp, 64.1 Hp/tonne
Weight-to-torque ratio: 6 kg/Nm, 166.7 Nm/tonne
Acceleration 0 - 60 mph: 14 sec

Space:

Kerb Weight (kg): 1170
Max. weight (kg): 1620
Max load (kg): 450
Trunk (boot) space - maximum: 1048 l
Trunk (boot) space - minimum: 268 l
Fuel tank capacity: 45 l

dimensions:

Length: 3911 mm
Width: 1671 mm
Height: 1537 mm
wheelbase: 2462 mm
Front track: 1434 mm
Rear (Back) track: 1427 mm

Powertrain, Suspension and Brakes:

Drive wheel: All wheel drive (4x4)
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Tires size: 215/40 R17 W
Wheel rims size: 7.5 J x 17
Front suspension: Spring Strut
Rear suspension: Coil Spring
