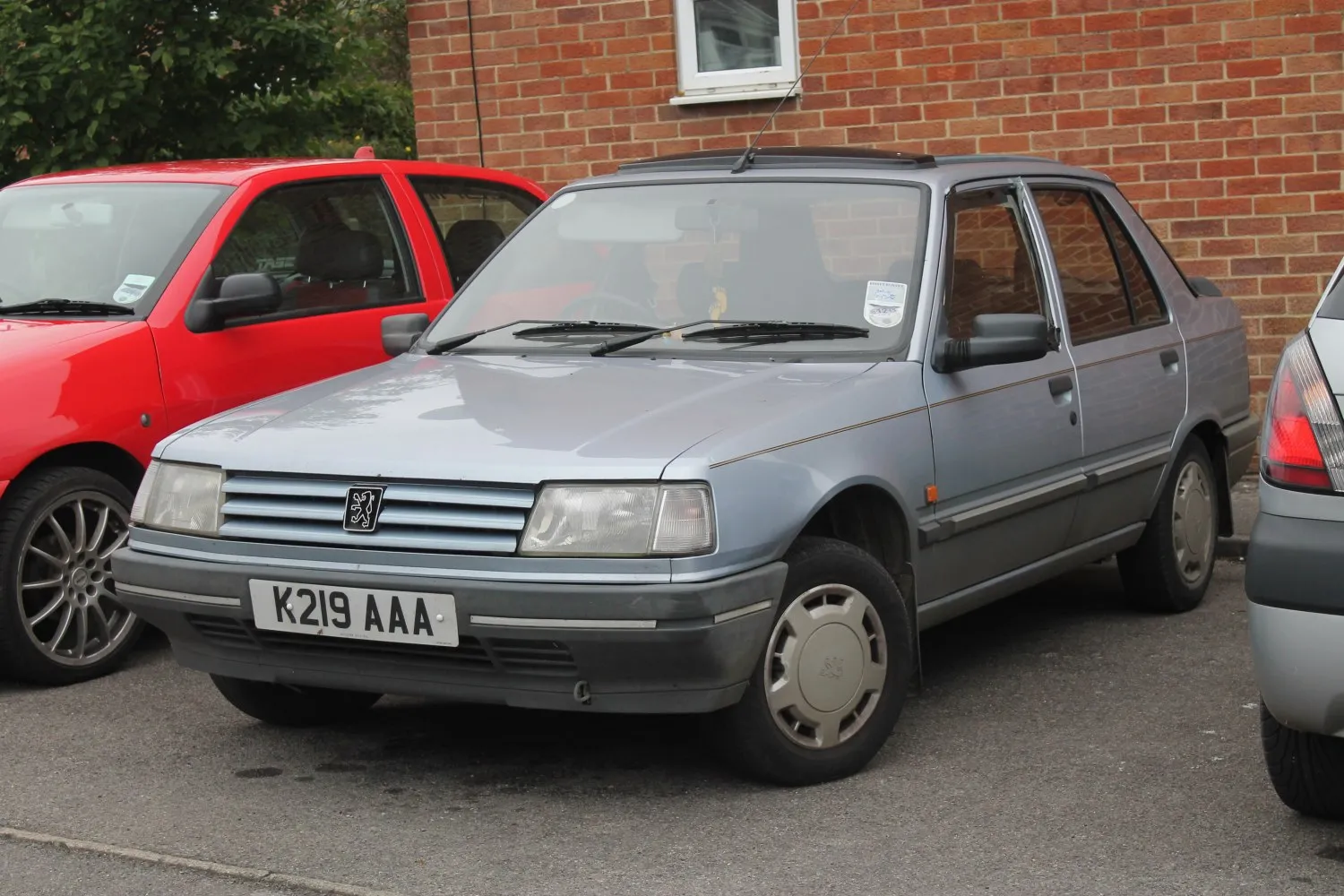

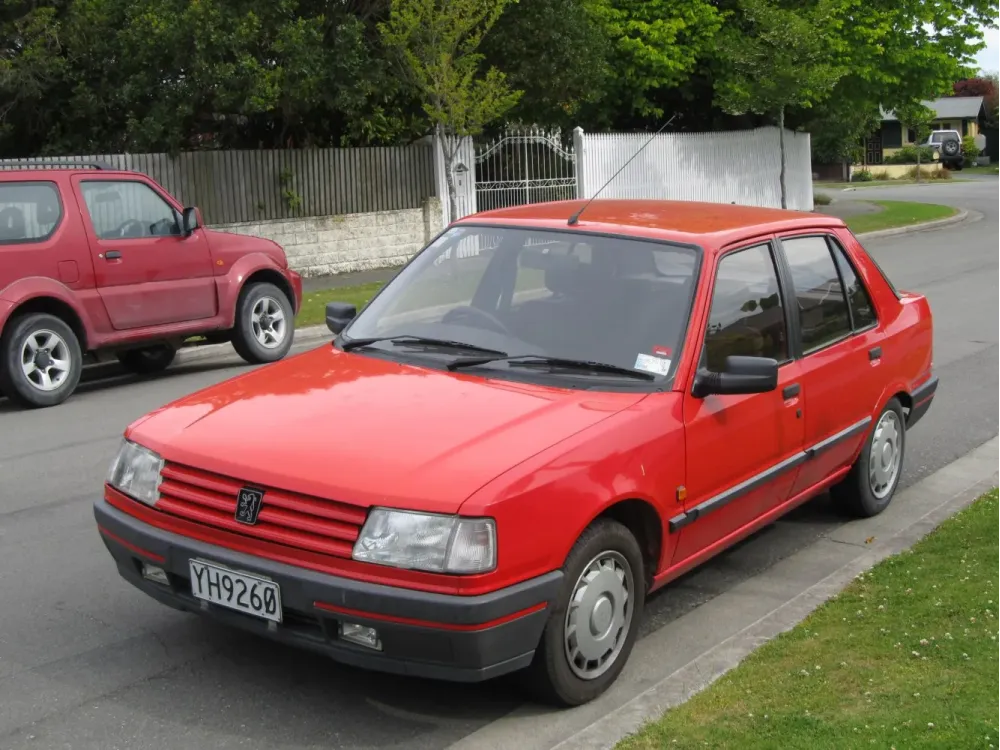

Peugeot 309 3C,3A facelift 1989 1.9 (109 Hp) Automatic
Overall Rating
Peugeot 309:
The Peugeot 309 is a small family car that was manufactured between 1985 and 1994 in France, England and Spain by PSA Peugeot Citroën. It was originally intended to be badged as a Talbot and, as development progressed, to be called the Talbot Arizona.
It was the replacement for the Talbot Horizon, which had started life as a Chrysler in Britain and a Simca in France, and was also being built in several guises for the market in America. In 1985, the PSA Group decided to discontinue the Talbot brand, with the last passenger vehicle branded as a Talbot to be launched being the Samba of 1981, and to market the car as a Peugeot instead....(Read more on Wikipedia)
3C,3A facelift 1989 Overview:
Peugeot 309 (3C,3A facelift 1989). With 160 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~9.3 l/100km). Weighing only 910 kg, it’s quite light. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 9.8 s). The top speed reaches 192 km/h. A compact car with a rear door that swings upward to provide access to the cargo area. Seating for 5 makes it ideal for daily use.
1.9 (109 Hp) Automatic Verdict:
Performance Verdict
Smooth power delivery, offering comfortable cruising, though the automatic gearbox can dull acceleration slightly.
Fuel Economy
Acceptable fuel economy for an automatic of its size and power, suitable for varied driving.
Pros and Cons:
Pros:
- • Engaging driving dynamics, especially GTI models
- • Practical and spacious for its class
- • Wide range of economical engine options (especially diesels)
- • Robust and generally reliable mechanicals
- • Strong classic car appeal for GTI variants
Cons:
- • Safety features are basic by modern standards
- • Interior quality and design can feel dated
- • Prone to rust in certain areas (common for era)
- • Parts availability can be challenging for specific components
- • Non-GTI models can feel underpowered by modern standards
Specifications:
Specifications are compared to those of the previous generation((3C,3A facelift 1989) 3-door: 1989 - 1993).
| General: | |
|---|---|
| Brand: | Peugeot |
| Model: | 309 |
| Generation: | 3C,3A facelift 1989 |
| Modification (Engine): | 1.9 (109 Hp) Automatic |
| Start of production: | 1990 |
| End of production: | 1993 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Hatchback |
| Seats: | 5 |
| Doors: | 3-5 |
| Engine: | |
|---|---|
| Power: | 109 Hp @ 6000 rpm. Same horsepower |
| Power per litre: | 57.2 Hp/l [1mm less] |
| Torque: | 160 Nm @ 3000 rpm. |
| Engine Model/Code: | DDZ XU9M More details about the engine DDZ XU9M |
| Engine displacement: | 1905 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Carburettor |
| Engine aspiration: | Naturally aspirated engine |
| Engine oil capacity: | 4 l |
| Coolant: | 7.5 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 83 mm mm |
| Piston Stroke: | 88 mm mm |
| Compression ratio: | 9.1:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 9.3 l/100 km |
| Fuel consumption (economy) - extra urban: | 5.5 l/100 km |
| Fuel consumption (economy) - combined: | 7 l/100 km |
| Acceleration 0 - 100 km/h: | 9.8 sec |
| Acceleration 0 - 62 mph: | 9.8 sec |
| Maximum speed: | 192 km/h |
| Weight-to-power ratio: | 8.3 kg/Hp, 119.8 Hp/tonne |
| Weight-to-torque ratio: | 5.7 kg/Nm, 175.8 Nm/tonne |
| Acceleration 0 - 60 mph: | 9.3 sec |
| Space: | |
|---|---|
| Kerb Weight: | 910 |
| Max. weight: | 1350 |
| Max load: | 440 |
| Trunk (boot) space - maximum: | 615 l |
| Trunk (boot) space - minimum: | 295 l |
| Fuel tank capacity: | 55 l |
| Size: | |
|---|---|
| Length: | 4050 mm mm [1mm less] |
| Width: | 1630 mm mm [2mm more] |
| Height: | 1380 mm mm [Same height.] |
| Wheelbase: | 2470 mm mm [1mm more] |
| Front track: | 1405 mm |
| Rear (Back) track: | 1380 mm |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 4 |
| Transmission type | Automatic |
| Front brakes | Disc [bad for performance and cooling.] |
| Rear brakes | Drum [bad for performance and cooling.] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 165/70 TR13 |
| Wheel rims size | 13 |
| Front suspension | Coil spring |
| Rear suspension | Torsion |
